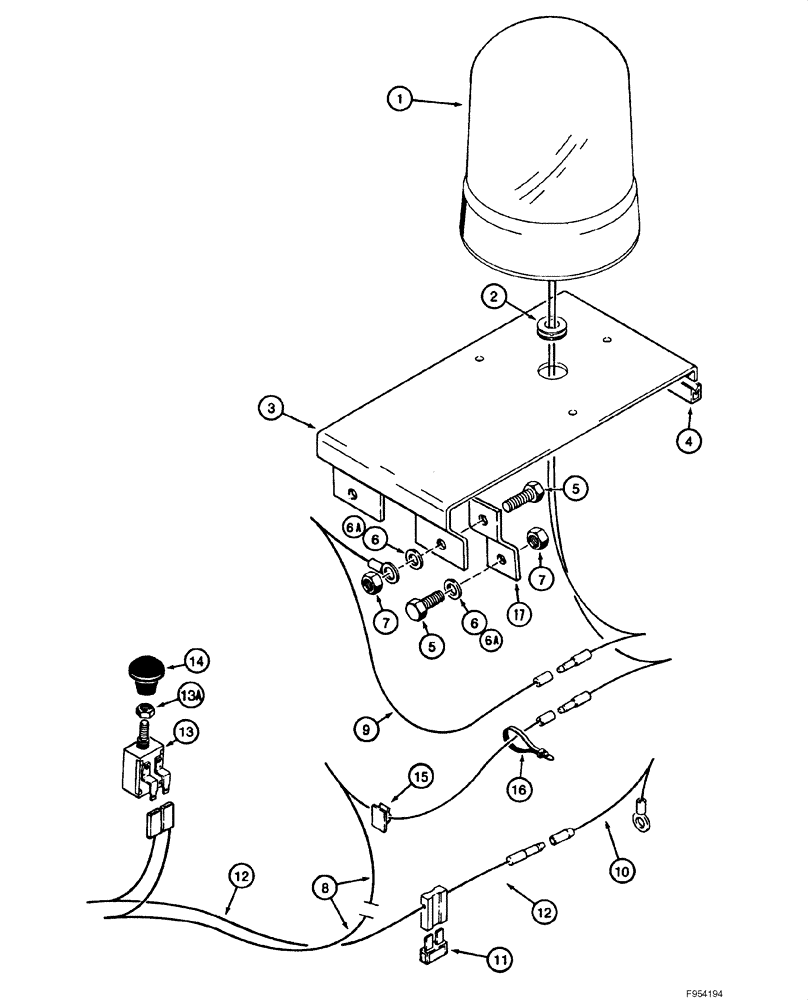

Запчасти Case IH 1840 (04-20) - ROTATING BEACON, (EUROPE), JAF0098065 - (04) - ELECTRICAL SYSTEMS

1

E99128

BEACON ROTATING

; Component Parts Not Serviced Separately

1шт.

2

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in; Replaces 49566

1шт.

3

109264A1

SUPPORT

Mounting; Beacon

1шт.

4

D60179

RUBBER STRIP

6-1/2 inch (165 mm); Cut From F42827

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(2-4)

2шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16"), If used

2шт.

6a

493-21033

LOCK WASHER,Int Tooth, 5/16"

5/16 in; If Used

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

(2-4)

2шт.

8

102332A1

ELECTRICAL WIRE

WIRE Beacon; Lamp Receptacle Inside Of Beacon; If Used

1шт.

8

142210A1

ELECTRICAL WIRE

WIRE Wire, Beacon To Switch; Lamp Receptacle Outside of Beacon; If Used

1шт.

9

102333A1

ELECTRICAL WIRE

WIRE Beacon To Ground

1шт.

10

102330A1

ELECTRICAL WIRE

WIRE Starter To Fuse

1шт.

11

A149800

FUSE,10 Amp

10 amp; Red

1шт.

12

102331A1

ELECTRICAL WIRE

WIRE Fuse To Switch

1шт.

13

D74330

SWITCH

Rotating Beacon; Incl. 13A

1шт.

13a

N7557

NUT

3/8 inch NF

1шт.

14

D95781

BUTTON

Lamp Switch; If Used

1шт.

14

108314A1

BUTTON

Lamp Switch With Symbol; If Used

1шт.

15

H439303

CLIP

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

17

109265A1

BRACKET

Mounting; Beacon; FOPS Models Only

2шт.

18

142212A1

SOCKET

Not Illustrated

1шт.

F42827

TRIM,2946.4mm L

116 inch (2946 mm)

1шт.
