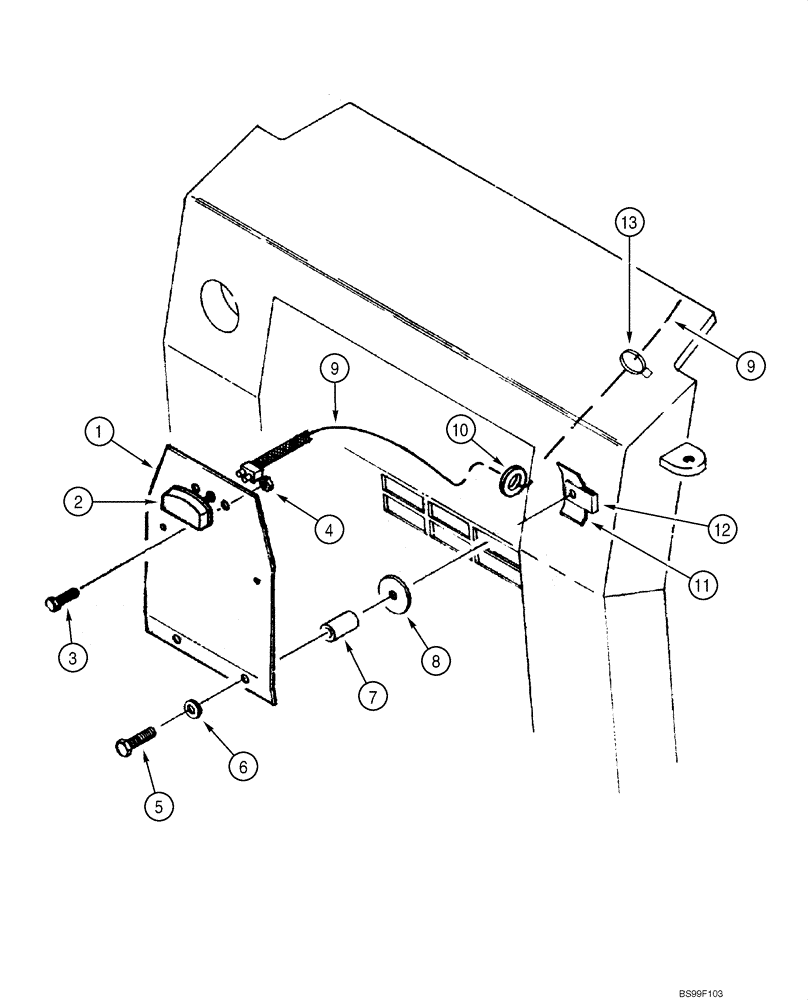

Запчасти Case IH 1840 (04-16A) - LAMP, LICENSE PLATE - MOUNTING (ITALIAN D.G.M.) (04) - ELECTRICAL SYSTEMS

1

189851A1

SUPPORT

1шт.

2

120229A1

LIGHT

License Plate

1шт.

3

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

4

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

No. 10

2шт.

5

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

7

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2шт.

8

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

2шт.

9

189594A1

HARNESS

License Plate

1шт.

10

248-2340

GROMMET,3/8" ID x 5/8" Groove Dia, Str Cut

1шт.

11

H45468

CLAMP

2шт.

12

H346650

NUT

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

3шт.
