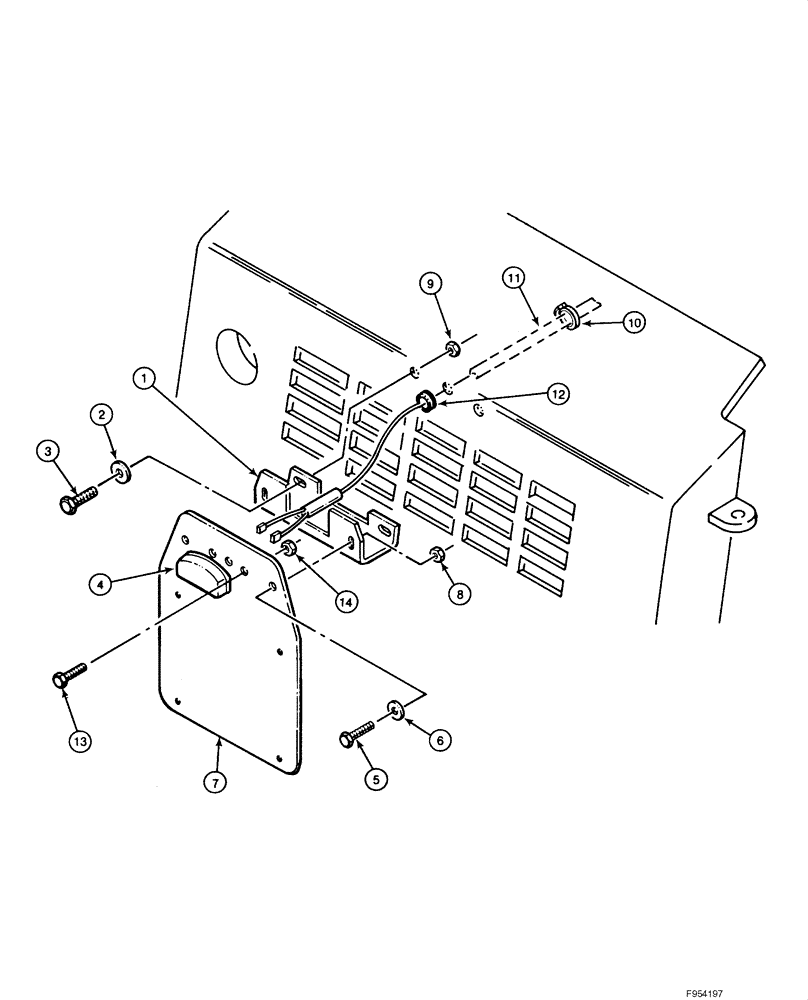

Запчасти Case IH 1840 (04-16) - LICENSE PLATE LAMP, (ITALIAN D.G.M.) (04) - ELECTRICAL SYSTEMS

1

112650A1

Bracket; License Plate; No Longer Available, See Figure 04-16A

1шт.

2

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

E134499

NUMBER PLATE LAMP

License Plate

1шт.

5

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

6

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

7

112651A1

Plate; License Mounting; No Longer Available, See Figure 04-16A

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

11

111128A1

HARNESS

Rear License Plate

1шт.

12

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in

1шт.

13

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

14

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

No. 10 NC

2шт.
