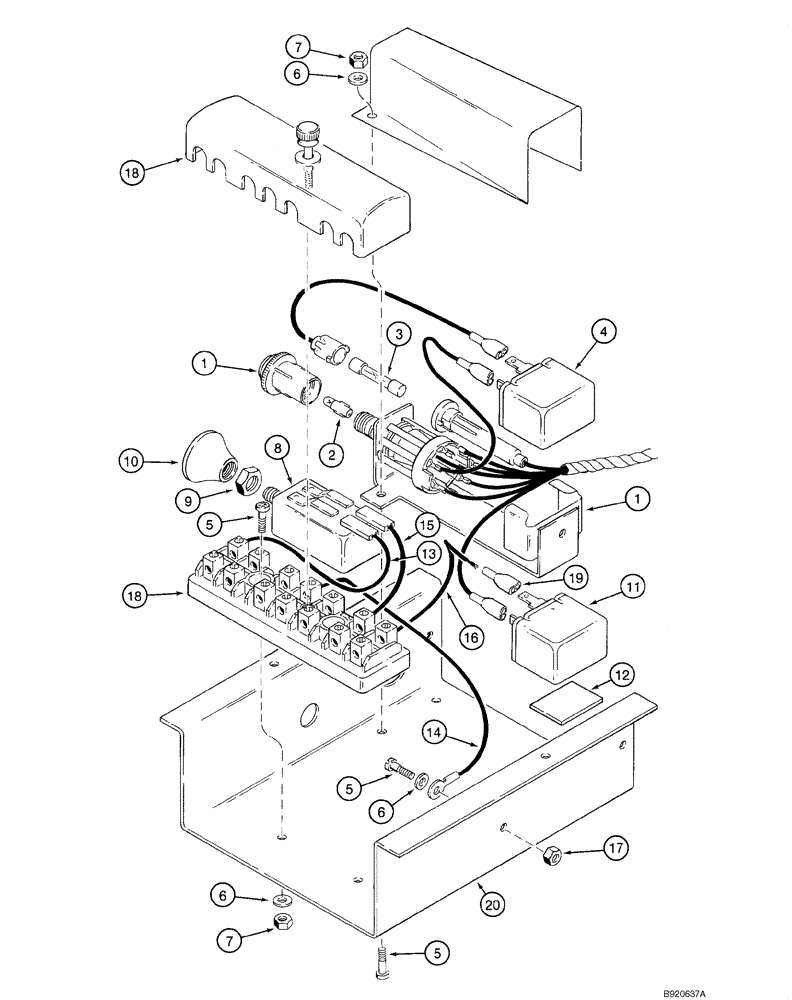

Запчасти Case IH 1840 (04-15) - ROAD LAMP SWITCH ASSEMBLY, (EUROPE), JAF0098065 - (04) - ELECTRICAL SYSTEMS

H675052

SWITCH ASSY

Road Lamps; Incl. 1 - 20; Not Available As An Assembly, Order Components Separately

1шт.

1

E20258

FLASHER SWITCH

Hazard Warning; Incl. 2 - 4

1шт.

2

1094378R1

BULB,J, 12V, 2W

Bulb, Hazard Flasher, Replaces E61396

1шт.

3

223-41

FUSE,35A

1шт.

4

E20439

FLASHER UNIT

Lamp

1шт.

5

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

5шт.

6

495-21019

WASHER,#8

5шт.

7

225-14108

NUT,#8-32

4шт.

8

D74330

SWITCH

Lamp; Incl. 9

1шт.

9

N7557

NUT

3/8 inch NF

1шт.

10

D95781

BUTTON

Lamp Switch; If Used

1шт.

10

108314A1

BUTTON

Lamp Switch With Symbol; If Used

1шт.

11

E20439

FLASHER UNIT

Lamp; Directional

1шт.

12

H439316

STRIP

1-1/2 x 1 in

1шт.

13

E99177

ELECTRICAL WIRE

WIRE Lamp Switch To Junction Box

1шт.

14

E99229

ELECTRICAL WIRE

WIRE Ground To Junction Box

1шт.

15

E99309

ELECTRICAL WIRE

WIRE Lamp Switch To Junction Box

1шт.

16

E20123

ELECTRICAL WIRE

WIRE Directional Flasher To Junction Box

1шт.

17

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

1шт.

18

E99239

JUNCTION BOX

Junction; Electrical; If Used

1шт.

18

322628A1

JUNCTION BOX

If Used

1шт.

19

223-95

TERMINAL CONNECTOR,Female, 14 - 16

14-16 wire size; Female

1шт.

20

H439162

COVER

Lamp Switches

1шт.
