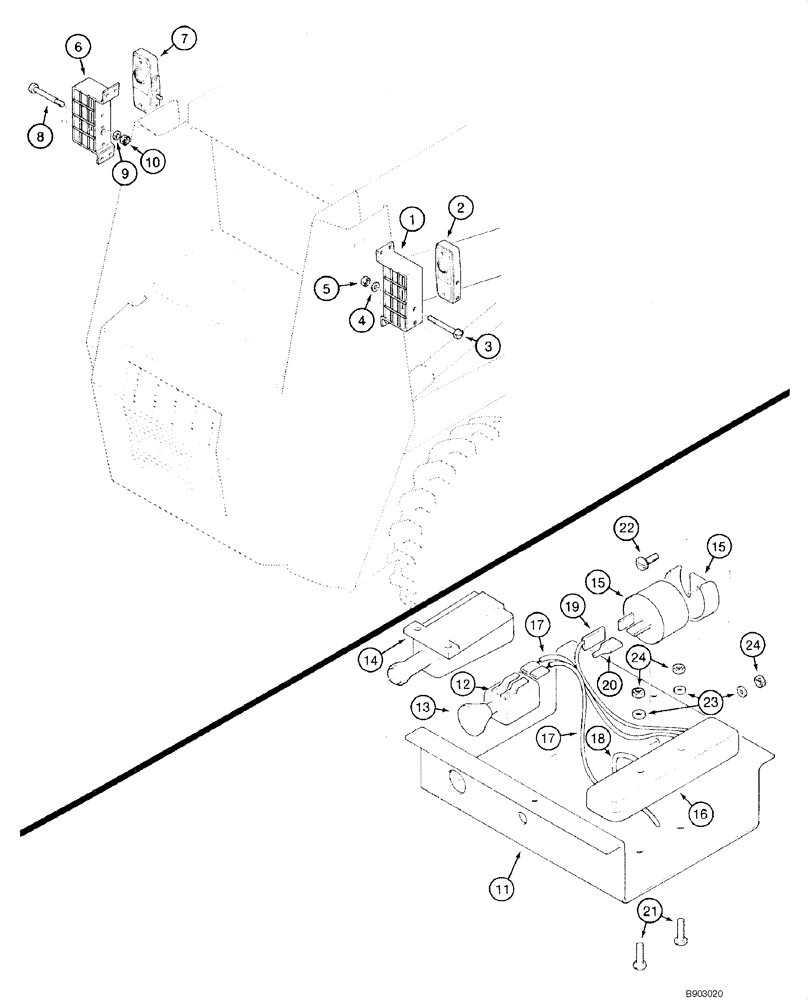

Запчасти Case IH 1840 (04-13) - ROAD LAMPS AND SWITCH ASSY, (EUROPE), - JAF0098065 (04) - ELECTRICAL SYSTEMS

EUROPEAN MODELS, - JAF0098065

1шт.

E20713

LIGHT ASSY.

Road; Incl. 1 - 5; Right Hand; No Longer Available, Order Components Separately

1шт.

1

E20712

BRACKET

Road Lamp; Right Hand

1шт.

2

E99149

LIGHT, WARNING

Signal; Right Hand

1шт.

Right Hand

1шт.

3

E99166

SCREW

5 - 0.8 x 90 mm

2шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

E20714

LIGHT ASSY.

Road; Incl. 6 - 10; Left Hand; No Longer Available, Order Components Separately

1шт.

6

E20711

BRACKET

Road Lamps; Left Hand

1шт.

7

E99149

LIGHT, WARNING

Signal; Right Hand

1шт.

8

E99166

SCREW

5 - 0.8 x 90 mm

2шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

10

825-1405

NUT,M5, Cl 8

2шт.

E20731

SWITCH

Road Lamp; Incl. 11 - 24

1шт.

11

H439162

COVER

Lamp Switches; Replaces E20672

1шт.

12

D74330

SWITCH

Road Lamp

1шт.

13

D95781

BUTTON

Lamp Switch

1шт.

14

E20258

FLASHER SWITCH

Hazard Warning

1шт.

15

E20439

FLASHER UNIT

Lamp

1шт.

16

E99239

JUNCTION BOX

Junction; Electrical; If Used

1шт.

16

322628A1

JUNCTION BOX

If Used

1шт.

17

E99177

ELECTRICAL WIRE

WIRE Lamp Switch To Junction Box

2шт.

18

E99299

ELECTRICAL WIRE

WIRE Ground

1шт.

19

E20725

ELECTRICAL WIRE

WIRE Flasher To Relay

1шт.

20

E20677

TERMINAL CONNECTOR

6.3 x 0.8 mm; Female

1шт.

21

E99167

SCREW

4 - 0.7 x 14 mm

2шт.

22

E20443

SCREW

4 - 0.7 x 10 mm

1шт.

23

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

3шт.

24

825-1404

NUT,M4, Cl 8

3шт.
