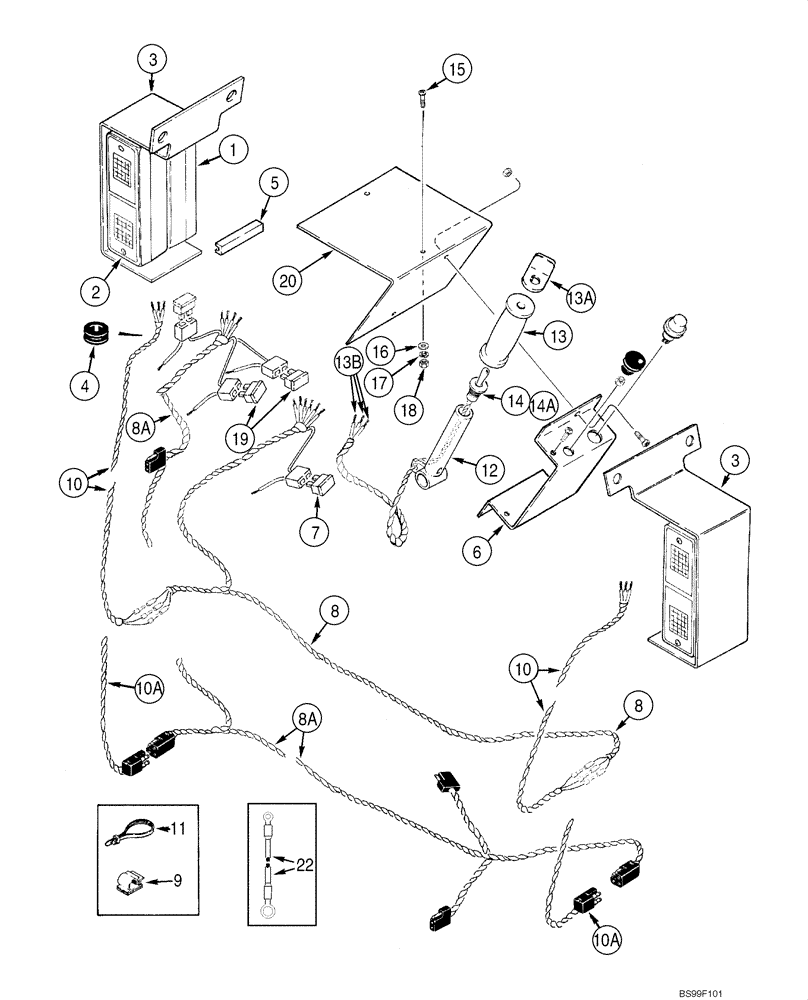

Запчасти Case IH 1840 (04-12A) - ROAD LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

E133215

TAIL LAMP

Front; See Figure 04-14

2шт.

2

E137174

LENS

Rear; See Figure 04-14

2шт.

3

H675065

BRACKET

2шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

5/8

2шт.

5

D55218

SEAL, GLASS,76mm L

76 mm (3 in); Cut From F42827

2шт.

6

336892A1

SWITCH ASSY

See Figure 04-15A

1шт.

7

A149802

FUSE

20 amp

1шт.

8

141421A1

HARNESS

Lamp

1шт.

9

H439303

CLIP

1шт.

10

111126A1

HARNESS

Rear

2шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

120225A2

LEVER ASSY.

Incl. 12 - 14A; Not Available As An Assembly; Order Components

1шт.

12

H439164

LEVER

1шт.

13

D133282

HANDLE

1шт.

13a

123676A1

SHIELD

1шт.

13b

E20680

TERMINAL CONNECTOR,Male

3шт.

177673A1

PRESSURE SWITCH

Incl. 14, 14A

1шт.

14

NSS

NOT SOLD SEPARAT

Switch, Selector

1шт.

14a

119135A1

BUSHING

1шт.

15

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

2шт.

16

495-21019

WASHER,#8

2шт.

17

492-11008

LOCK WASHER,#8

2шт.

18

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

6шт.

19

A149799

FUSE

7,5 amp

2шт.

21

226196A1

SLEEVE

Not Illustrated

1шт.

22

D134077

ELECTRICAL WIRE

WIRE Ground

1шт.
