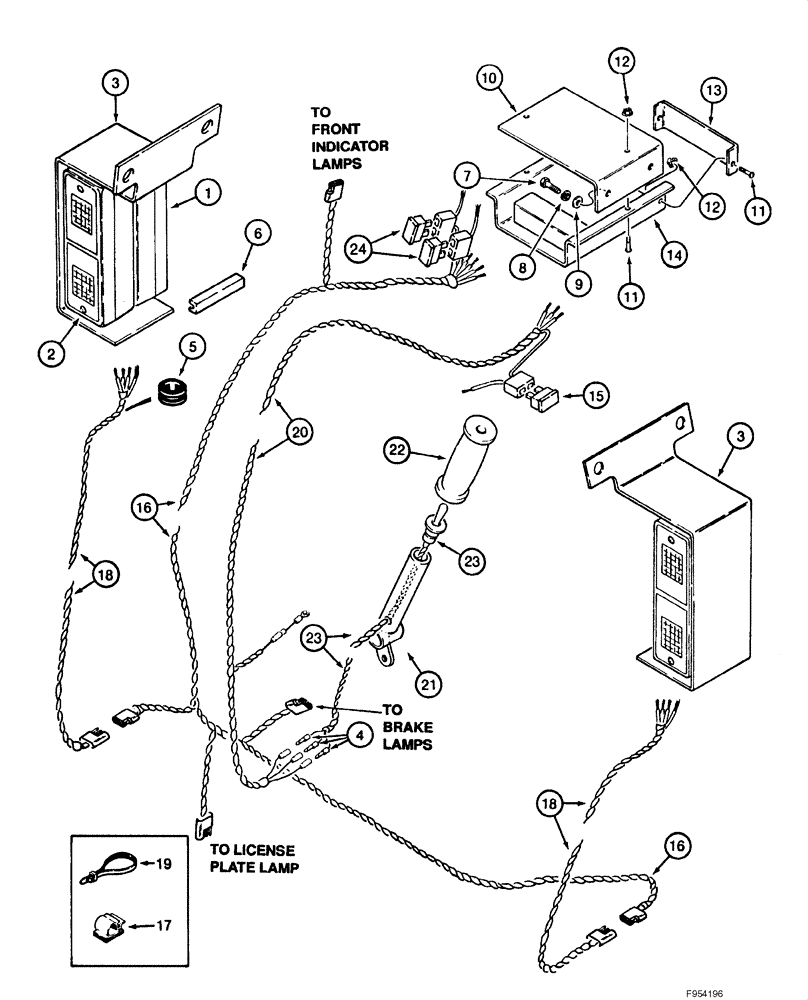

Запчасти Case IH 1840 (04-12) - ROAD LAMPS AND WIRING, (EUROPE), JAF0098065 - JAF0289363 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Lamp Assy; Road; Front; See Figure 04-14; Also See Figure 04-12A

2шт.

2

E137174

LENS

Rear; See Figure 04-14; Replaces E137162

2шт.

3

H675065

BRACKET

Lamp; Mounting

2шт.

4

E20680

TERMINAL CONNECTOR,Male

4 mm; ; No Longer Used, Replaced By 120225A1, REF 21 Male

3шт.

5

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in; Replaces 49566

2шт.

6

D55218

SEAL, GLASS,76mm L

3 inch (76 mm); Cut From F42827 bulk trim; Lower Edge Of Mounting Brackets

2шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16 NC x 1/2 in

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

10

104821A1

ADAPTER

Road Lamp Switch

1шт.

11

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

4шт.

12

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

4шт.

13

104823A1

COVER

Switch Bracket; If Used

1шт.

14

H675052

SWITCH ASSY

Road Lamps; Not Available As An Assembly, Order Component Parts Separately; See Figure 04-15

1шт.

15

A149800

FUSE,10 Amp

10 amp; Red

1шт.

16

141421A1

HARNESS

Switch To Road Lamps; Replaces H675168

1шт.

17

H439303

CLIP

Harness

1шт.

18

111126A1

HARNESS

Road Lamps; Rear; Replaces H439318 harness

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

20

116458A1

HARNESS

Front; Lever To Road Lamp Switch; Replaces H675167 harness

1шт.

21

120225A1

LEVER

Control, With Toggle; Replaces H439164

1шт.

22

D133282

HANDLE

Control Lever

1шт.

23

177673A1

PRESSURE SWITCH

Toggle; Direction Indicator; Incl. Wires; Replaces 101615A1

1шт.

24

A149799

FUSE

7-1/2 amp; Brown

2шт.

F42827

TRIM,2946.4mm L

116 inch (2946 mm)

1шт.

25

399983A1

KIT

Harness; Flasher; European Models; Not Illustrated; Incl. Instructions

1шт.
