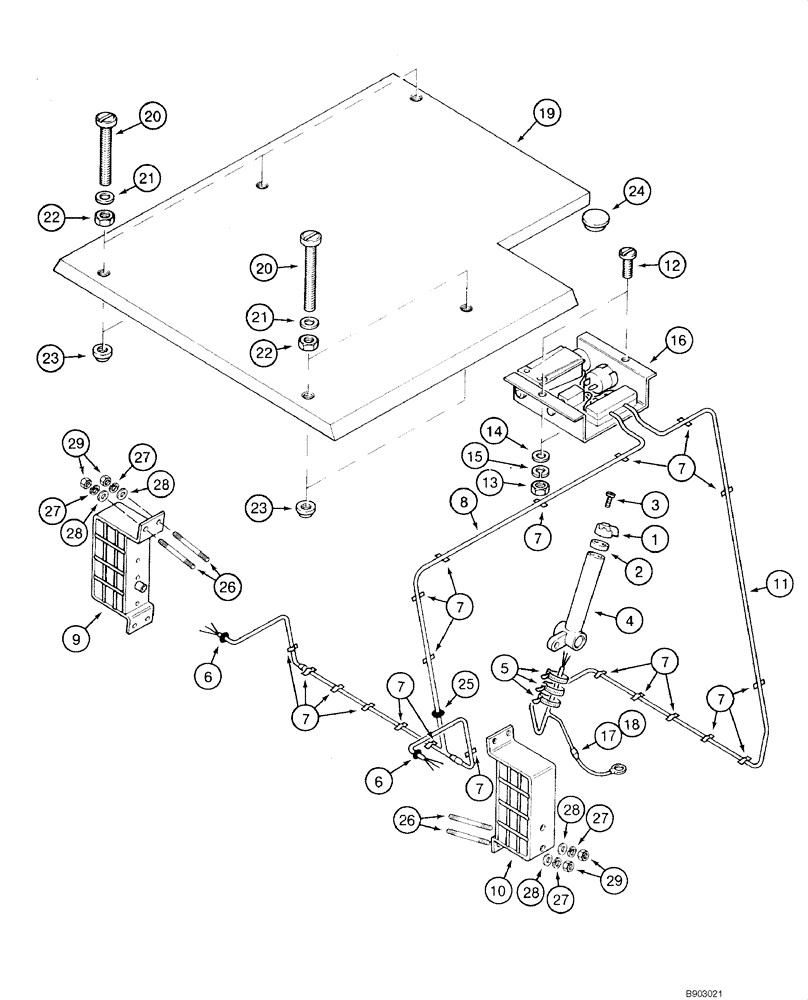

Запчасти Case IH 1840 (04-11) - ROAD LAMPS AND WIRING, (EUROPE), - JAF0098065 (04) - ELECTRICAL SYSTEMS

1

101615A1

PRESSURE SWITCH

1шт.

2

E99169

TERMINAL CONNECTOR

Switch To Lever

1шт.

3

E99168

SCREW

4 BA x 12

1шт.

4

D133283

LEVER

Control; Pump; See Figure 06-02, REF 2

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

6

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in; Replaces 49566 grommet

2шт.

7

E84910

CLIP

Harness

20шт.

8

E20724

HARNESS

Road Lamps; Rear

1шт.

9

E20714

LIGHT ASSY.

Road; Left Hand; See Figure 04-13; No Longer Available, Order Components Separately

1шт.

10

E20713

LIGHT ASSY.

Road; Right Hand; See Figure 04-13; No Longer Available, Order Components Separately

1шт.

11

E20715

CABLE

Switch Assy

1шт.

12

E99167

SCREW

4 - 0.7 x 14 mm

2шт.

13

825-1404

NUT,M4, Cl 8

2шт.

14

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.

15

892-11004

LOCK WASHER,M4

2шт.

16

E20731

SWITCH

Road Lamp; See Figure 04-13

1шт.

17

E20680

TERMINAL CONNECTOR,Male

4 mm; Male

6шт.

18

E20681

TERMINAL CONNECTOR

4 mm; Female

6шт.

19

E20730

TOP

1шт.

20

E20617

SCREW,Sl Pan Hd, M5 x 60mm, Cl 12.9

5 - 0.8 x 60 mm

5шт.

21

103777A1

SEALING WASHER

Replaces E20618

5шт.

22

825-1405

NUT,M5, Cl 8

5шт.

23

E99641

CAP

Bolt End Cover; Headliner Retainer

5шт.

24

E20619

PLUG

1/4 in

1шт.

25

E20682

GROMMET

1 in

1шт.

26

E99004

STUD

6 - 1.0 x 16 mm

8шт.

27

892-11006

LOCK WASHER,M6

8шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

29

825-1406

NUT,M6, Cl 8

8шт.
