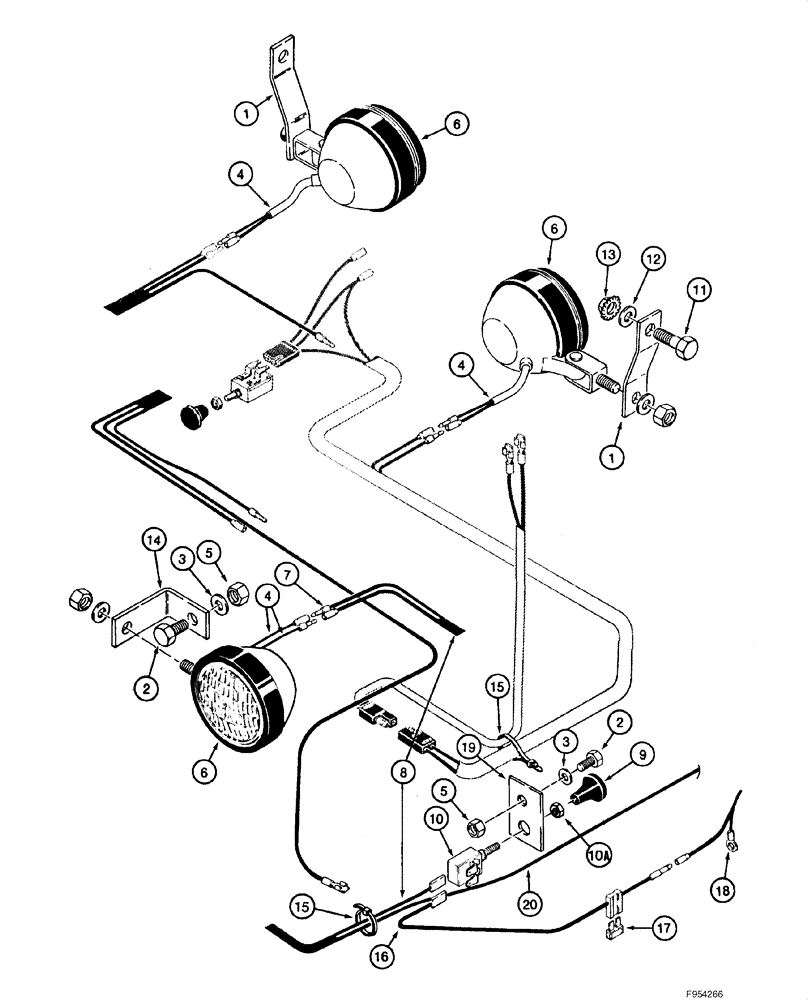

Запчасти Case IH 1840 (04-09) - ROAD LAMPS AND WIRING, (GERMAN TBG) (04) - ELECTRICAL SYSTEMS

1

116502A1

LUG

Mounting; Lamp

2шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

4

111159A1

HARNESS

Work Lamp Wiring Harness

3шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

6

120139A1

LAMP,Halogen, 12V, 55W, Clear

Road; See Figure 04-10A

3шт.

7

122182A1

ELECTRICAL WIRE

WIRE Ground; Tail Lamp

1шт.

8

102332A1

ELECTRICAL WIRE

WIRE Tail Lamp To Switch

1шт.

9

108314A1

BUTTON

Lamp Switch

1шт.

10

D74330

SWITCH

Lamp; See Figure 04-10A

1шт.

10a

225-14210

NUT,#10-32

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

116527A1

BRACKET

Mounting; Tail Lamp

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

16

102331A1

ELECTRICAL WIRE

WIRE Switch To Battery

1шт.

17

A149800

FUSE,10 Amp

10 amp; Red

1шт.

18

102330A1

ELECTRICAL WIRE

WIRE Fuse To Battery

1шт.

20

123900A1

ELECTRICAL WIRE

WIRE Main Harness To No. 6 Terminal In Road Lamp Box

1шт.
