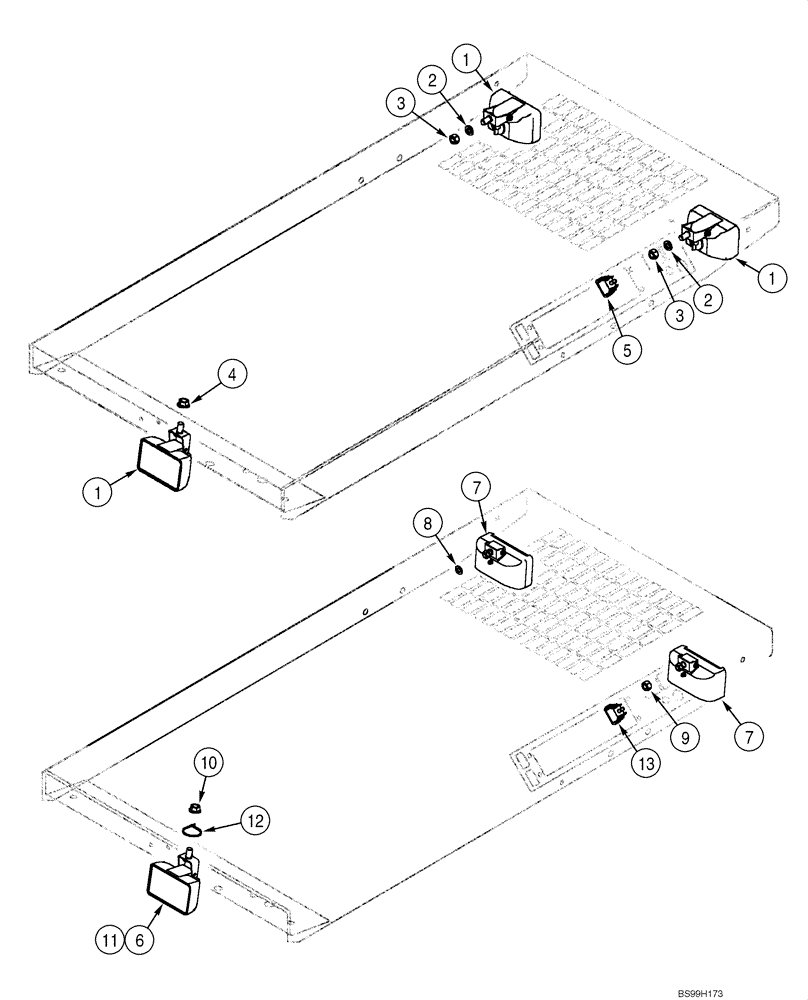

Запчасти Case IH 1840 (04-08A) - HARNESS - LAMPS, WORK, JAF0286785 - (04) - ELECTRICAL SYSTEMS

1

347277A1

LAMP, WORK

LIGHT, WORK Lamp Assy; North America And Europe

3шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

2шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

5

223836A1

LIGHT SWITCH

1шт.

H439303

CLIP

Not Illustrated

1шт.

6

347277A1

LAMP, WORK

LIGHT, WORK Lamp Assy; Europe Only

1шт.

7

297584A1

LIGHT

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

1шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

11

189908A1

COVER

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

1шт.

13

230099A1

SWITCH

Lamp; Rocker

1шт.
