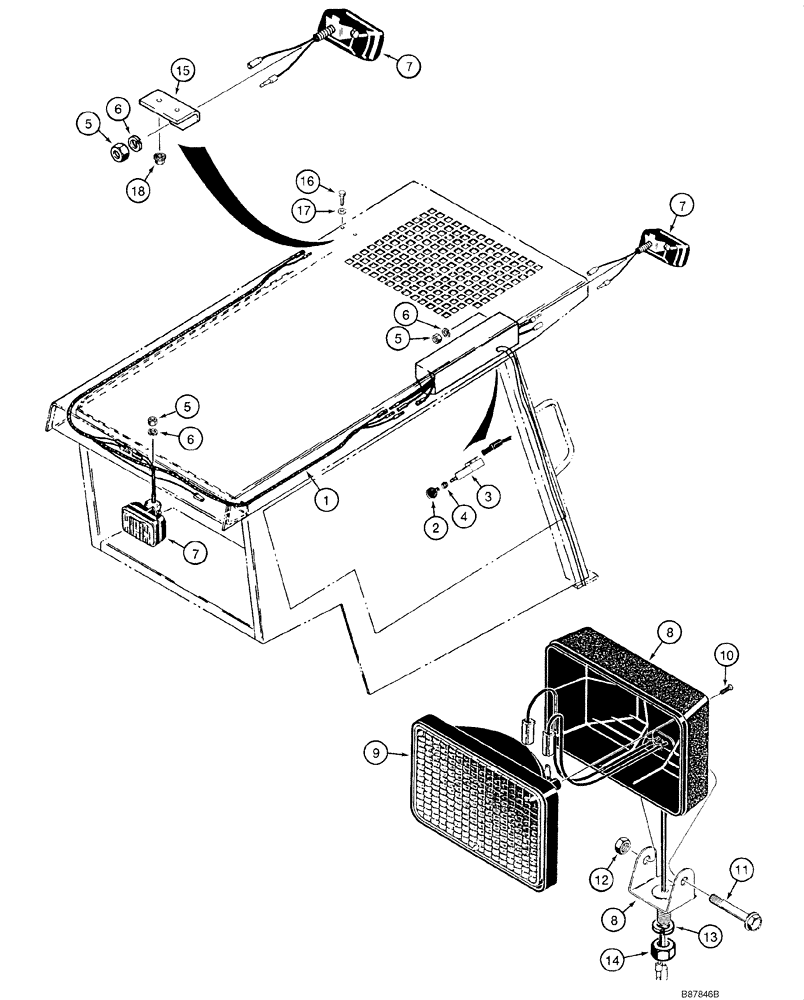

Запчасти Case IH 1840 (04-08) - HARNESS - LAMPS, WORK, (NORTH AMERICA) - JAF02867854 (04) - ELECTRICAL SYSTEMS

1

D139709

HARNESS

Horn And Lamp

1шт.

2

D95781

BUTTON

Lamp Switch ; If Used

1шт.

2

108314A1

BUTTON

Lamp Switch With Symbol; If Used

1шт.

3

D74330

SWITCH

Lamp; Incl. 4

1шт.

4

225-14210

NUT,#10-32

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

3шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

7

D126237

HEADLIGHT

12 volt; Incl. 8 - 12

3шт.

8

NSS

NOT SOLD SEPARAT

Body; Lamp; Incl. Mounting Bracket

1шт.

9

N13125

LAMP

1шт.

10

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

11

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

12

230-4215

NUT,5/16"-18, GA

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

1шт.

15

H435451

BRACKET

Lamp Mounting; If Used

1шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Use with Ref 15

2шт.

17

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), Use with Ref 15

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Use with Ref 15

2шт.
