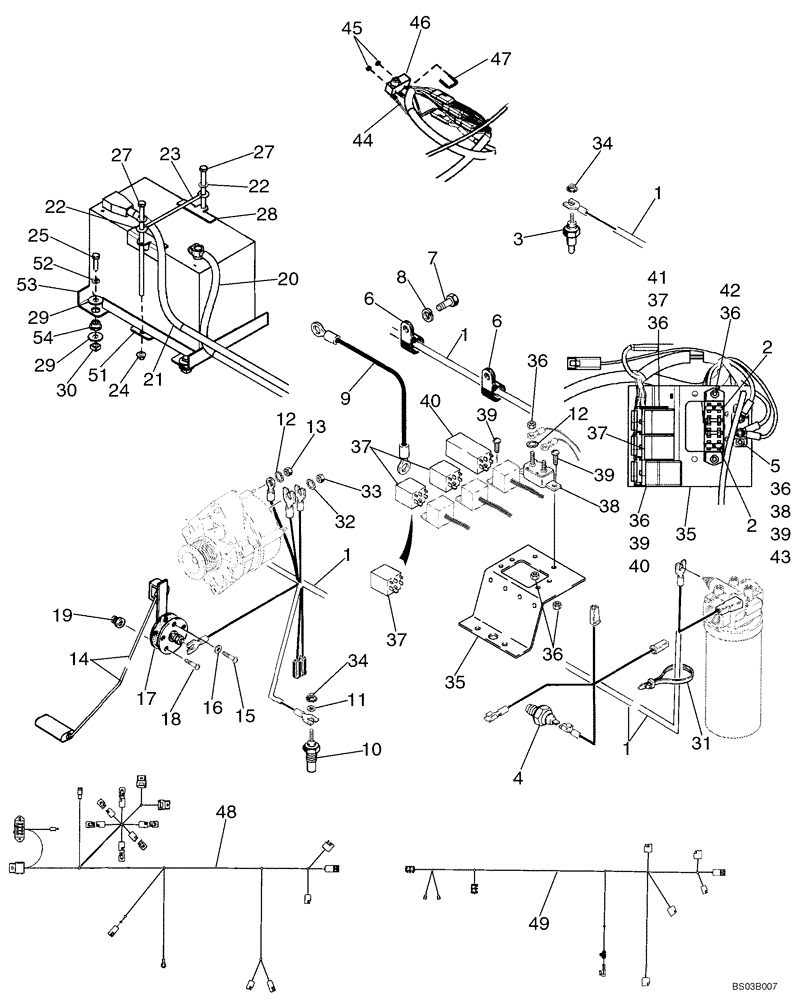

Запчасти Case IH 1840 (04-06A) - REAR HARNESS - BATTERY, JAF0286785 - (04) - ELECTRICAL SYSTEMS

North American Models, JAF0286785 -

1шт.

European Models, JAF0289364-

1шт.

1

334980A2

HARNESS

Rear; Includes 245435C1 Fuse Block; Models With Emissions Certified Engine; Replaces 334980A1

1шт.

245435C1

FUSE HOLDER

Included With Harness

1шт.

2

A149802

FUSE

20 amp; Yellow

1шт.

3

H439301

SWITCH

Transmission Temperature

1шт.

4

277016A1

PRESSURE SWITCH

Oil, M10

1шт.

5

247333A1

CAP

Used With A22877

2шт.

6

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

Replaces 515-22190

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

8

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1/2; Replaces 515-23143

2шт.

9

D87572

ELECTRICAL WIRE

WIRE Ground

1шт.

10

1983238C1

SENSOR,1/2" - 14

Engine Cooling

1шт.

11

195-513

WASHER,#10

7/32 x 1/2 x 3/64; If Used

1шт.

12

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

13

825-1405

NUT,M5, Cl 8

1шт.

14

426332A1

SENDER UNIT

SENDER Fuel Level; Replaces D125062

1шт.

15

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

No. 10 NF x 3/4

1шт.

16

D83885

WASHER

1шт.

17

528359R4

GASKET,3.05mm Thk

Replaces 104812C3

1шт.

18

H435859

SCREW,#10 - 32 x 3/4"

4шт.

19

H435860

INSERT

5шт.

20

314322A1

CABLE ASSY.

Battery; Negative

1шт.

21

314241A1

CABLE ASSY.

Battery; Positive

1шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

23

D135073

BRACKET

1шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

26

BMF31E

DRY BATTERY

12V

1шт.

27

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

2шт.

28

D125079

BRACKET

Battery Hold Down

1шт.

29

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64")

8шт.

30

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

1шт.

32

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

33

825-1408

NUT,M8, Cl 8

1шт.

34

193-1000

NUT,Keps, w/LW,#10-32

1шт.

35

331977A1

SUPPORT

1шт.

36

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

No. 10

3шт.

37

D128310

RELAY

30 amp

2шт.

37a

314451A1

RELAY

45 amp; Heavy Duty; If Used

1шт.

38

303886A1

BREAKER

40 Amp

1шт.

38

A22877

BREAKER,40A

40 Amp; Replaces 303886A1

1шт.

39

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2-5шт.

40

300855A1

RELAY

Sealed Time Delay

1шт.

41

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2-5шт.

42

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

43

225-14210

NUT,#10-32

Used with A22877

2шт.

43

225-14210

NUT,#10-32

Used with 303886A1

2шт.

44

341169A1

HARNESS

Seat Bar Switch

1шт.

45

193-1003

NUT,Keps, w/LW,#6-32

2шт.

46

H435820

SWITCH

Neutral Start; Incl. Hardware

1шт.

47

H435814

U-BOLT

1шт.

48

373319A1

HARNESS

Chassis Options; European Models

1шт.

49

373320A1

HARNESS

Cab Options; European Models

1шт.

50

H439303

CLIP

Harness; Not Illustrated

1шт.

51

H435275

SPACER

Battery Tray

1шт.

52

492-11038

LOCK WASHER,3/8"

4шт.

53

H437552

SUPPORT

3 mm; Battery Tray

1шт.

54

H438341

O-RING

Battery Tray

4шт.

408597A1

KIT

Incl. 35, 36, 39; Also Incl. 55 - 61, Not Illustrated; Relay Relocation; Mount Relay Bracket To Top Of Brake Valve Bracket; If Used

1шт.

55

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

56

H426767

WASHER

2шт.

57

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

58

407944A1

HARNESS

Relay Jumper

1шт.

59

411506A1

COVER

1шт.

60

411559A1

CONNECTOR, ELEC

CONNECTOR

10шт.

61

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

3шт.
