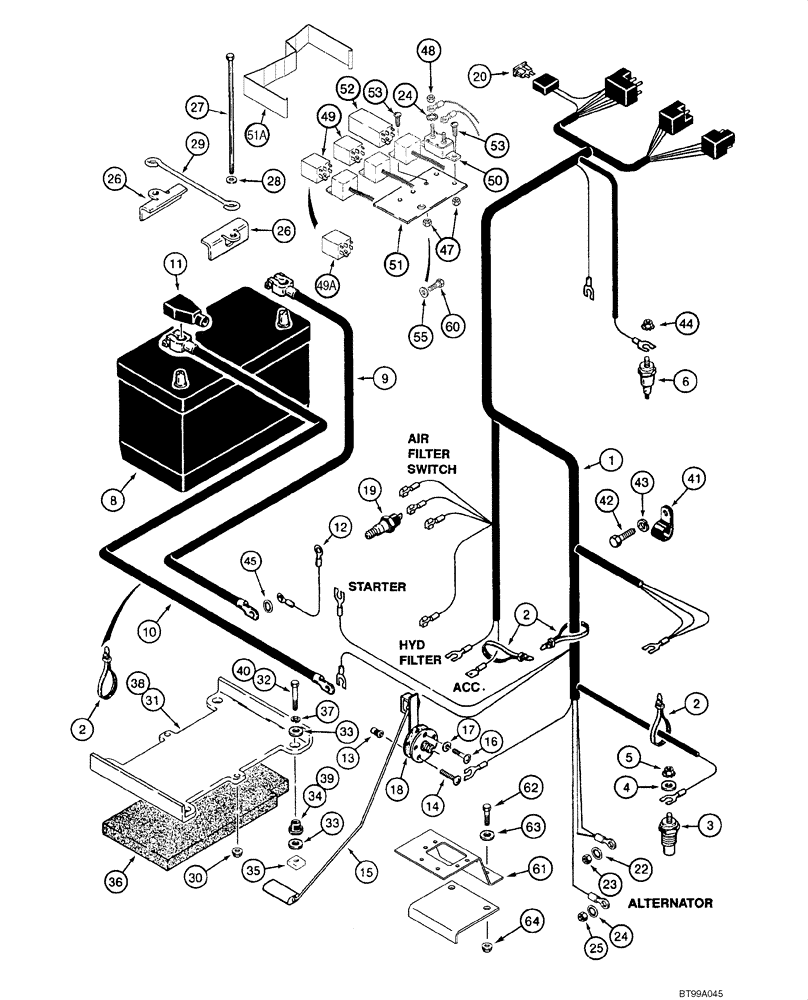

Запчасти Case IH 1840 (04-06) - REAR HARNESS - BATTERY, - JAF0286784 (04) - ELECTRICAL SYSTEMS

North American Models, - JAF0286784

1шт.

European Models, - JAF0289363

1шт.

1

E20943

HARNESS

Rear; European Models, - JAF0098065

1шт.

1

H436078

HARNESS

Rear; European Models, JAF0098065 - ; North American Models Without Emissions Certified Engine

1шт.

1a

294065A3

HARNESS

Rear; Replaces 294065A2; Used With Emissions Certified Engine With Fuel Injection Pump J933090, See Figure 03-07; Not Illustrated

1шт.

1b

333577A1

HARNESS

Rear; Used With Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-08; Not Illustrated

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

3

1983238C1

SENSOR,1/2" - 14

Incl. 4, 5; Engine Coolant Temperature; Replaces A154283

1шт.

4

195-513

WASHER,#10

7/32 x 1/2 x 3/64 in

1шт.

5

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

6

H439301

SWITCH

Transmission Temperature; Replaces D132280

1шт.

8

BMF31E

DRY BATTERY

12V; Service Replacement; North American Models

1шт.

8

91517C1

BATTERY, WET

BATTERY WET 12 volt; European Models

1шт.

9

D126897

CABLE

38 inch (965 mm); Battery; Negative; North American Models, - JAF0066758; European Models, - JAF0098065

1шт.

9

H437801

CABLE

Battery; Negative; North American Models, JAF0066758 - ; European Models, JAF0098065 - ; Models Without Emissions Certified Engine

1шт.

9

314322A1

CABLE ASSY.

Battery; Negative; Used With Emissions Certified Engine With Fuel Injection Pump J933090, J935679; Not Illustrated

1шт.

10

D126896

CABLE

58 inch (1475 mm); Battery; Positive; Models Without Emissions Certified Engine

1шт.

10

314241A1

CABLE ASSY.

Incl. 11; Battery; Positive; Used With Emissions Certified Engine With Fuel Injection Pump J933090, J935679

1шт.

11

383619R1

COVER

Positive Battery Cable

1шт.

12

D87572

ELECTRICAL WIRE

WIRE Engine To Frame

1шт.

13

H435860

INSERT

5шт.

14

H435859

SCREW,#10 - 32 x 3/4"

4шт.

15

426332A1

SENDER UNIT

SENDER Fuel Level; Replaces D125062

1шт.

16

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

10 NF x 3/4 inch

1шт.

17

D83885

WASHER

1шт.

18

528359R4

GASKET,3.05mm Thk

Fuel Level Sender; Replaces 104812C3

1шт.

19

A162297

SWITCH

SWITCH - Oil Pressure

1шт.

250838A1

CONNECTOR, ELEC

CONNECTOR Used With A162297

1шт.

19

277016A1

PRESSURE SWITCH

Oil, Replaces A162297; Not Illustrated

1шт.

20

A149804

FUSE

30 amp; Light Green

1шт.

22

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

23

825-1408

NUT,M8, Cl 8

1шт.

24

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

25

825-1405

NUT,M5, Cl 8

1шт.

26

D125079

BRACKET

Battery Hold-Down

2шт.

27

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

3/8 NC x 9-1/2 in

2шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

29

D135073

BRACKET

Battery Hold-Down

1шт.

30

231-5146

FLANGE NUT,3/8"-16

2шт.

31

H435259

TRAY

8 mm thick; No Longer Available, Order REF 38, 39

1шт.

32

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Use with Ref 31 Only

4шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

33

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64")

8шт.

34

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

Battery Tray; Use With REF 31 Only

4шт.

35

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

36

H435275

SPACER

Battery Tray

1шт.

37

492-11038

LOCK WASHER,3/8"

4шт.

38

H437552

SUPPORT

3 mm thick; Battery Tray

1шт.

39

H438341

O-RING

Battery Tray; Use With REF 38 Only

4шт.

40

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Use With REF 38 Only

2шт.

41

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

42

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

43

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

44

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

45

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

46

291241A1

HARNESS

Seat Switch; Used With Emissions Certified Engine With Fuel Injection Pump J933090, J935679; Not Illustrated

1шт.

47

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

No. 10 NC; Used With Emissions Certified Engine With Fuel Injection Pump J933090, J935679

1шт.

48

230-42409

NUT,#10-24, GA

No. 10 NF; Used With Emissions Certified Engine With Fuel Injection Pump J933090

3шт.

49

D128310

RELAY

30 amp; If Used; Used With Emissions Certified Engine With Fuel Injection Pump J933090

2шт.

49a

314451A1

RELAY

45 amp; If Used; Used With Emissions Certified Engine With Fuel Injection Pump J933090

1шт.

50

303886A1

BREAKER

Used With Emissions Certified Engine With Fuel Injection Pump J933090; Replaces A22877

1шт.

51

300455A3

SUPPORT

Electrical Mounting; Used With Emissions Certified Engine With Fuel Injection Pump J933090

1шт.

51a

315648A1

CLIP,ELECTRICAL

Relay; Used With Emissions Certified Engine With Fuel Injection Pump J933090

1шт.

52

300855A1

RELAY

Time Delay; Used With Emissions Certified Engine With Fuel Injection Pump J933090, J935679

1шт.

53

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

Used with Emissions Certified Engine with Fuel Injection Pump J933090, J935679

1шт.

54

H439303

CLIP

Harmess; Used With Emissions Certified Engine With Fuel Injection Pump J933090; Not Illustrated

1шт.

55

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Used with Emissions Certified Engine with Fuel Injection Pump J933090

1шт.

56

H435820

SWITCH

Neutral Start; Incl. Terminal Hardware; Used With Emissions Certified Engine With Fuel Injection Pump J933090, J935679; Not Illustrated

1шт.

57

H435814

U-BOLT

Switch Mounting; Used With Emissions Certified Engine With Fuel Injection Pump J933090, J935679; Not Illustrated

1шт.

58

193-1003

NUT,Keps, w/LW,#6-32

Used with Emissions Certified Engine With Fuel Injection Pump J933090, J935679; Not Illustrated

2шт.

59

H436183

CONNECTOR, ELEC

CONNECTOR Used With Emissions Certified Engine With Fuel Injection Pump J933090, J935679; Not Illustrated

1шт.

60

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Used with Emissions Certified Engine with Fuel Injection Pump J933090

1шт.

61

331977A1

SUPPORT

Electrical Mounting; Used With Emissions Certified Engine With Fuel Injection Pump J935679

1шт.

62

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used with Emissions Certified Engine with Fuel Injection Pump J935679

2шт.

63

H426767

WASHER

9/32 x 5/8 x 3/64 in; Used With Emissions Certified Engine With Fuel Injection Pump J935679

2шт.

64

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Used with Emissions Certified Engine with Fuel Injection Pump J935679

2шт.
