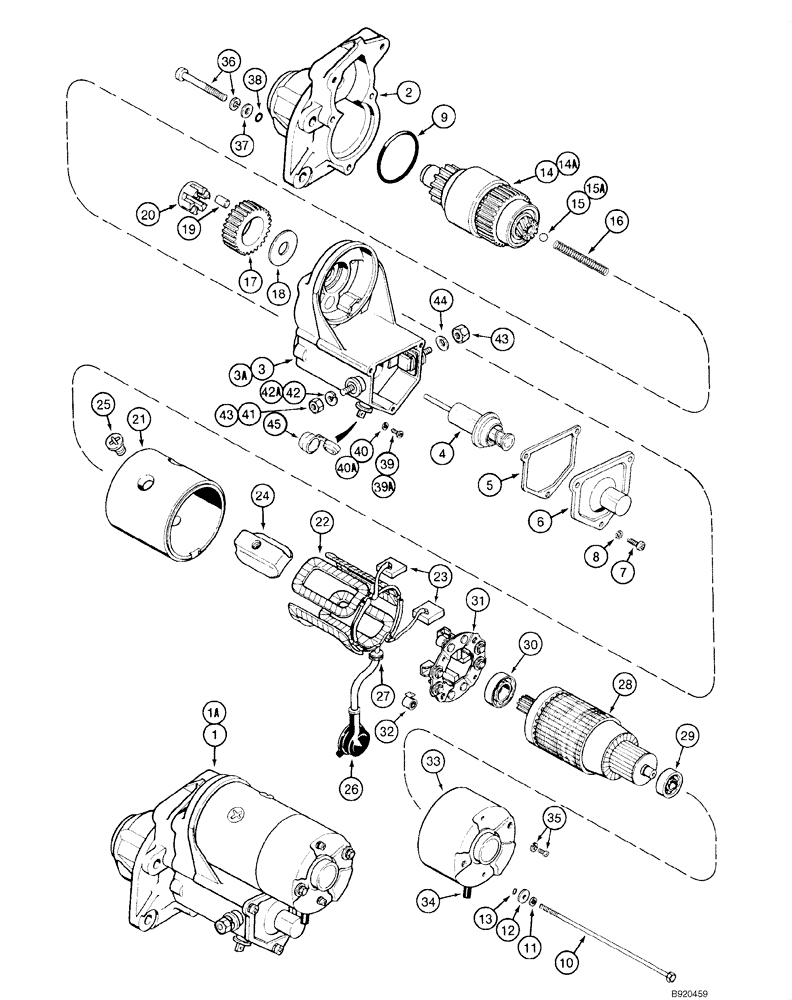

Запчасти Case IH 1840 (04-03) - STARTER (04) - ELECTRICAL SYSTEMS

1

A170746

STARTING MOTOR

New; Incl. 1 - 45; Nippondenso No. 128000-0210; No Longer Available, See 1987559C1, REF 1A

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN A170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

AR170746

STARTING MOTOR

Remanufactured; North America Only; No Longer Available, See 1987559C1, REF 1A

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN AR170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

AC170746

CORE-STARTER

Return Number

1шт.

1a

1987559C1

STARTING MOTOR

Replaced A170756; No Longer Used, Order 86982709; See Figure 04-03A

1шт.

1a

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER, 12 volt 2.5KW

1шт.

1a

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

2

A46948

HOUSING

Drive End

1шт.

3

142324A1

IGNITION SWITCH

Magnetic; Use On A170746

1шт.

3a

104588A1

SOLENOID

Magnetic; Incl. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

Solenoid; Switch

1шт.

5

NSS

NOT SOLD SEPARAT

Gasket; Solenoid Cover

1шт.

6

NSS

NOT SOLD SEPARAT

Cover; Solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

Screw; Cover To Switch

3шт.

8

NSS

NOT SOLD SEPARAT

Washer; Cover Screw

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

Switch To Housing

1шт.

A47243

BOLT

Incl. 10 - 13

2шт.

10

A47128

BOLT

Starter

1шт.

11

892-11006

LOCK WASHER,M6

1шт.

12

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

13

A47127

O-RING

1шт.

14

A52396

DRIVE

Replaces A47231

1шт.

14a

104587A1

CLUTCH

1шт.

15

211-209

BALL

11/32 inch, grade 24; Use On A170746

1шт.

15a

211-1311

BALL,11/32" Dia

grade 200; Use on 1987559C1

1шт.

16

A47232

SPRING

2-13/16 inch free length

1шт.

17

A47233

GEAR

Idler

1шт.

18

A47234

WASHER

Thrust

1шт.

19

A47235

ROLLER BEARING

Pinion Bearing

5шт.

20

A47236

RETAINER

Roller Bearing

1шт.

A47240

HOUSING

Incl. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

Housing; Starter

1шт.

22

NSS

NOT SOLD SEPARAT

Coil; Field

1шт.

23

NSS

NOT SOLD SEPARAT

Brushes; Starter

2шт.

24

NSS

NOT SOLD SEPARAT

Shoe; Pole

4шт.

25

NSS

NOT SOLD SEPARAT

Screw; Pole Shoes

4шт.

26

NSS

NOT SOLD SEPARAT

Boot; Magnetic Switch Terminal

1шт.

27

A47241

PLATE

1шт.

28

A47242

ARMATURE

Assy; Starter; Incl. 29, 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Commutator End, Replaces A47248

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

Drive End

1шт.

31

A47239

HOLDER

Brush; Incl. 32

1шт.

32

A47249

SPRING

Brush Tension

4шт.

33

A47237

FRAME

Commutator End

1шт.

34

A47238

COVER

End Frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

Incl. Washer; Brush Retaining

2шт.

A47230

BOLT

Incl. 36 - 38; Commutator End Cover To Drive End Housing

3шт.

36

A47129

CAPTIVE WASHER SCREW

Incl. Washer

1шт.

37

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16"), If used

1шт.

37

195-2015

WASHER

1/4 x 1-3/4 x 1/16 in; If Used

1шт.

38

A47130

O-RING

Bolt Seal

1шт.

39

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

Use on A170746

1шт.

39a

A46950

SCREW,M5 x 0.8 x 0.8mm

Use On 1987559C1

1шт.

40

493-21017

LOCK WASHER,Int Tooth, #8

Use on A170746

1шт.

40a

892-11005

LOCK WASHER,M5

Use on 1987559C1

1шт.

41

425-146

JAM NUT,3/8" - 16, Gr 5

Battery Terminal; Use On A170746

1шт.

42

492-11038

LOCK WASHER,3/8"

Use on A170746

1шт.

42a

892-11010

LOCK WASHER,M10

Use on 1987559C1

1шт.

43

825-1410

NUT,M10, Cl 8

Field Coil Terminal; Use (1) On A170746; Use (2) On 1987559C1

1-2шт.

44

A10454

WAVE WASHER

Field Coil Terminal

1шт.

45

104589A1

BUSHING

Insulation; Use On 1987559C1

1шт.
