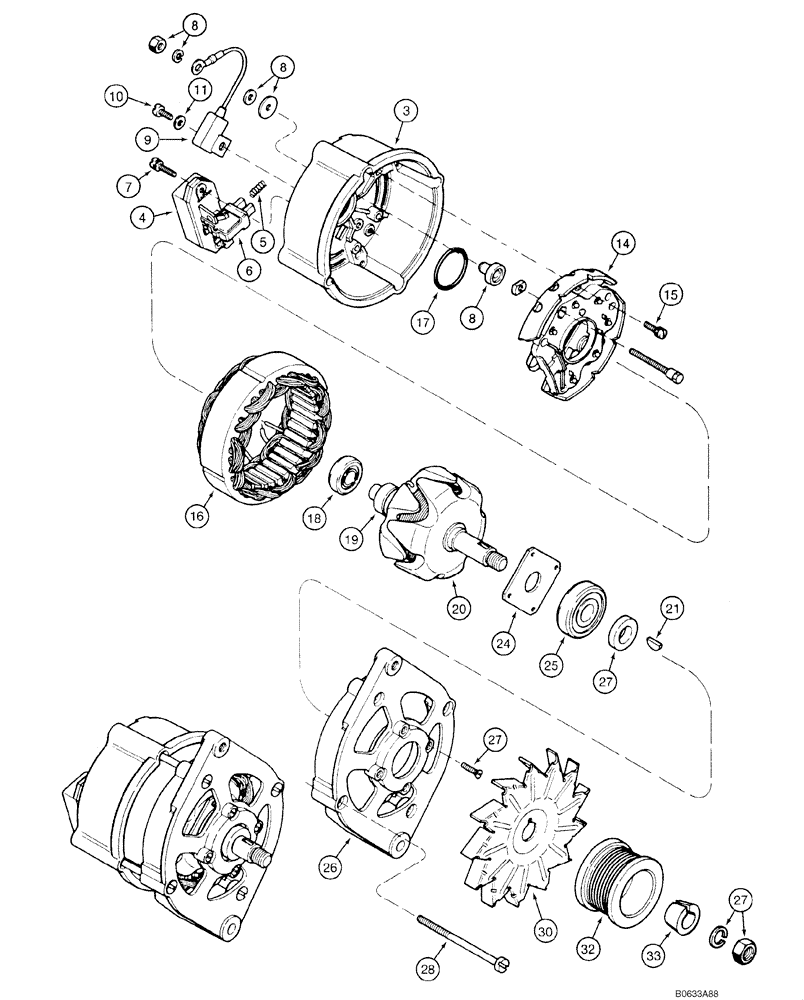

Запчасти Case IH 1840 (04-01) - ALTERNATOR ASSEMBLY, - JAF0066222 (04) - ELECTRICAL SYSTEMS

A186125

ALTERNATOR

65 amp; Incl. 3 - 28; - JAF0066222; No Longer Available, Order A187873; See Figure Figure 04-02 and Figure 04-04, REF 12-16

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

3

A186187

HOUSING

Collector; Ring End

1шт.

4

A186189

REGULATOR

Voltage; Incl. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

2шт.

6

NSS

NOT SOLD SEPARAT

Brush Assembly; Alternator

1шт.

7

A186194

SCREW,M4 x 18mm

2шт.

8

3079135R1

TERMINAL CONNECTOR

Terminal

1шт.

9

A186195

CAPACITOR

Alternator

1шт.

10

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

1шт.

11

A186196

WASHER

1шт.

14

A186197

RECTIFIER

Incl. Hardware

1шт.

15

A186188

SCREW

Incl. Washer

3шт.

16

A186192

STATOR

Alternator

1шт.

17

3079386R1

O-RING

Bearing

1шт.

18

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

1шт.

19

A186185

RING

Collector

1шт.

20

A186184

ROTOR

Alternator

1шт.

21

NSS

NOT SOLD SEPARAT

Key; Rotor; If Used; Order 3078897R1, REF 27

1шт.

24

3078379R1

COVER

Retaining

1шт.

25

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

Drive End

1шт.

26

A186182

HOUSING

Drive End

1шт.

27

3078897R1

SET OF PARTS

Rotor Retaining; See Figure Figure 04-02, REF 19-23

1шт.

28

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

30

221425R1

FAN

Alternator

1шт.

32

J908560

PULLEY

Drive

1шт.

33

J908563

RETAINER

Pulley

1шт.
