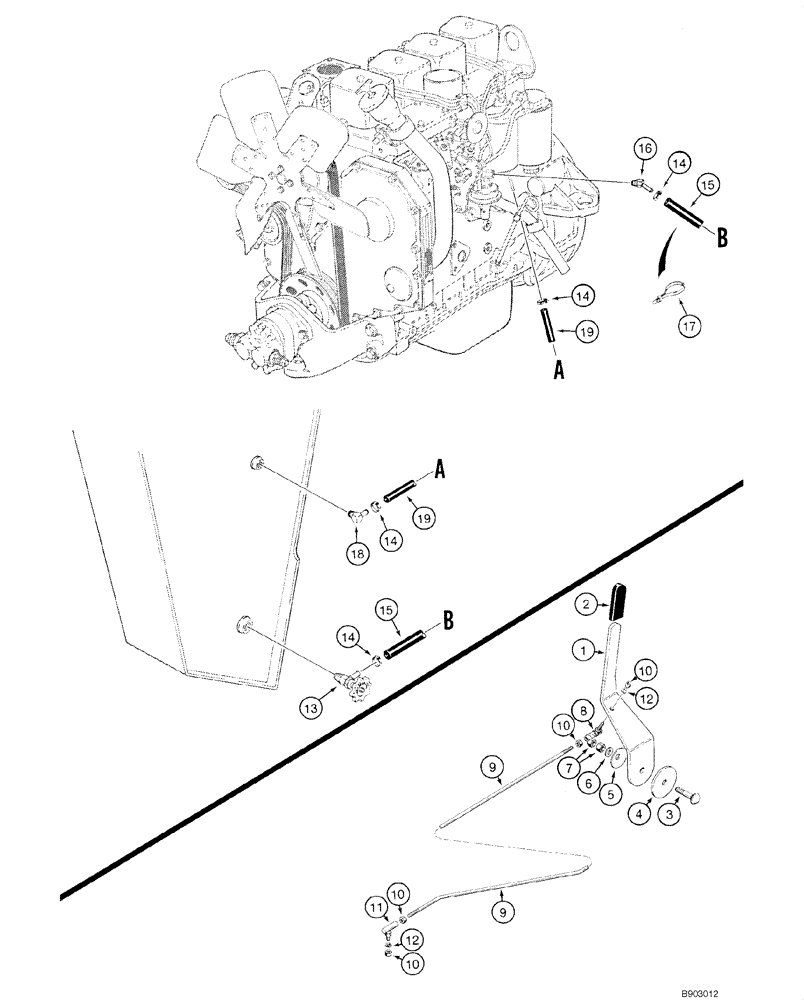

Запчасти Case IH 1840 (03-13) - THROTTLE CONTROL - FUEL LINES (03) - FUEL SYSTEM

1

H435848

HANDLE

Throttle Control

1шт.

2

D126613

HANDLE

Vinyl

1шт.

3

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 NC x 1-3/4 in; North American Models

1шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

European Models

1шт.

4

1342374C1

DISC

Replaces D139323

1шт.

5

R14771

WASHER

Throttle Lever

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16"), North American Models

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

European Models

1шт.

7

425-106

NUT,3/8"-16, Cl 5

North American Models

2шт.

7

825-1410

NUT,M10, Cl 8

European Models

2шт.

8

H169920

BALL JOINT

1/4 inch NF

1шт.

9

H435850

ROD

Throttle

1шт.

10

425-114

NUT,1/4"-28, G5

4шт.

11

H169920

BALL JOINT

1/4 inch NF; North American Models

1шт.

11

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 inch NF; European Models

1шт.

12

492-11025

LOCK WASHER,1/4"

2шт.

13

A154051

COCK, DRAIN

Fuel Shutoff

1шт.

14

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

15

D124109

FUEL HOSE

1200 mm (47-1/4 inch); Fuel Supply; Cut From A21562X Bulk Hose

1шт.

16

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

45 degree, 3/8 stem end x 1/4 inch PT

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

18

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

19

D127925

HOSE,6.35 mm ID x 1420.00 mm, SAE 30R6 or SAE 30R7

Fuel Return; Cut From A21561X Bulk Hose

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

6 (1/4) x 13 (1/2) x 7620 mm (300 inch)

1шт.

A21562X

LARGE HOSE,9.65mm ID x 711.2mm L

HOSE,LARGE 10 (3/8) ID x 7620 mm (300 inch)

1шт.
