Запчасти Case IH 1840 (03-10) - FUEL INJECTION NOZZLE - 7 MM TIP, 4-390 ENGINE (03) - FUEL SYSTEM

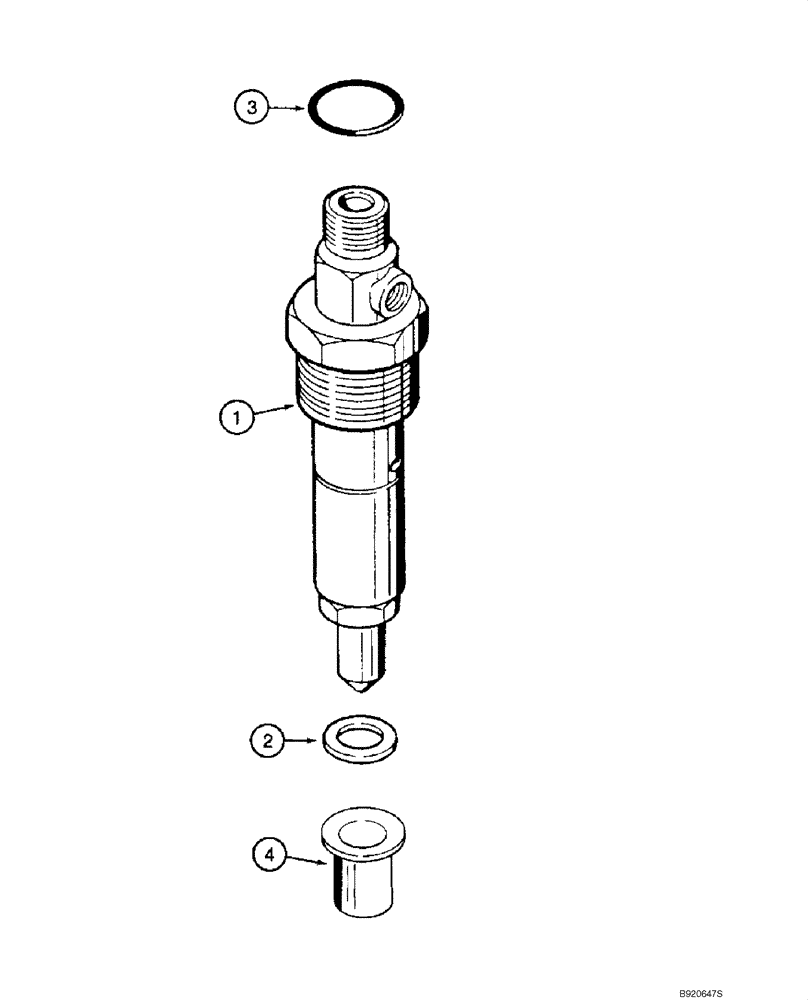

Схема запчастей Case IH 1840 - (03-10) - FUEL INJECTION NOZZLE - 7 MM TIP, 4-390 ENGINE (03) - FUEL SYSTEM
1
3
2
4

Артикул

Название

Примечание

Количество

1

J919331

NOZZLE INJECTION

7 mm tip; Fuel Injection; New; Incl. 2; 4-390 Engine

4шт.

1

JR919331

REMAN-FUEL INJECTOR

Remanufactured injection nozzle

4шт.

1

JC919331

CORE-FUEL INJECTOR

Return Part Number, injection pump

4шт.

2

J906659

SEAL

Injector Nozzle, 7 mm Injector Tip; Replaces J920174; Whenever a nozzle is removed from the cylinder head, J906659 seal must be replaced before nozzle is installed in cylinder head.

1шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Body To Nut

4шт.

4

J919358

ADAPTER

Injector; Adapts 7 mm Nozzle To 9 mm Hole; If Used

4шт.

Выбрано товаров: 6
