Запчасти Case IH 1840 (03-09) - FUEL INJECTION NOZZLE - 9 MM TIP, 4-390 ENGINE (03) - FUEL SYSTEM

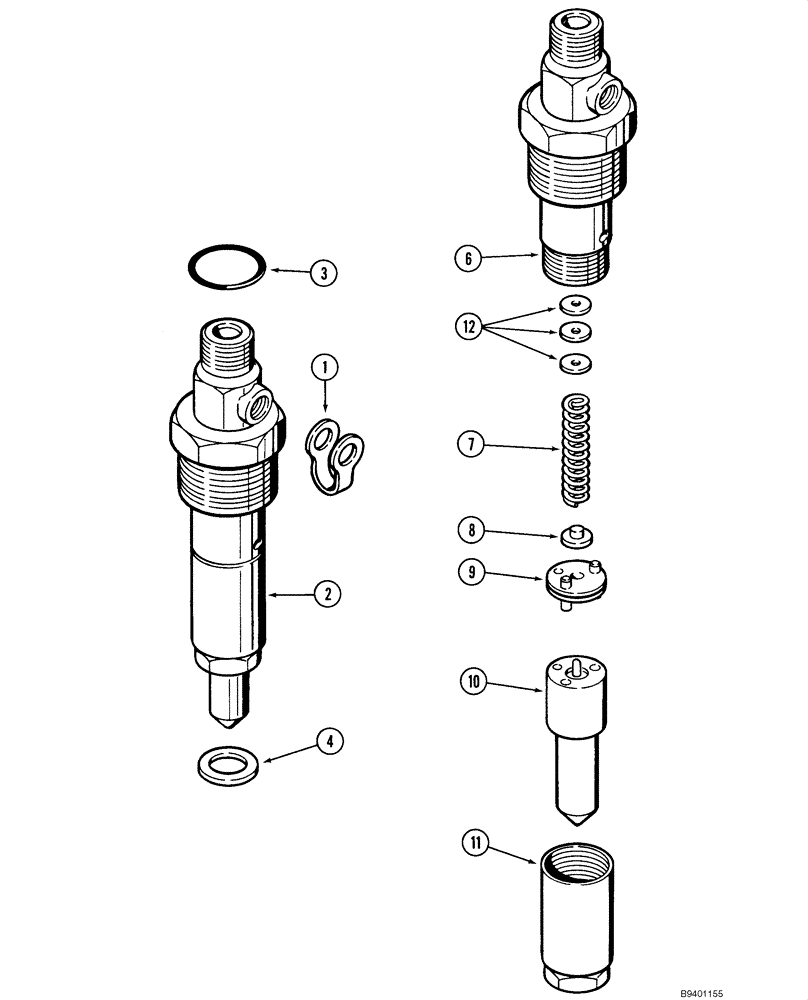

Схема запчастей Case IH 1840 - (03-09) - FUEL INJECTION NOZZLE - 9 MM TIP, 4-390 ENGINE (03) - FUEL SYSTEM
4
12
11
2
8
10
7
1
9
6
3

Артикул

Название

Примечание

Количество

A77553

KIT

Injection Nozzle; New; Incl. 1 - 12; No Longer Available, Order Components Separately

4шт.

AR77553

REMAN-INJECT NOZZLE

4шт.

AC77553

INJECTOR ASSY.

Return Number

4шт.

1

J903380

SEAL

Connector

4шт.

2

J914472

NOZZLE INJECTION

Fuel Injection; New; Incl. 3 - 12

4шт.

2

JR914472

REMAN-INJECT NOZZLE

Reman-Injection Nozzle Fuel Injection; Remanufactured; 4-390 Engine; 9 mm Tip

4шт.

2

JC914472

CORE-INJECTION PUMP

Return Number

4шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Body To Nut

4шт.

4

J900808

SEAL

Injector Nozzle, 9 mm Injector Tip; Use a new seal whenever a nozzle is removed and installed again in the cylinder head

4шт.

6

NSS

NOT SOLD SEPARAT

Body; Injector; Order J914472

1шт.

7

J905152

SPRING

Nozzle Pressure

1шт.

8

J905153

SPINDLE

Nozzle Pressure Spring

1шт.

9

J905154

PLATE

Nozzle Valve

1шт.

10

NSS

NOT SOLD SEPARAT

Tip; Nozzle Injector; Order J914472

1шт.

11

A48201

NUT

Nozzle Tip; Shim

1шт.

A48186

KIT

Nozzle Opening Pressure; Incl. 12; Starter Kit; Use one shim of the thickness required; No Longer Available, Order Components Separately

1шт.

12

1806233C1

SHIM,1.00mm Thk

5шт.

12

1806234C1

SHIM,1.04mm Thk

5шт.

12

1806235C1

SHIM,1.08mm Thk

5шт.

12

1806236C1

SHIM,1.10mm Thk

5шт.

12

1806237C1

SHIM,1.14mm Thk

5шт.

12

1806238C1

SHIM,1.18mm Thk

5шт.

12

1806239C1

SHIM,1.20mm Thk

5шт.

12

1806240C1

SHIM,1.24mm Thk

5шт.

12

1806241C1

SHIM,1.28mm Thk

5шт.

12

1806242C1

SHIM,1.30mm Thk

5шт.

12

1806243C1

SHIM,1.34mm Thk

5шт.

12

1806244C1

SHIM,1.38mm Thk

5шт.

12

1806245C1

SHIM,1.40mm Thk

5шт.

12

1806246C1

SHIM,1.44mm Thk

5шт.

12

1806247C1

SHIM,1.48mm Thk

5шт.

12

1806248C1

SHIM,1.50mm Thk

5шт.

12

1806249C1

SHIM,1.54mm Thk

5шт.

12

1806250C1

SHIM,1.58mm Thk

5шт.

12

1806251C1

SHIM,1.60mm Thk

5шт.

12

1806252C1

SHIM,1.64mm Thk

5шт.

12

1806253C1

SHIM,1.68mm Thk

5шт.

12

1806254C1

SHIM,1.70mm Thk

5шт.

12

1806255C1

SHIM,1.74mm Thk

5шт.

12

1806256C1

SHIM,1.78mm Thk

5шт.

12

1806257C1

SHIM,1.80mm Thk

5шт.

12

1806258C1

SHIM,1.84mm Thk

5шт.

12

1806259C1

SHIM,1.88mm Thk

5шт.

12

1806260C1

SHIM,1.90mm Thk

5шт.

12

1806261C1

SHIM,1.94mm Thk

5шт.

12

1806262C1

SHIM,1.98mm Thk

5шт.

Выбрано товаров: 46
