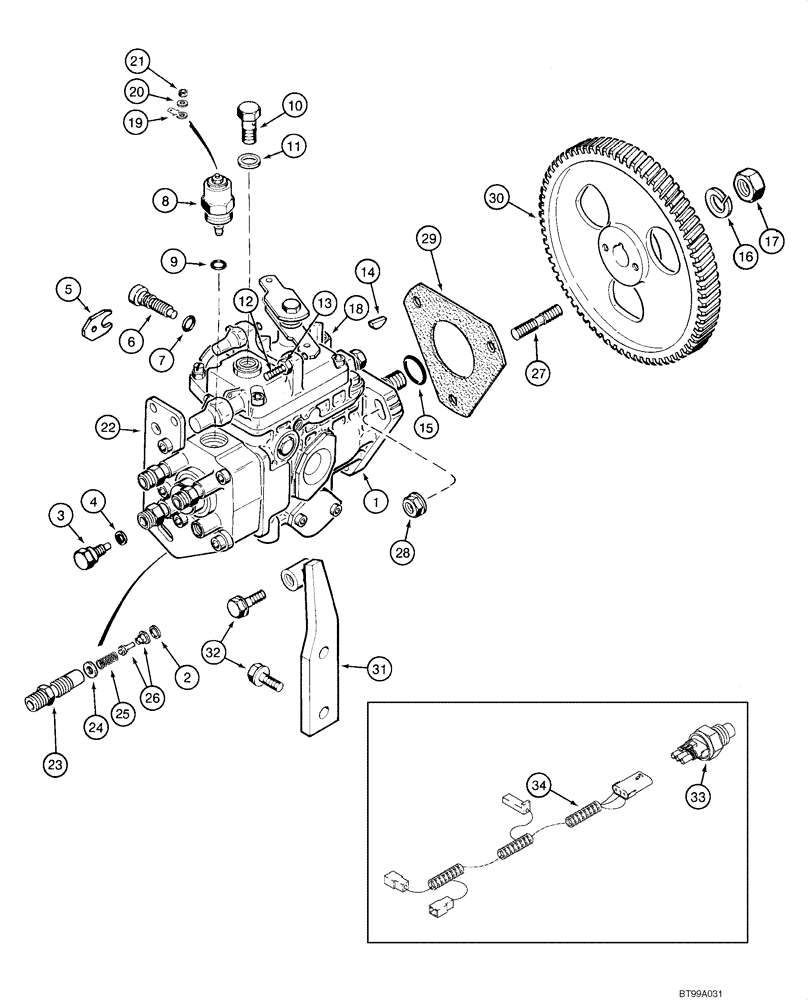

Запчасти Case IH 1840 (03-08) - FUEL INJECTION PUMP AND DRIVE, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J935679

PUMP, FUEL INJECTION

PUMP, INJECTION Fuel Injection; New; Incl. 2 - 26

1шт.

1

JR935679

REMAN-INJECTION PUMP

Fuel Injection, Remanufactured, 4-390 Emissions Certified Engine

1шт.

1

JC935679

CORE-INJECTION PUMP

Return Number

1шт.

2

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

Delivery Valve

4шт.

3

3079483R1

SCREW

Vent; Replaces J903572

1шт.

4

3053133R1

SEALING RING,M8 x 11.5 x 1

Vent Screw

1шт.

5

J904786

PLATE

Timing Lock

1шт.

6

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

Timing Lock

1шт.

7

J904785

O-RING,8 mm ID x 2.5 mm

Timing Lock Screw

1шт.

8

A77753

SOLENOID

12 volt; Shut Down; Component Parts Not Serviced Separately

1шт.

9

3078363R1

O-RING

Solenoid; Replaces J903577

1шт.

10

J905465

BANJO BOLT

Overflow

1шт.

11

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

Overflow

1шт.

12

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

Low Idle Stop

1шт.

13

J904783

NUT

Low Idle Screw

1шт.

14

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

Pump Gear Retainer

1шт.

15

J920393

SEAL

1шт.

16

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

17

J903738

NUT

14 mm - 2.0

1шт.

18

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

1шт.

19

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

; D+ Adapter Male

1шт.

20

J907481

WASHER

Solenoid Wire

1шт.

21

J907480

NUT

Solenoid Wire

1шт.

22

J905696

SUPPORT

Pump Support

1шт.

23

J910794

FITTING

Bypass Delivery Valve

4шт.

24

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

Used As Shim

4шт.

25

J910796

SPRING

Delivery Valve

4шт.

26

J910795

BY-PASS VALVE

Bypass Delivery

4шт.

27

J902501

STUD

8 - 1.25 x 48 mm; Pump Mounting

3шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

29

87413428

GASKET,1.2mm Thk

Pump Mounting; Replaces J931607

1шт.

30

87590645

GEAR

Drive Gear; Replaces J936021, J931387

1шт.

31

J905313

LEVER

Fuel Pump

1шт.

32

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

33

87608380

SENSOR,1/2" - 14

Temperature Sensor; Replaces J915945

1шт.

34

J918364

HARNESS

1шт.
