Запчасти Case IH 1840 (03-07) - FUEL INJECTION PUMP AND DRIVE, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

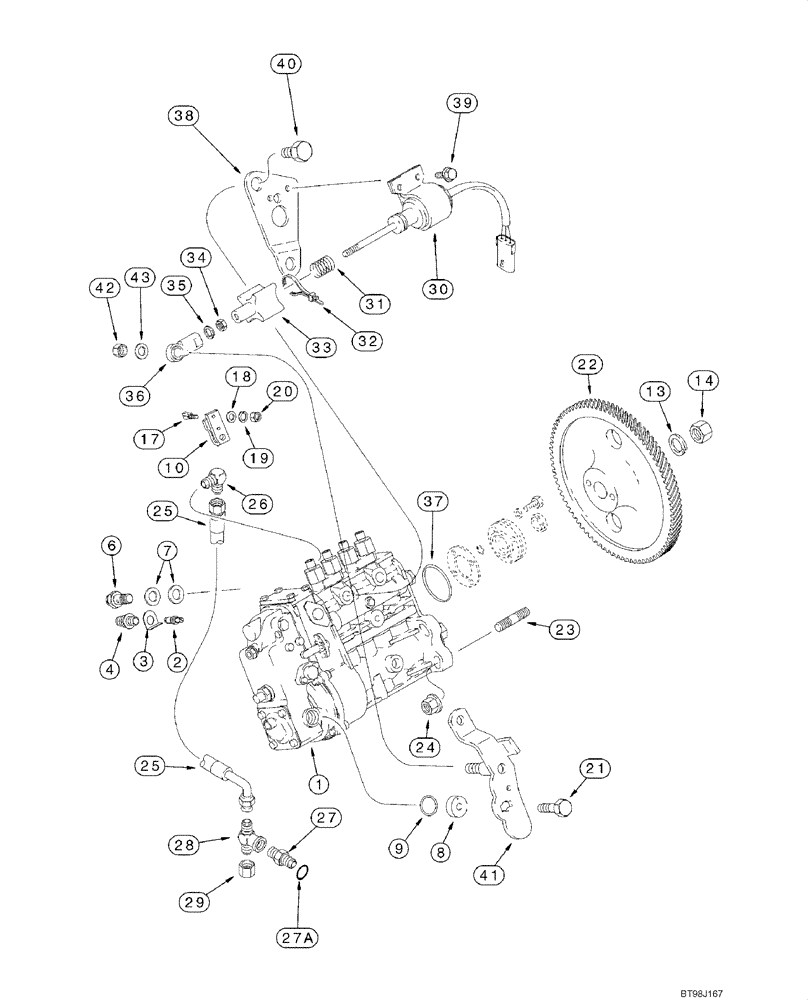

Схема запчастей Case IH 1840 - (03-07) - FUEL INJECTION PUMP AND DRIVE, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
27
35
42
13
25
21
10
41
26
37
34
9
43
2
8
32
1
20
17
38
22
14
7
36
27a
18
31
29
23
30
4
39
25
40
33
6
24
28
19
3

Артикул

Название

Примечание

Количество

1

J933090

PUMP, FUEL INJECTION

PUMP, INJECTION Fuel Injection; Without Aneroid; Incl. 2 - 21

1шт.

JR933090

REMAN-INJECTION PUMP

Fuel Injection; Remanufactured; North America Only; 4-390 Emissions Certified Engine; For Service, Order J933090

1шт.

JC933090

CORE-INJECTION PUMP

Return number - For N.A. only

2шт.

JC930143

CORE-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

Timing Plug

1шт.

4

J912888

PLUG

Timing

1шт.

6

J932096

VALVE

Overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

Valve Sealing

2шт.

8

691292C1

RETAINER

Spring Return

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

10

1808728C1

LEVER

Throttle Control

1шт.

13

A77775

LOCK WASHER

1шт.

14

A41852

LOCK NUT

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

Throttle Lever

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J934636

PINION

Fuel Pump; Replaces J931450

1шт.

23

J915036

STUD

55 mm (2-5/32 in); Pump Mounting

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

26

A77512

ELBOW

90 degree

1шт.

27

J932321

UNION

1/8 PT x 10 - 1.6 mm str thread; Incl. 27A; Replaces J941472

1шт.

27a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

8.1 ID x 1.6 mm; Replaces 637-72081

1шт.

28

J924346

TEE

Oil Pressure; Replaces J933291

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

1шт.

30

J932529

SOLENOID

12 volt; Fuel Shutoff; Incl. 31 - 36

1шт.

31

311100A1

SPRING

Return; Plunger

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

Plunger

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

1шт.

37

J935032

SEAL

80 mm ID; Replaces J930993

1шт.

38

J930590

SUPPORT

Solenoid Mounting

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

16 - 2.0 x 12 mm

2шт.

J802998

PACKAGE,SERVICE

Pump Shutoff Lever; Incl. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

Lever; Pump Shutoff

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

1шт.

43

J934022

WASHER

1шт.

Выбрано товаров: 43
