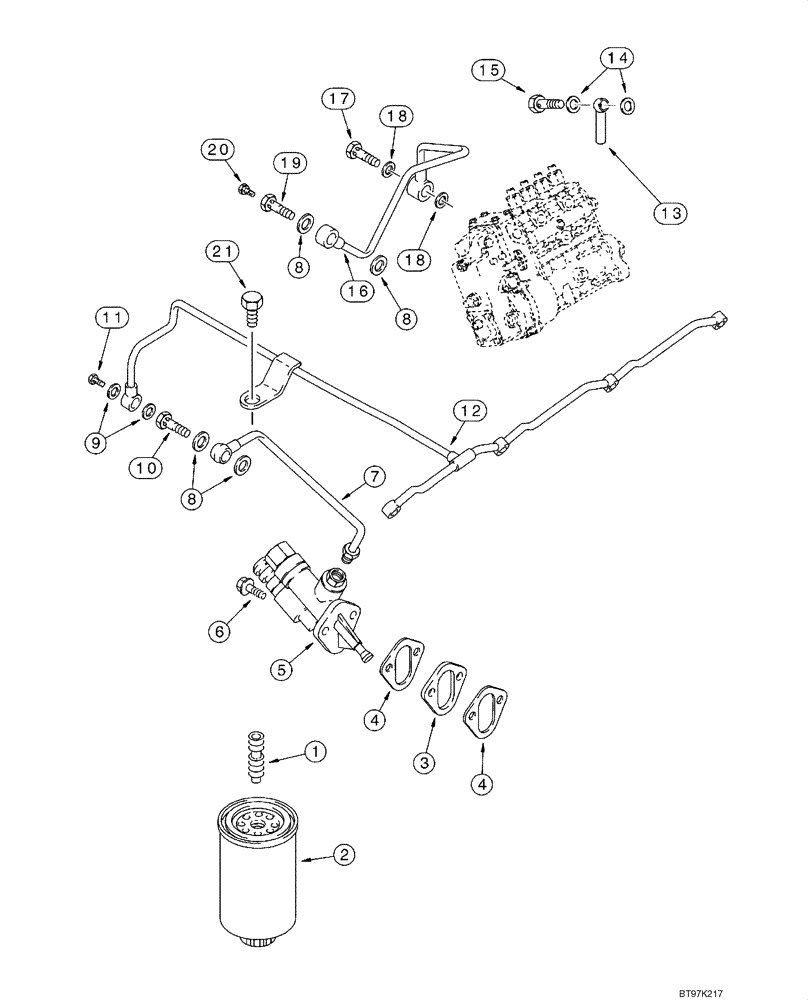

Запчасти Case IH 1840 (03-05) - FUEL FILTER, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J933090) (03) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

Fuel Filter; 4-390 Emissions Certified Engine; Use With Injection Pump J933090

1шт.

2

J931062

FILTER

Fuel; No Longer Available, Order J286503

1шт.

2

J286503

FUEL FILTER

1шт.

3

J914284

SPACER

Mounting; Fuel Transfer Pump

1шт.

4

J939258

GASKET,1.21mm Thk

Mounting; Fuel Transfer Pump; Replaces J931348

1шт.

5

J933254

FEED PUMP

Fuel Transfer; No Longer Available, Order J936318

1шт.

5

J936318

PUMP

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J917280

FUEL TUBE,8 mm OD x 231 mm L

Supply

1шт.

8

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

10

J916361

BANJO BOLT

12 - 1.5 x 24 mm

1шт.

11

J924726

BANJO BOLT

1шт.

12

J927633

TUBE

Manifold; Fuel

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR Fuel Return

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

15

J932096

VALVE

Overflow

1шт.

16

J932035

FUEL TUBE,8 mm OD x 349 mm L

Fuel Supply

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

Incl. 19, 20

1шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

20

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.
