(03-02) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J933090)

Запчасти Case IH 1840 (03-02) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J933090) (03) - FUEL SYSTEM

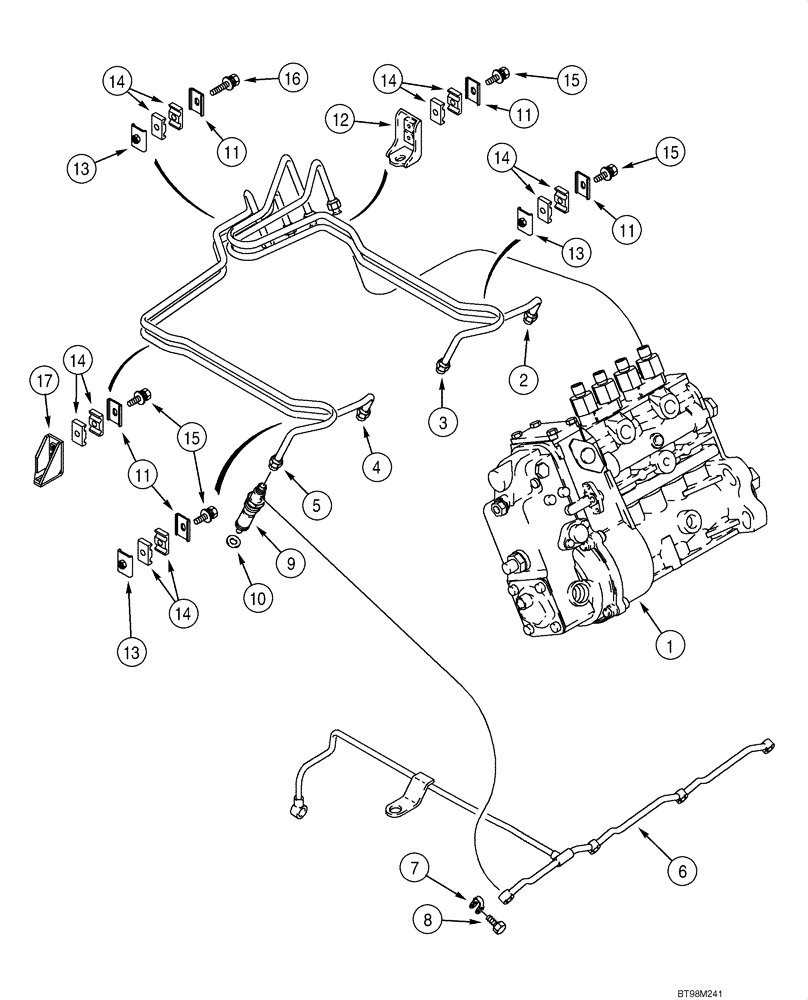

Схема запчастей Case IH 1840 - (03-02) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J933090) (03) - FUEL SYSTEM
8
16
4
15
15
13
13
9
14
1
11
11
14
10
3
6
14
2
7
12
14
11
15
14
13
11
17
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J933090

PUMP, FUEL INJECTION

PUMP, INJECTION Fuel Injection; Without Aneroid; See Figure 03-07

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

Fuel Injector; No. 1 Cylinder

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

Fuel Injector; No. 2 Cylinder

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

Fuel Injector; No. 3 Cylinder

1шт.

5

J932160

FUEL TUBE,750 mm L

Fuel Injector; No. 4 Cylinder

1шт.

6

J927633

TUBE

Manifold; Fuel

1шт.

7

J903380

SEAL

Connector

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

9

REF

INSTRUCTION

Nozzle Assy; Fuel Injector; See Figure 03-11

4шт.

10

J930324

SEAL

Seal; Injector Nozzle, 7 mm injector tip; See Figure 03-11

4шт.

11

J904711

SUPPORT

Fuel Tube

5шт.

12

J282942

BRACKET

Fuel Tube

1шт.

13

J917717

BRACE

Fuel Tube

3шт.

14

J917746

CLAMP

Fuel Tube

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

16

J920855

CAPTIVE WASHER SCREW

5 - 0.8 x 35 mm

1шт.

17

J919086

BRACKET

Fuel Tube

1шт.
