Запчасти Case IH 1840 (02-37) - GASKET KIT - VALVE GRIND, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

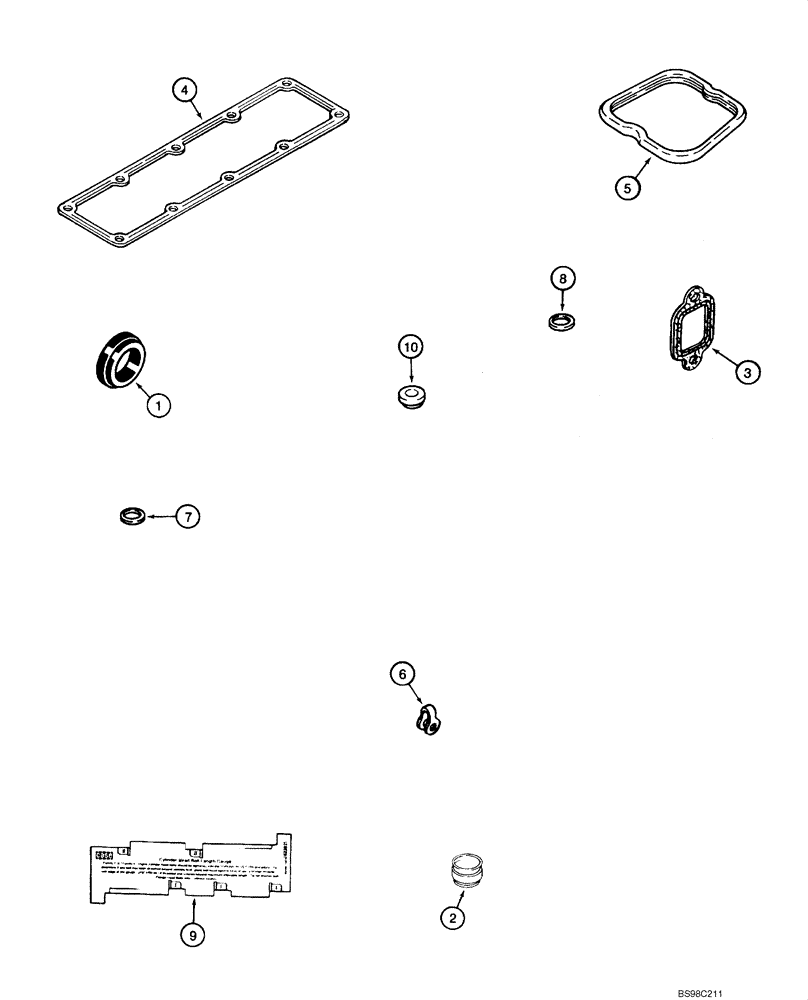

Схема запчастей Case IH 1840 - (02-37) - GASKET KIT - VALVE GRIND, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
7
3
1
10
6
5
2
4
8
9

Артикул

Название

Примечание

Количество

A77911

SEAL PACKAGE

Valve Grind; 45636369 - 45705901; Incl. 1 - 10; Also Order The Required Cylinder Head Gasket, Figure 02-18EF REF 2; No Longer Available; Order 87405727, See Figure 02-39

1шт.

1

J923331

GASKET

Thermostat Housing; See Figure 02-18

1шт.

2

J901097

SEAL

Valve; Intake; Black With Orange Band; See Figure 02-19, 02-20; No Longer Available, Order J921640

4шт.

2

J921640

SEAL

See Figure 02-19, 02-20

4шт.

3

J905443

MANIFOLD GASKET

Exhaust Manifold; See Figure 02-11; No Longer Available. Order J927154

4шт.

3

J927154

GASKET,0.38mm Thk

See Figure 02-11

4шт.

4

J938153

MANIFOLD GASKET,0.8mm Thk

Intake Manifold; See Figure 02-11; Replaces J931605

1шт.

5

J930906

GASKET

Rocker Arm Cover; See Figure 02-19

4шт.

6

J903380

SEAL

Connector; Fuel Drain Manifold Tube; Not Used In This Application

4шт.

7

J930324

SEAL

Injection Nozzle, 7 mm Injector Tip; Not Used In This Application

4шт.

8

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Body To Nut; See Figure 03-11, 03-12

4шт.

9

J823921

GAUGE

Cylinder Head; Bolt Length

1шт.

10

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Noise; Rocker Arm Cover; See Figure 02-18, 02-20

4шт.

Выбрано товаров: 13
