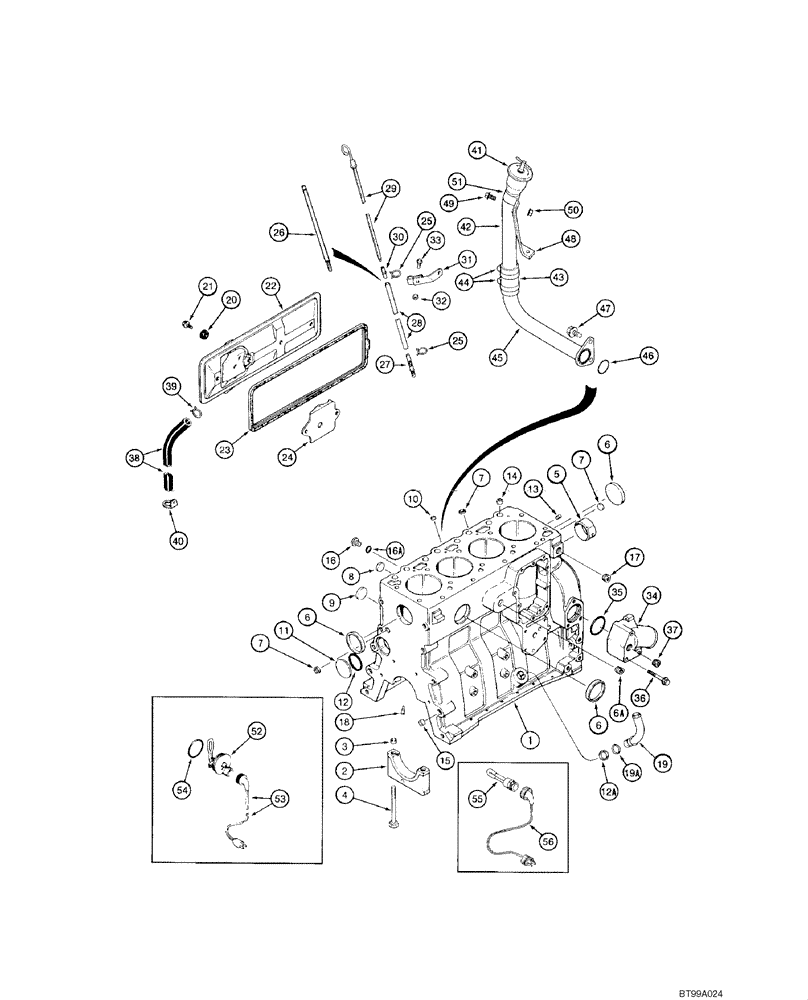

Запчасти Case IH 1840 (02-25) - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J933090) (02) - ENGINE

258521A1

ENGINE

4-390 Emissions Certified; Complete; For Service, Order 302562A1

1шт.

258521A2

ENGINE

4-390 Emissions Certified; Complete; For Service, Order 302562A1

1шт.

302562A1

BASIC ENGINE

Basic; Incl. all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley and belt tensioner

1шт.

302562A1R

REMAN-BASIC ENGINE

Basic; Incl. all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley and belt tensioner. Built with 4 bolt injection pump front housing

1шт.

302562A1C

CORE-BASIC ENGINE

Return Part Number

1шт.

J935233

BLOCK ASSY.

Short; New; Incl. stripped block, pistons, connecting rods and bearings, crankshaft and bearings; 45636369 - 45705901

1шт.

JR935233

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Short; Remanufactured; 45636369 - 45705901

1шт.

J933649

SHORT ENGINE

Short; New; Incl. stripped block, pistons, connecting rods and bearings, crankshaft and bearings; - 45636369

1шт.

JR933649

REMAN-SHORT ENGINE

Short; Remanufactured; - 45636369

1шт.

JC933649

CORE-SHORT ENGINE

Return Part Number

1шт.

1

87444172

BLOCK ASSY.

Stripped; Incl. REF 1 - 8; Also Order J933220

1шт.

2

J903492

BEARING CAP

Main Bearing; Incl. REF 2 - 8; Replaces J900967

5шт.

3

J900068

BEARING WASHER

18 mm OD; Main Bearing Cap To Block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Main Bearing Cap

10шт.

5

REF

INSTRUCTION

Bushing; Camshaft Front; See Figure 02-23, REF 2

1шт.

6

A77782

PLUG

58 mm OD

1шт.

6a

A77505

PLUG

3/4 inch PT

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

86625124

PLUG,Cup, 1", Stainless

1 in; Replaces 41-1616

2шт.

J933220

PACKAGE,SERVICE

Block Hardware; Incl. 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

41-3038

PLUG,Exp, 2 3/8"

(60 mm OD); Replaces 172599

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm OD

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm long; Locating

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm; Incl. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

1шт.

17a

J678921

PLUG

14 mm; Incl. 17B; Not Used In This Application; Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not used in this application; Not Illustrated

1шт.

17c

J932296

PLUG

Timing Sensor Hole; Incl. 17D; Not Used In This Application; Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Used In This Application; Not Illustrated

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Used In This Application; Not Illustrated

1шт.

18

J930139

NOZZLE CAP

Piston Cooling

4шт.

19

J931973

TUBE,0.875" OD

Turbocharger Oil Drain; Not Used In This Application; Replaces J903744; REF 12A Installed In This Port

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

18 mm ID; Not Used In This Application

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

Tappet

1шт.

23

J283767

GASKET,7.4mm Thk

Tappet Cover

1шт.

24

J907586

BAFFLE

Tappet Cover

1шт.

25

86637701

HOSE CLAMP,12.45mm - 12.95mm

1/2 inch; Replaces 214-1308

2шт.

26

J922885

TUBE,12.7 mm OD x 482 mm L

Oil Dipstick; Self-standing

1шт.

27

J905425

TUBE,9.52 mm OD x 93 mm L

Oil Dipstick; At Block

1шт.

28

J917573

TUBE,12.7 mm OD x 482 mm L

Oil Dipstick; Clamped To Oil Filler Tube

1шт.

29

J917572

DIPSTICK

Oil Gauge

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

Oil Dipstick Tube

1шт.

31

J916723

BRACE

Oil Dipstick

1шт.

32

825-1408

NUT,M8, Cl 8

1шт.

33

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

34

J934877

HYD CONNECTOR

Replaces J903102; Water Inlet

1шт.

35

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

36

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

Replaces 854-10075

3шт.

37

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

2шт.

38

J918612

TUBE,360.00 mm

Breather

1шт.

39

J904230

CLAMP,25.4mm

1шт.

40

J928989

CLIP

1шт.

41

A77424

FILLER CAP

Oil Fill Tube; Not Incl. In Engine Assembly

1шт.

42

J933144

TUBE,38.1 - 52.39 mm OD x 350, 30 mm L

Oil Filler; Upper; Not Incl. In Engine Assembly

1шт.

43

J912686

HOSE,38.1mm ID x 84mm L

Not Incl. In Engine Assembly

1шт.

44

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

Not Included In Engine Assembly

2шт.

45

305504A1

TUBE,38.1 mm OD, 125, 100 mm Length

Oil Filler; Lower; Not Incl. In Engine Assembly

1шт.

46

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm (1-1/2 inch) ID; Not Incl. In Engine Assembly

1шт.

47

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

Not included in Engine Assy

2шт.

48

J918419

BRACE

Not Incl. In Engine Assembly

1шт.

49

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

Not Incl. In Engine Assembly

1шт.

50

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

Not Incl. in Engine Assembly

1шт.

51

A77694

CLAMP

Not Incl. In Engine Assembly

1шт.

196803A1

KIT

Engine Block Heater, 120V - 750W; Incl. 52 -54; Install Ref. 52 In Place Of Ref. 6 Plug

1шт.

52

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Engine Block Heater; Installs In Place Of Ref. 6 Plug

1шт.

53

196466A1

ELECTRIC CABLE

Engine Block Heater

1шт.

54

J910517

O-RING

1шт.

309651A1

KIT

Engine Block Heater, 120V - 750W; Incl. 55, 56; Incl. 41, 42; Install Ref. 55 In Place Of Ref. 6A Plug

1шт.

55

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Engine Block Heater; Installs in place of Ref. 6A

1шт.

56

196466A1

ELECTRIC CABLE

Engine Block Heater

1шт.

A77893

PACKAGE, REPAIR

Engine Overhaul Kit; Incl. 57 - 64; Not Illustrated; If Used

1шт.

57

J804980

PISTON & RINGS KIT

Standard; See Figure 02-32

4шт.

58

J934047

PIN,40mm OD x 82.68mm L

See Figures 02-32 - 02-34; Replaces J919053

4шт.

59

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Upper And Lower Set; Standard; See Figures 02-32 - 02-34

4шт.

60

J804940

BEARING SET

Main; Upper And Lower Set; Standard; See Figure 02-28

4шт.

61

A77895

THRUST BEARING,KIT

Main, Thrust; Upper And Lower Set; Standard; See Figure 02-28

1шт.

62

A77870

SEAL PACKAGE

Valve Grind; See Figure 02-36; No Longer Available, Order 87405727, See Figure 02-39

1шт.

63

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Standard; See Figure 02-18

1шт.

64

A77673

GASKET KIT

Oil Pan; See Figure 02-18

1шт.

A77907

PACKAGE, REPAIR

Engine Overhaul; Incl. REF 65 - 72; Not Illustrated; If Used

1шт.

65

J800455

PISTON ASSY.

Standard; See Figure 02-33

4шт.

66

J934047

PIN,40mm OD x 82.68mm L

See Figure 02-32 - 02-34; Replaces J919053

4шт.

67

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Upper And Lower Set; Standard; See Figure 02-32 - 02-34

4шт.

68

J804940

BEARING SET

Upper And Lower Set; Standard; See Figure 02-28

4шт.

69

A77895

THRUST BEARING,KIT

Upper And Lower Set; Standard; See Figure 02-28

1шт.

70

A77911

SEAL PACKAGE

Valve Grind; See Figure 02-40; No Longer Available, Order 87405727, See Figure 02-39

1шт.

71

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Standard; See Figure 02-18

1шт.

72

A77673

GASKET KIT

Oil Pan; See Figure 02-18

1шт.
