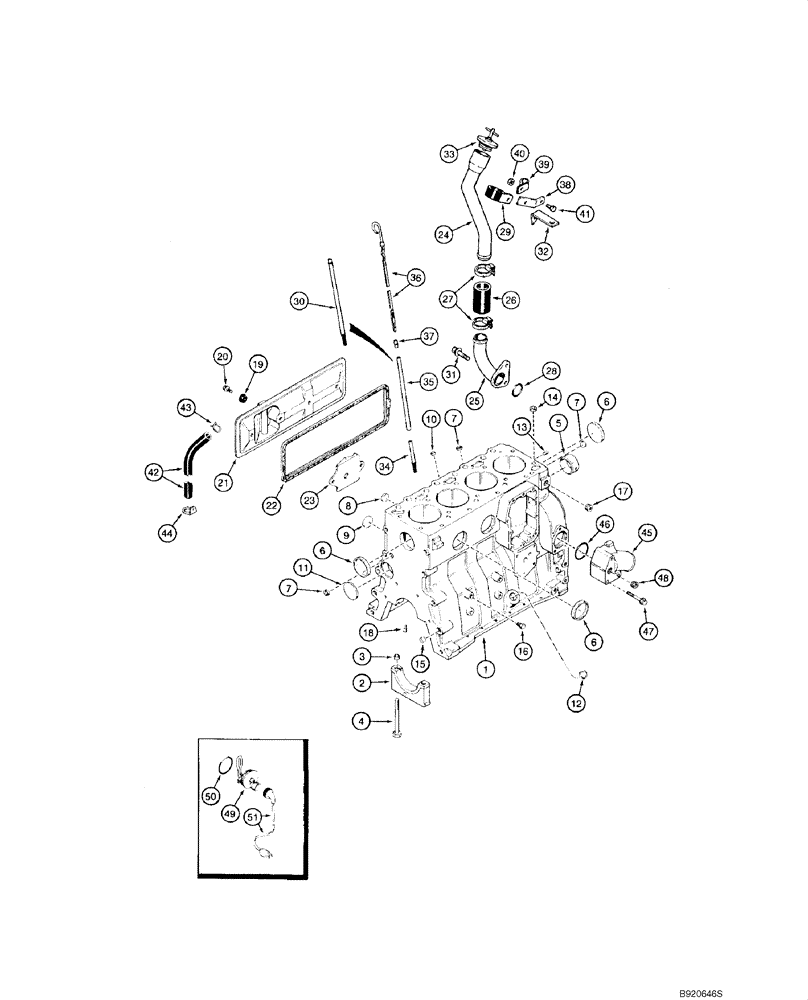

Запчасти Case IH 1840 (02-24) - CYLINDER BLOCK, 4-390 ENGINE (02) - ENGINE

1989077C2

ENGINE

Complete; 4-390; Incl. all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe; For Service, Order Basic Engine Below; - 44669844; No Longer Used

1шт.

1989137C2

ENGINE

Complete; 4-390; Incl. all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe; For Service, Order Basic Engine Below

1шт.

1989137C1R

REMAN-REPLACEMENT EN

Reman For New P/N 1989137C2

1шт.

1989137C1C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1989091C3

BASIC ENGINE

Incl. all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley and belt tensioner; Replaces 1989091C2; See Note

1шт.

47465894R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts. Built with 4 bolt injection pump front housing

1шт.

47465894C

CORE-BASIC ENGINE

Return Part Number

1шт.

1989091C3R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts. Built with 3 bolt injection pump front housing

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

J933238

SKELETON ENGINE

Short; New; Incl. 1 - 8; Incl. stripped block, pistons, connecting rods and bearings, crankshaft and bearings; Replaces A77758, J920384; Also Order J933220 REF 9 - 15

1шт.

JR933238

REMAN-SHORT ENGINE

Short, Remanufactured, Replaces AR77758

1шт.

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

1

87444172

BLOCK ASSY.

Stripped; Incl. 2 - 8; Replaces A77757, J916254; Also Order J920399, REF 9 - 15

1шт.

2

J903492

BEARING CAP

Main Bearing Cap; Replaces J900967

5шт.

3

J900068

BEARING WASHER

18 mm OD; No Longer Available

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

Main Bearing Cap

10шт.

5

REF

INSTRUCTION

Bushing; Camshaft; Front; See Figure 02-22, REF 2

1шт.

6

A77782

PLUG

58 mm OD

4шт.

7

J900956

PLUG

18 mm OD

3шт.

8

86625124

PLUG,Cup, 1", Stainless

1 in; Replaces A77539, 41-1616

2шт.

J933220

PACKAGE,SERVICE

Block Hardware; Incl. REF 9 - 18; Replaces J920399

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

41-3038

PLUG,Exp, 2 3/8"

(60 mm OD); Replaces 172599

1шт.

12

J920706

PLUG

22 mm OD; Camshaft; Replaces A77439

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

1/8 inch PT; Replaces J906619

2шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

1шт.

18

J937214

NOZZLE CAP

Piston Cooling; Replaces J901020, J919002

4шт.

19

J900267

SEAL

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

21

J936186

COVER

Tappet Cover; Replaces J925680, J905023 and J916441

1шт.

22

J283767

GASKET,7.4mm Thk

Tappet Cover; Replaces J904056, J922078

1шт.

23

J907586

BAFFLE

Tappet Cover

1шт.

24

J917570

TUBE,38.1 mm OD x 372.7 mm L

Oil Filler; Lower

1шт.

25

J917569

TUBE,38.1 mm OD x 129.5, 88.2 mm L

Oil Filler; Lower

1шт.

26

J912686

HOSE,38.1mm ID x 84mm L

Oil Fill Tube Connecting

1шт.

27

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm (1-1/2 inch) ID

1шт.

29

A77694

CLAMP

Tube

1шт.

30

J922885

TUBE,12.7 mm OD x 482 mm L

Oil Dipstick Tube; Self-standing; If Used

1шт.

31

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

32

J918419

BRACE

Tube; Replaces J916724

1шт.

33

A77424

FILLER CAP

Oil Fill Tube

1шт.

34

A77645

TUBE

Replaces J905425; Oil Dipstick Tube

1шт.

35

J922885

TUBE,12.7 mm OD x 482 mm L

Oil Dipstick Tube; Clamped To Oil Filler Tube; Replaces J917573; If Used

1шт.

36

J917572

DIPSTICK

Oil Gauge

1шт.

37

J905802

FITTING,9.53 mm OD x 39 mm L

Oil Dipstick Tube; Used With REF 35; If Used

1шт.

38

J916723

BRACE

Oil Dipstick

1шт.

39

86637701

HOSE CLAMP,12.45mm - 12.95mm

1/2 inch; Replaces 214-1308; If Used

2шт.

40

825-1408

NUT,M8, Cl 8

Replaces J900240

1шт.

41

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

42

J918612

TUBE,360.00 mm

HOSE, , Breather Replaces J906593 360.00 mm

1шт.

43

J904230

CLAMP,25.4mm

1шт.

44

J909670

CLIP

1шт.

45

J934877

HYD CONNECTOR

Water Inlet; Replaces J903102

1шт.

46

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

47

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

Replaces 854-10075

3шт.

48

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

2шт.

196803A1

KIT

Engine Block Heater; Incl. 49 - 51; Replaces A77634

1шт.

49

J916127

RESISTOR

120 volt; Engine Heater

1шт.

50

J910517

O-RING

Heater Sealing

1шт.

51

196466A1

ELECTRIC CABLE

Engine Block Heater

1шт.
