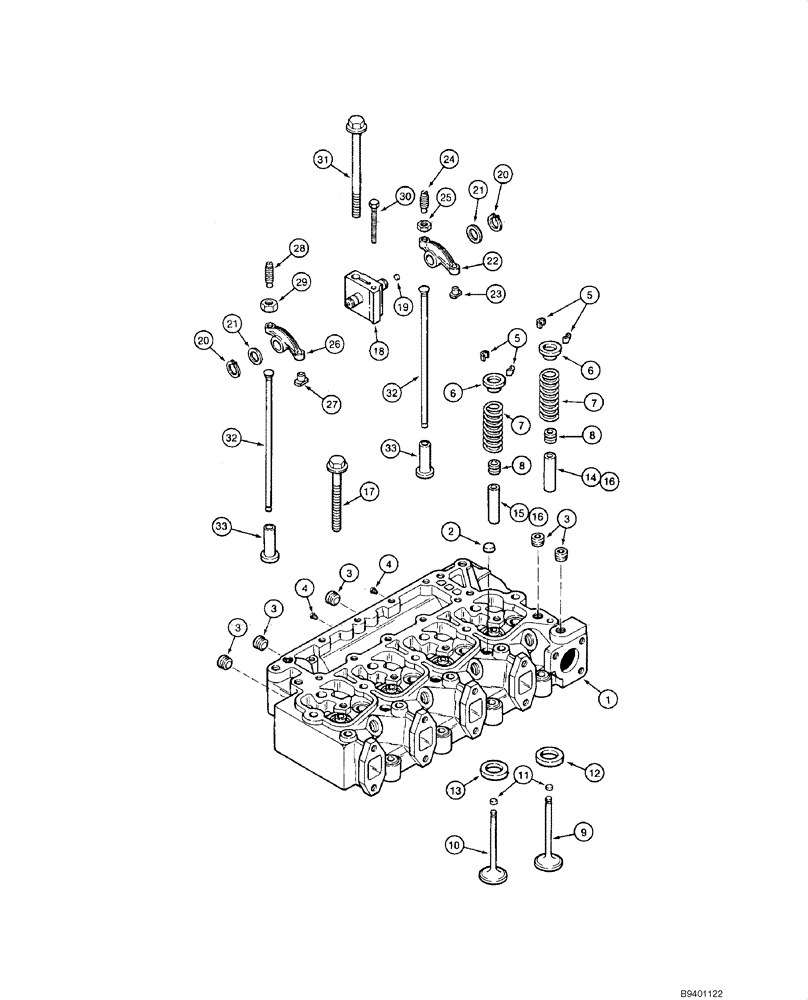

Запчасти Case IH 1840 (02-20) - CYLINDER HEAD - VALVE MECHANISM, 4-390 ENGINE (02) - ENGINE

JR930913

REMAN-CYLINDER HEAD

Remanufactured; North America Only; 44566928 - ; For Fuel Injection Nozzles With 7mm Dia Tip; Replaces JR920611

1шт.

JC930913

CORE-CYLINDER HEAD

Return Number; 44566928 - ; For Fuel Injection Nozzles With 7mm Dia Tip; Replaces JC905864, JC920611

1шт.

1

J920611

HEAD (CYLINDER)

New; With Valves; Incl. J920005, REF 2 - 10; 44566928 - ; For Fuel Injection Nozzles With 7mm Dia Tip; No Longer Available, Order J930913

1шт.

1

J930913

HEAD (CYLINDER)

New; With Valves

1шт.

1

J920005

HEAD (CYLINDER)

New; Without Valves; Incl. 2; 44566928 - ; For Fuel Injection Nozzles With 7mm Dia Tip; No Longer Available, Order J933419

1шт.

1

J933419

HEAD (CYLINDER)

New; Without Valves; For Fuel Injection Nozzles With 7mm Dia Tip; Replaces J920005

1шт.

2

A77783

PLUG

21 mm OD; Replaces J902606

3шт.

3

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429; One Removed To Install Temperature Sending Unit

5шт.

4

J906619

PLUG,1/8" - 27

1/8 inch PT

2шт.

5

J900250

SCREW

Valve

16шт.

6

J900299

RETAINER

Valve Spring; No Longer Available, Order J935038

8шт.

6

J935038

RETAINER

8шт.

7

J900276

VALVE SPRING

No Longer Available, Order J926700

8шт.

7

J926700

VALVE SPRING

8шт.

8

J901097

SEAL

Valve; No Longer Available, Order J921640

8шт.

8

J921640

SEAL

4шт.

9

J920867

VALVE

Intake; Replaces J901117

4шт.

10

J920868

VALVE

Exhaust; Replaces J906854

4шт.

11

J280911

WEAR PAD

Use On Intake And Exhaust Valves; No Longer Available, Order J910412

1шт.

11

J910412

WEAR PAD

1шт.

12

J906854

SEAT, VALVE

Intake Valve; Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust Valve; Service Repair Only

4шт.

14

J904408

GUIDE

14 mm OD; Intake; Service Repair Only

4шт.

15

J904409

GUIDE

14 mm OD; Exhaust; Service Repair Only

4шт.

16

J906206

GUIDE

11 mm OD; Intake And Exhaust; Service Repair Only

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm; Cylinder Head; Replaces J903938, J918471

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm; Cylinder Head; Replaces J903939, J918472

10шт.

18

J910814

SUPPORT

Rocker Arm; Incl. 19; No Longer Available, Order J922488

4шт.

18

J922488

SUPPORT

4шт.

19

J907555

PLUG

1/4-18 PT; Rocker Arm Shaft

1шт.

20

J900242

SNAP RING

Rocker Arm

8шт.

21

J900245

WASHER

Rocker Arm

8шт.

22

J910811

ROCKER

Intake; Incl. 23 - 25

4шт.

23

NSS

NOT SOLD SEPARAT

Insert; Rocker Arm

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

No Longer Available, Order J934086

1шт.

24

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

Replaces A77558

1шт.

26

J910810

ROCKER

Exhaust; Incl. 27 - 29

4шт.

27

NSS

NOT SOLD SEPARAT

Insert; Rocker Arm

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

No Longer Available, Order J934086, REF 24

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

Replaces A77558

1шт.

30

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

31

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm; Rocker Arm And Cylinder Head; Replaces J903940

4шт.

32

J923262

PUSH ROD

Rocker Arm; Replaces J904679; No Longer Available, Order J284377

8шт.

32

J284377

PUSH ROD

8шт.

33

J925031

TAPPET

Push Rod; Replaces J907240; No Longer Available, Order J931623

8шт.

33

J931623

TAPPET

8шт.
