Запчасти Case IH 1840 (09-72) - BACKHOE - BUCKETS (D125) (09) - CHASSIS/ATTACHMENTS

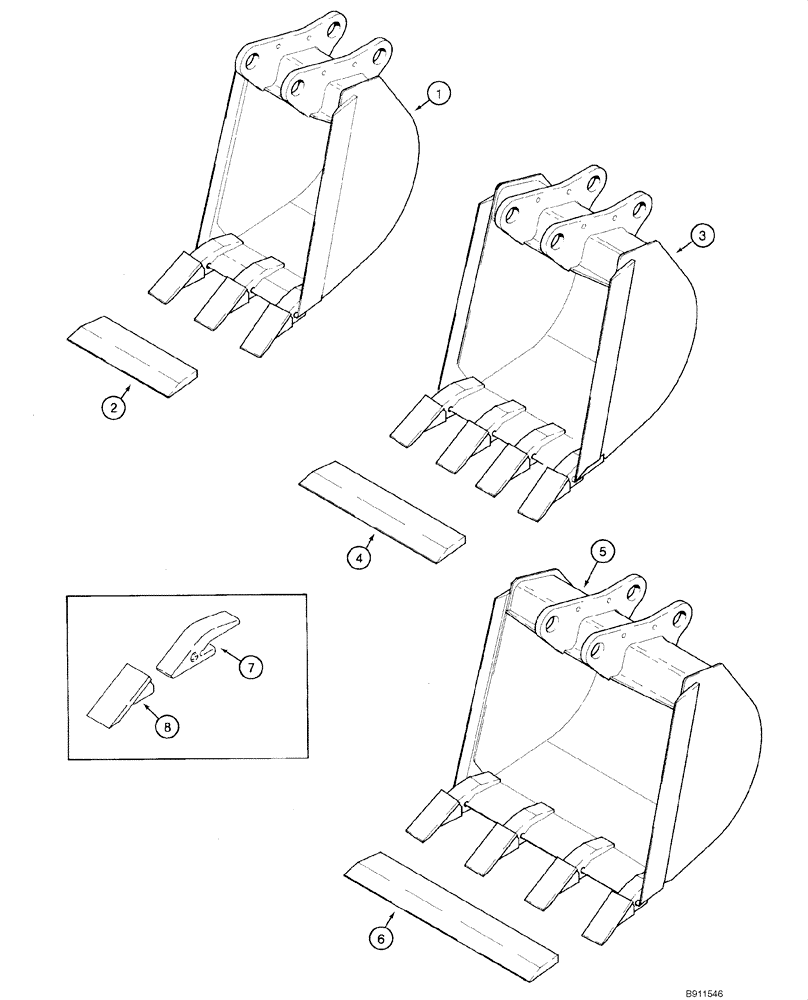

Схема запчастей Case IH 1840 - (09-72) - BACKHOE - BUCKETS (D125) (09) - CHASSIS/ATTACHMENTS
4
2
1
8
6
3
7
5

Артикул

Название

Примечание

Количество

H674115

BUCKET

Bucket, 13-1/2 in (344 mm); Backhoe; Order From Machinery Price List; Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket, 13-1/2 in (344 mm)

1шт.

2

H438604

EDGE

13-1/2 in (344 mm); Bucket

1шт.

H674116

BUCKET

18 in (458 mm) wide; Backhoe; Order From Machinery Price List; Incl. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket, 18 in (458 mm)

1шт.

4

H438593

EDGE

18 in (458 mm)

1шт.

H674117

BUCKET

Bucket, 24 in (610 mm); Backhoe; Order From Machinery Price List; Incl. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Bucket, 24 in (610 mm)

1шт.

6

H438543

EDGE

24 in (610 mm)

1шт.

H672429

TOOTH

Backhoe Bucket; Incl. 7, 8

3шт.

7

NSS

NOT SOLD SEPARAT

Shank

1шт.

8

D27748

TOOTH

Standard

1шт.

Выбрано товаров: 12
