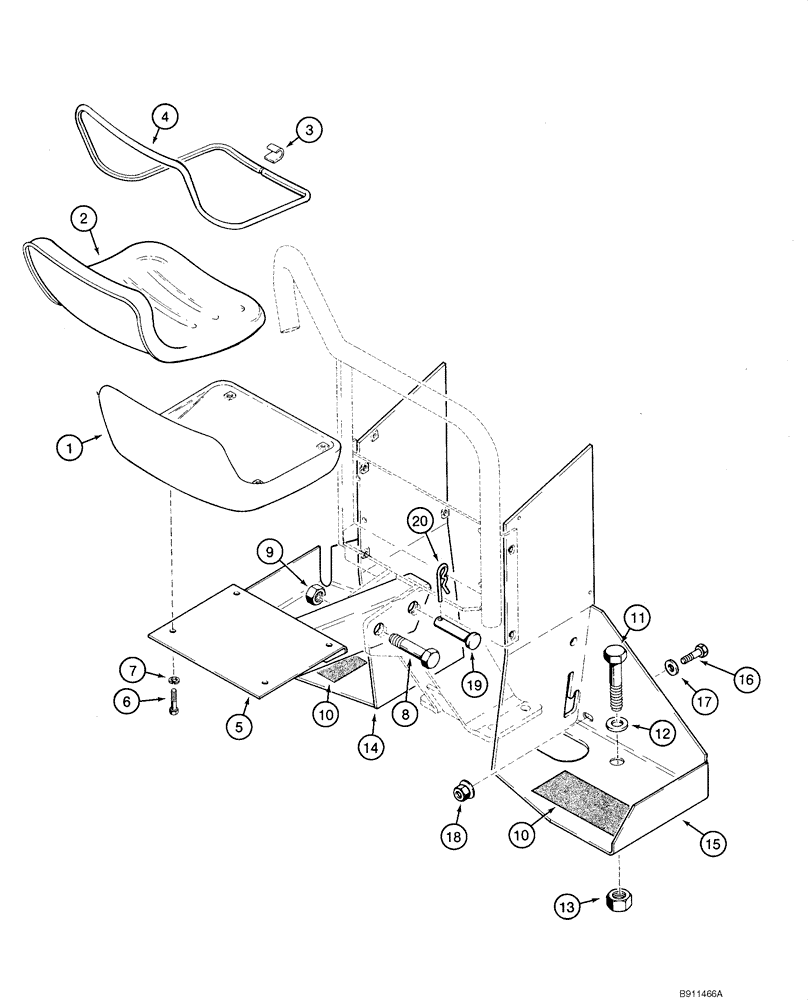

Запчасти Case IH 1840 (09-69) - BACKHOE - SEAT AND FOOT SHIELDS (D125) (09) - CHASSIS/ATTACHMENTS

H436146

SEAT

Operators; Used On Models With Brown Trim

1шт.

179332A1

SEAT

Operators; Used On Models With Gray Trim; Incl. 1 - 4; No Longer Available, Order 440454A1

1шт.

440454A1

SEAT

Wheat; Component Parts Not Serviced Separately

1шт.

1

NSS

NOT SOLD SEPARAT

Pan; Seat

1шт.

H429316

SEAT

Brown; Seat Cushion; Incl. 2 - 4; Replaces N13696

1шт.

2

NSS

NOT SOLD SEPARAT

Cushion; Seat

1шт.

3

NSS

NOT SOLD SEPARAT

Clip; Seat Trim

1шт.

4

NSS

NOT SOLD SEPARAT

Trim

1шт.

5

H673473

LARGE PLATE

PLATE, LARGE Seat Mounting

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

492-11031

LOCK WASHER,5/16"

4шт.

8

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

1шт.

9

230-42112

LOCK NUT,3/4"-10, GA

3/4 in

1шт.

10

H386334

FLOOR MAT

Anti-skid

2шт.

11

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

2шт.

13

230-42116

LOCK NUT,1"-8, GA

2шт.

14

H674622

LARGE PLATE

PLATE, LARGE Foot Guard; Left

1шт.

15

H674623

LARGE PLATE

PLATE, LARGE Foot Guard; Right

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

H426775

WASHER

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

19

S10839

CLEVIS PIN,19.05mm OD x 95.25mm L

3/4 x 3-1/2 inch

1шт.

20

136-164

COTTER PIN,Int, 5/16" x .120"

5/16 x 2-25/32 in

1шт.
