Запчасти Case IH 1840 (09-66) - BACKHOE FRAME - MOUNTING (D125) (09) - CHASSIS/ATTACHMENTS

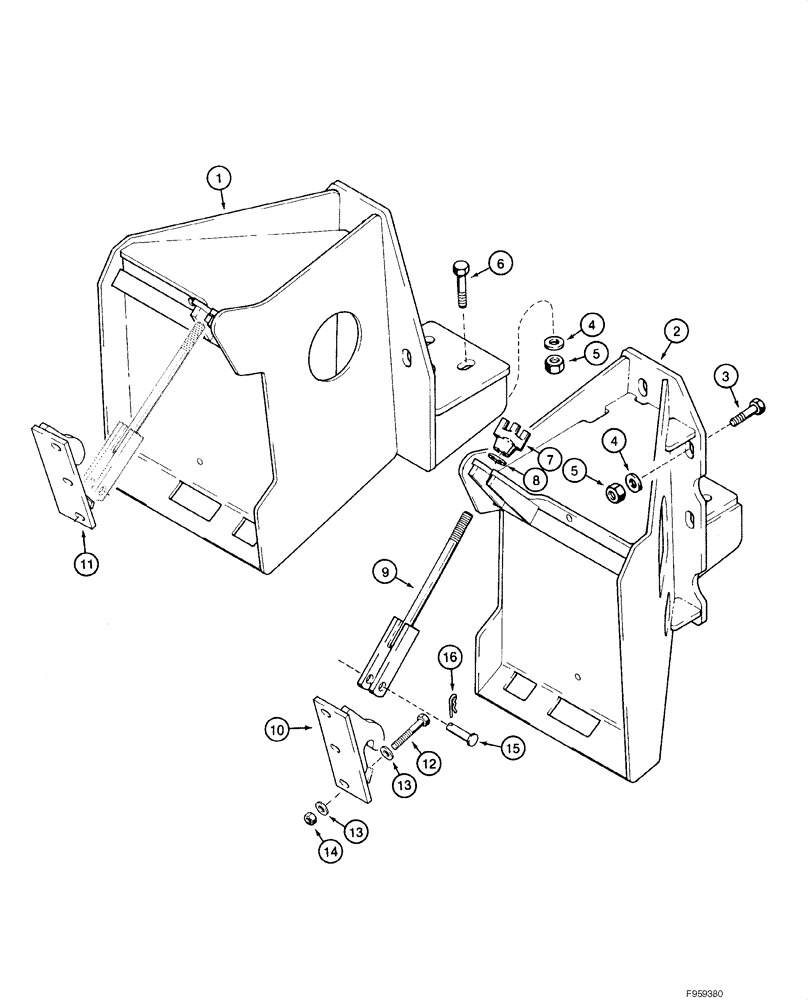

Схема запчастей Case IH 1840 - (09-66) - BACKHOE FRAME - MOUNTING (D125) (09) - CHASSIS/ATTACHMENTS
14
10
9
2
4
12
5
13
8
15
13
3
7
6
11
1
4
16
5

Артикул

Название

Примечание

Количество

1

H674134

MOUNTING PARTS

Backhoe; Left Hand

1шт.

2

H674956

LARGE PLATE

PLATE, LARGE Backhoe; Right Hand

1шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

10шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

14шт.

5

230-42112

LOCK NUT,3/4"-10, GA

3/4 in

14шт.

6

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

7

D134787

KNOB

Adjustment; Tie Rod

2шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

2шт.

9

H673638

TRUSS ROD

Backhoe Frame

2шт.

10

110906A1

LARGE PLATE

PLATE, LARGE Tie Rod; Left Hand

1шт.

11

110905A1

LARGE PLATE

PLATE, LARGE Tie Rod; Right Hand

1шт.

12

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

6шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

14

232-4118

NUT,1/2"-13, GC

6шт.

15

A35113

PIN

3/4 x 1-5/8 in

2шт.

16

136-164

COTTER PIN,Int, 5/16" x .120"

5/16 x 2-25/32 in

2шт.

17

H675159

NUT ASSY.

Not Illustrated

1шт.

Выбрано товаров: 17
