Запчасти Case IH 1840 (09-61) - BACKHOE - BUCKETS (D100, D100XR) (09) - CHASSIS/ATTACHMENTS

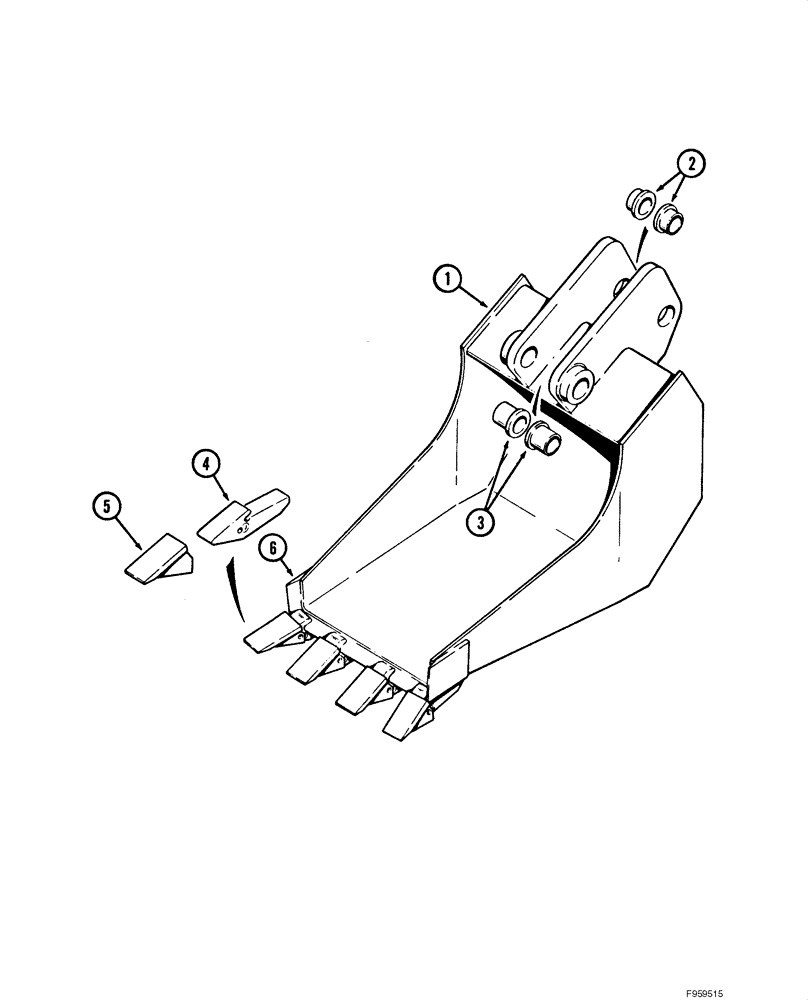

Схема запчастей Case IH 1840 - (09-61) - BACKHOE - BUCKETS (D100, D100XR) (09) - CHASSIS/ATTACHMENTS
4
5
3
6
1
2

Артикул

Название

Примечание

Количество

1

H905109

Bucket, 12 in (305 mm); Bellhole; Order From Machinery Price List; Incl. 2 - 6

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H61283

TOOTH

4шт.

5

T41166

TOOTH

4шт.

6

H61424

HALF BLADE

18 in (458 mm); Bucket

1шт.

1

H905117

Bucket, 18 in (457 mm); Bellhole; Order From Machinery Price List; Incl. 2 - 6; Not Illustrated

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H61283

TOOTH

4шт.

5

T41166

TOOTH

4шт.

6

H61432

HALF BLADE

18 in (457 mm); Bucket

1шт.

1

H905125

Bucket, 22 in (559 mm); Bellhole; Order From Machinery Price List; Incl. 2 - 6; Not Illustrated

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H61283

TOOTH

5шт.

5

T41166

TOOTH

5шт.

6

H61440

HALF BLADE

22 in (559 mm); Bucket

1шт.

1

H905133

Bucket, 36 in (914 mm); Bellhole; Order From Machinery Price List; Incl. 2 - 6; Not Illustrated

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H61283

TOOTH

7шт.

5

T41166

TOOTH

7шт.

6

H61459

HALF BLADE

36 in (914 mm); Bucket

1шт.

Выбрано товаров: 24
