Запчасти Case IH 1840 (09-60) - BACKHOE - BUCKETS (D100, D100XR) (09) - CHASSIS/ATTACHMENTS

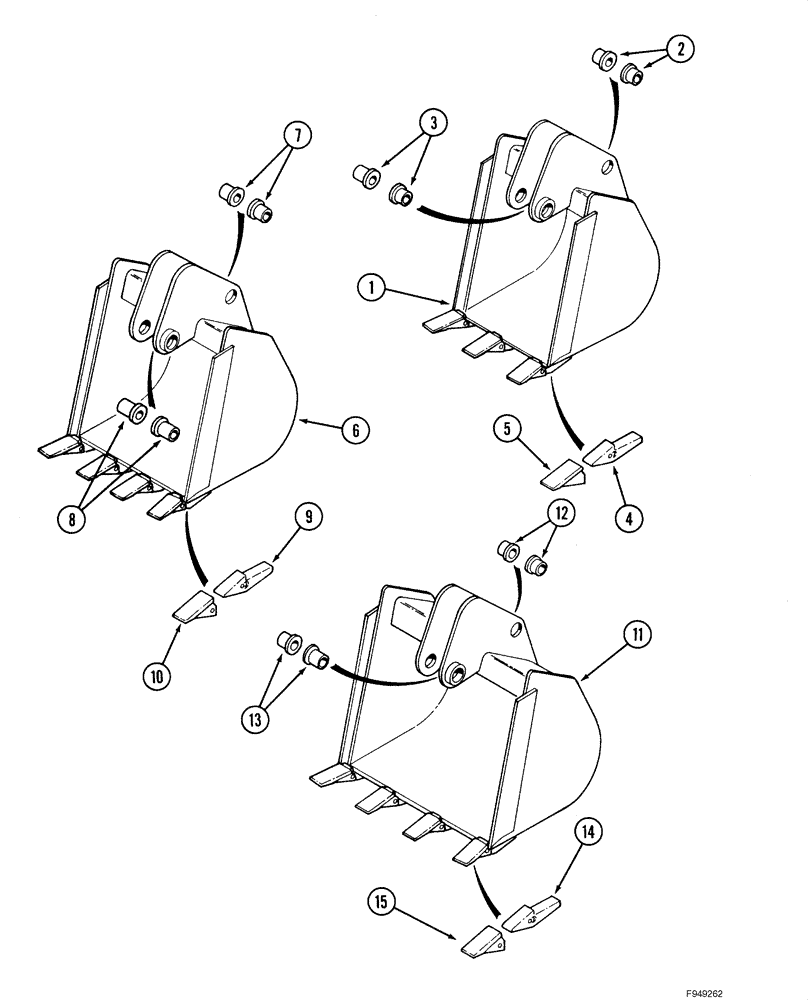

Схема запчастей Case IH 1840 - (09-60) - BACKHOE - BUCKETS (D100, D100XR) (09) - CHASSIS/ATTACHMENTS
14
15
12
8
9
13
10
11
5
6
7
1
2
4
3

Артикул

Название

Примечание

Количество

1

134114A1

BUCKET

Bucket, 13-1/2 in (344 mm); Standard; Order From Machinery Price List; Incl. 2 - 5

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H36657

TOOTH

3шт.

5

T41166

TOOTH

3шт.

6

134115A1

BUCKET

18 in (458 mm); Standard; Order From Machinery Price List; Incl. 7 - 10

1шт.

7

H50823

BUSHING

Cylinder Pin

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

9

H36657

TOOTH

4шт.

10

T41166

TOOTH

4шт.

11

134116A1

BUCKET

Bucket, 24 in (610 mm); Standard; Order From Machinery Price List; Incl. 11 - 15

1шт.

12

H50823

BUSHING

Cylinder Pin

2шт.

13

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

14

H36657

TOOTH

4шт.

15

T41166

TOOTH

4шт.

Выбрано товаров: 15
