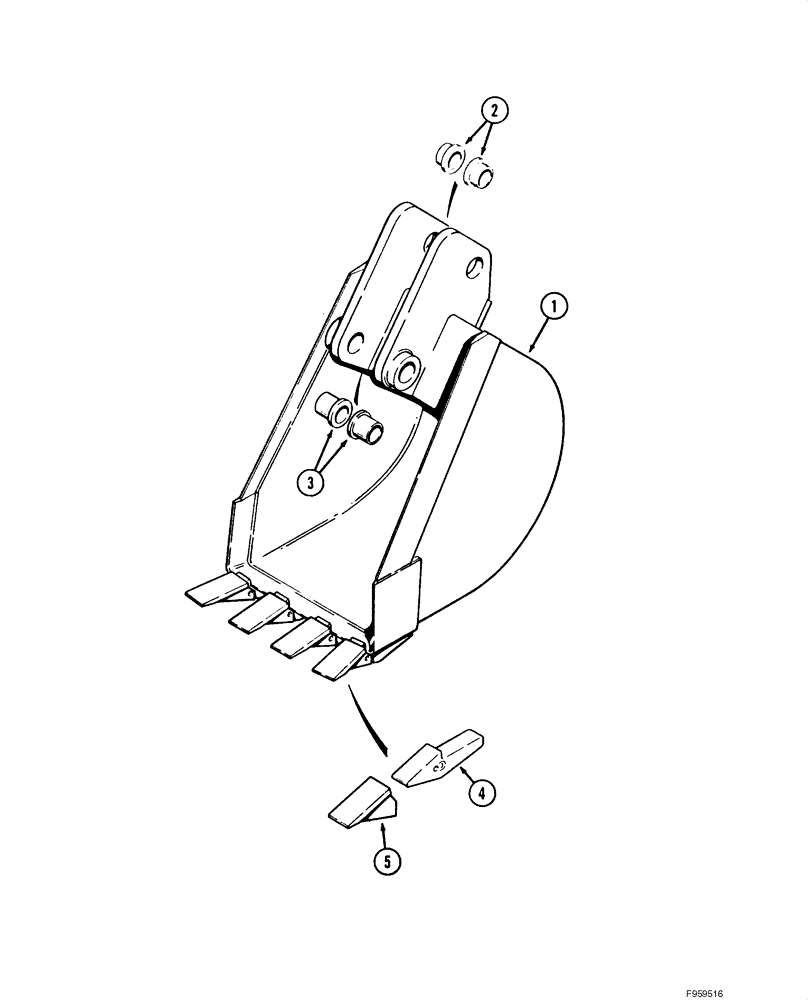

Запчасти Case IH 1840 (09-59) - BACKHOE - BUCKETS (D100, D100XR) (09) - CHASSIS/ATTACHMENTS

1

H905158

BUCKET

Bucket, 12 in (305 mm); Standard; Order From Machinery Price List; Incl. Folllowing 2 - 5

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H36657

TOOTH

4шт.

5

T41166

TOOTH

4шт.

1

H905166

BUCKET

16 in (406 mm); Standard; Order From Machinery Price List; Incl. Folllowing 2 - 5; Not Illustrated

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H36657

TOOTH

4шт.

5

T41166

TOOTH

4шт.

1

H905174

Bucket, 20 in (508 mm); Standard; Order From Machinery Price List; Incl. Folllowing 2 - 5; Not Illustrated

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H36657

TOOTH

4шт.

5

T41166

TOOTH

4шт.

1

H905182

Bucket, 24 in (610 mm); Standard; Order From Machinery Price List; Incl. Folllowing 2 - 5; Not Illustrated

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H36657

TOOTH

4шт.

5

T41166

TOOTH

4шт.

1

H905190

Bucket, 36 in (914 mm); Standard; Order From Machinery Price List; Incl. Folllowing 2 - 5

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H36657

TOOTH

7шт.

5

T41166

TOOTH

7шт.
