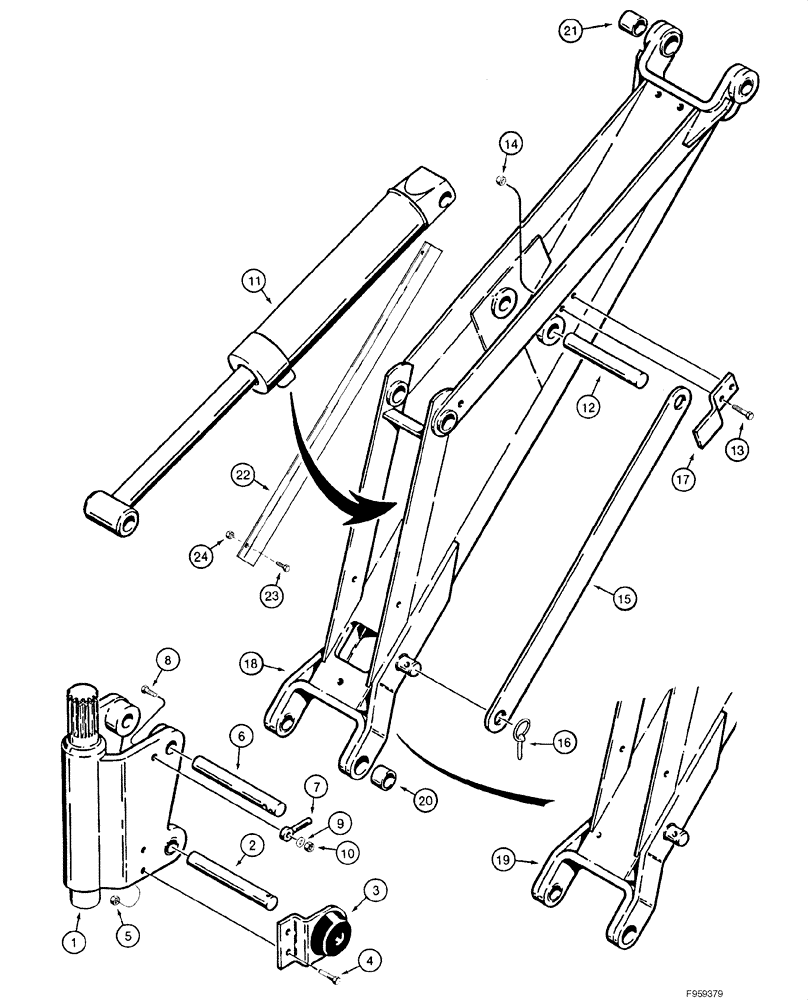

Запчасти Case IH 1840 (09-56) - BACKHOE - SWING TOWER AND BOOM (D100 OR D100XR) (09) - CHASSIS/ATTACHMENTS

1

H672641

POST

Swing; Backhoe; See Figure 09-55

1шт.

2

H50526

PIN

Boom Pivot; Boom To Swing Tower

1шт.

3

H625756

BRACKET

Pin Retainer And Swing Cushion

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

5

230-4218

LOCK NUT,1/2"-13, GA

1/2 in

4шт.

6

H56945

AXLE PIN

Boom Cylinder Rod End

1шт.

7

H313981

PIN

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

10

232-4116

NUT,3/8"-16, GC

1шт.

11

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

3 (76) ID x 14-5/8 in (372 mm) stroke; Boom; See Figure 08-44

1шт.

12

H50690

AXLE PIN,28.57mm OD x 171.45mm L

Closed End Of Boom Cylinder To Boom

1шт.

13

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

14

232-4116

NUT,3/8"-16, GC

4шт.

15

H56952

DRAG LINK

Transport

2шт.

16

A30338

PIN

2шт.

17

H60616

AXLE PIN

2шт.

H514620

BOOM

D100 Backhoe Only

1шт.

H644922

BOOM

D100XR Backhoe Only; Incl. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

Used With H514620

1шт.

19

NSS

NOT SOLD SEPARAT

Boom; Used With H644922

1шт.

20

H50435

BUSHING,28.91mm ID x 36.63mm OD x 25.4mm L

Boom Pivot

2шт.

21

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

22

H421800

FRAME

Backhoe; Boom; D100XR Backhoe Only

2шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

D100XR Backhoe Only

4шт.

24

230-4215

NUT,5/16"-18, GA

D100XR Backhoe Only

4шт.
