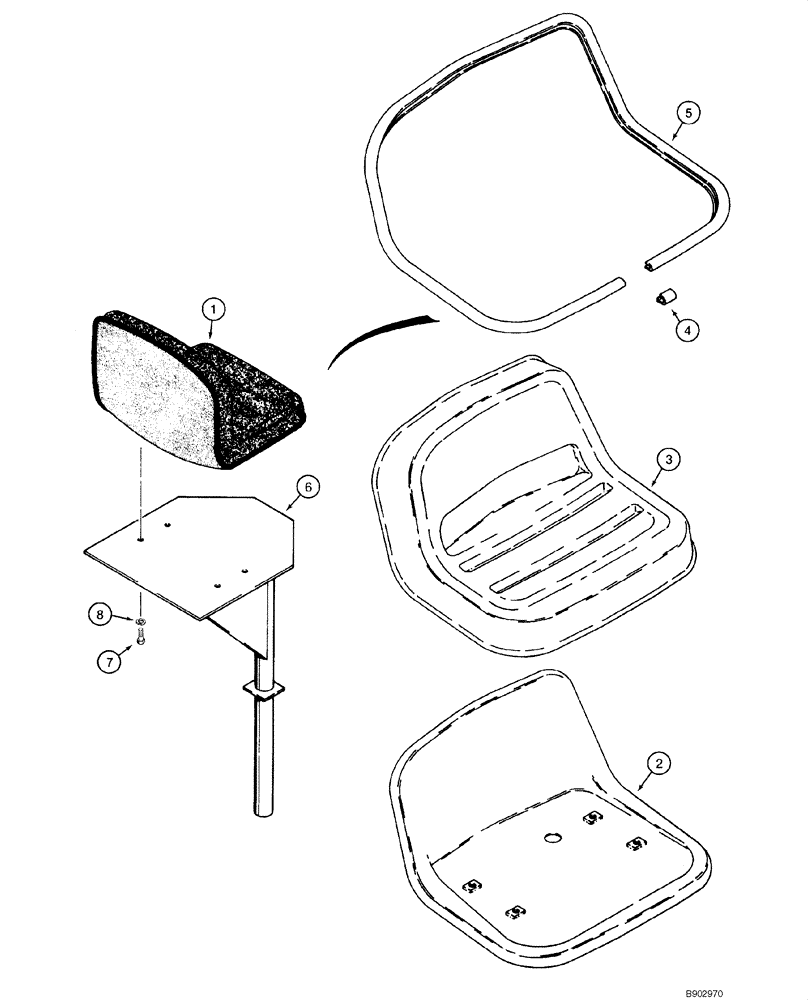

Запчасти Case IH 1840 (09-54) - BACKHOE - SEAT MOUNTING (D100, D100XR) (09) - CHASSIS/ATTACHMENTS

1

H436146

SEAT

Operators; Used On Models With Brown Trim

1шт.

1

179332A1

SEAT

Operators; Incl. 2 - 5; Used On Models With Gray Trim; No Longer Available, Order 440454A1

1шт.

1

440454A1

SEAT

Wheat; Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Pan; Seat

1шт.

N13696

SET

Kit, Seat; Incl. 3 - 5; No Longer Available, Order H429316

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion; Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Clip; Seat Trim

1шт.

5

NSS

NOT SOLD SEPARAT

Trim; Seat

1шт.

6

D134779

SUPPORT

Seat Mounting

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.
