Запчасти Case IH 1840 (09-53) - BACKHOE - CONTROL TOWER (D100, D100XR) (09) - CHASSIS/ATTACHMENTS

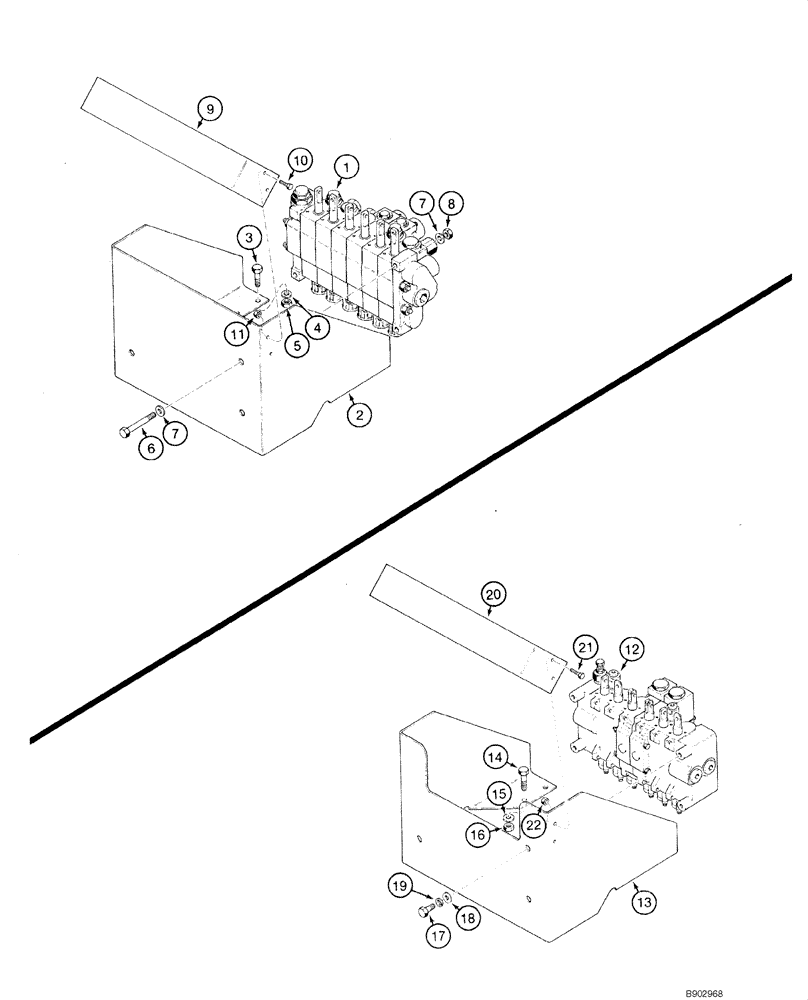

Схема запчастей Case IH 1840 - (09-53) - BACKHOE - CONTROL TOWER (D100, D100XR) (09) - CHASSIS/ATTACHMENTS
2
5
15
4
13
8
14
21
20
16
3
7
11
18
12
9
19
1
10
6
17
7
22

Артикул

Название

Примечание

Количество

1

H672636

VALVE

Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, REF 12

1шт.

2

H434424

BRACKET

Valve Mounting

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

5

230-4216

LOCK NUT,3/8"-16, GA

4шт.

6

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

8

230-4216

LOCK NUT,3/8"-16, GA

3шт.

9

H434427

LARGE PLATE

PLATE, LARGE Decal Mounting; No Longer Available, Order H437849, REF 20

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

11

230-4214

LOCK NUT,1/4"-20, GA

4шт.

12

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-41 - 08-43; See Figure 08-57A

1шт.

12

87400023

VALVE

Control; Backhoe; Replaces H674300; See Figure 08-57A

1шт.

13

H437850

BRACKET

Valve Mounting

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

16

230-4216

LOCK NUT,3/8"-16, GA

4шт.

17

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

18

H426775

WASHER

3шт.

19

492-11031

LOCK WASHER,5/16"

3шт.

20

H437849

LARGE PLATE

PLATE, LARGE Decal Mounting

1шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

22

230-4214

LOCK NUT,1/4"-20, GA

4шт.

Выбрано товаров: 23
