Запчасти Case IH 1840 (09-49) - DECALS - DANISH (09) - CHASSIS/ATTACHMENTS

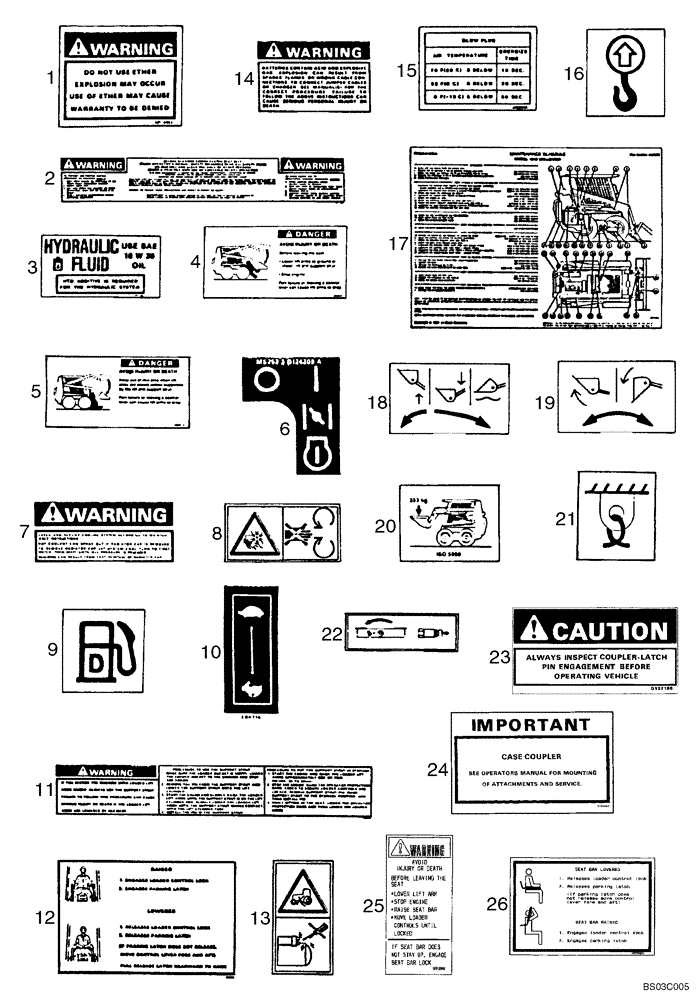

Схема запчастей Case IH 1840 - (09-49) - DECALS - DANISH (09) - CHASSIS/ATTACHMENTS
12
6
23
17
8
19
13
7
4
5
20
18
15
16
26
11
21
25
9
24
2
3
10
1
22
14

Артикул

Название

Примечание

Количество

2

175476A1

DECAL

Warning, Before Starting Engine, Fasten Seat Belt

1шт.

3

175514A2

DECAL

Hydraulic Fluid, Use SAE 15W/40 Oil; Replaces 175514A1

1шт.

4

175488A1

DECAL

Danger, Keep Out Of This Area

1шт.

5

175484A1

DECAL

Danger, Before Leaving The Seat

1шт.

6

D124209

DECAL

Ignition Switch Pattern; Models With Brown Trim; Replaced By 355236A1; See Figure 09-40, REF 8

1шт.

7

175505A1

DECAL

Warning, Check And Service Cooling System

1шт.

8

175504A1

DECAL

Warning Rotating Fan

1шт.

9

139879A1

DECAL

Diesel Fuel

1шт.

10

E84716

DECAL

Throttle, Slow/Fast; Models With Brown Trim; Replaces 321-4867; See Figure 09-40, REF 5

1шт.

10

178662A1

DECAL

Throttle, Slow/Fast; Models With Gray Trim; See Figure 09-40, REF 5

1шт.

11

175480A1

DECAL

Warning, If You Service The Machine With The Loader Arms Raised

1шт.

12

175638A1

DECAL

Raised/Lowered; Parking Latch And Operators Restraint Instructions

1шт.

13

175509A1

WARNING DECAL

Jump Start

1шт.

14

321-6811

DECAL

Warning, Batteries Contain Acid And Explosive Gas

1шт.

15

175614A1

DECAL

Glow Plug; Diesel Models

1шт.

16

139729A1

DECAL

Lift Only

1шт.

17

175530A1

DECAL

Maintenance Schedule, Model 1840 Uni-Loader

1шт.

18

139592A1

DECAL

Loader Arm Control; No Longer Available, Order 256547A1; See Figure 09-40, REF 4A

1шт.

19

139593A1

DECAL

Bucket Control; No Longer Available, Order 256548A1; See Figure 09-40, REF 3A

1шт.

20

139949A1

DECAL

Operating Capacity

1шт.

21

139728A1

DECAL

Tie Down

1шт.

22

140026A1

DECAL

Auxiliary Hydraulics; If Used

1шт.

23

175492A1

DECAL

Coupler

1шт.

24

175496A2

DECAL

Coupler

1шт.

25

175500A1

DECAL

Warning Before Leaving Seat

1шт.

26

175472A1

DECAL

Seat Bar Lowered/Seat Bar Raised

1шт.

E137262

DECAL

ROPS, EEC Certification; Models With Brown Trim; Not Illustrated

1шт.

184248A1

DECAL

ROPS, EEC Certification; Models With Gray Trim; Not Illustrated

1шт.

Выбрано товаров: 28
