Запчасти Case IH 1840 (09-48) - DECALS - SWEDISH (09) - CHASSIS/ATTACHMENTS

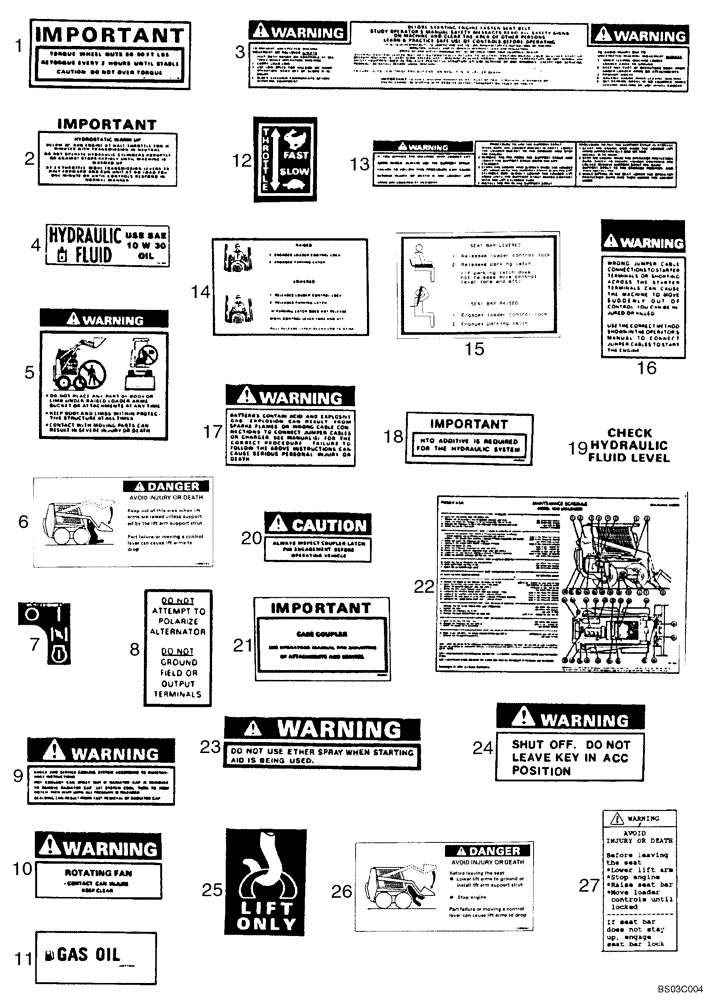

Схема запчастей Case IH 1840 - (09-48) - DECALS - SWEDISH (09) - CHASSIS/ATTACHMENTS
1
18
15
6
9
12
21
23
20
10
22
17
14
27
11
8
19
26
4
13
16
5
24
2
3
25
7

Артикул

Название

Примечание

Количество

3

196995A1

DECAL

Warning, Before Starting Engine, Fasten Seat Belt; Swedish

1шт.

4

196994A2

DECAL

Hydraulic Fluid, Use SAE 15W/40 Oil

1шт.

6

196998A1

DECAL

Danger, Keep Out Of This Area

1шт.

7

E99528

DECAL

Ignition Switch Pattern; Replaced By 355236A1; See Figure 09-40, REF 8

1шт.

9

196992A1

ADHESIVE

Warning, Check And Service Cooling System

1шт.

10

321-6796

DECAL

Warning, Rotating Fan; Replaced By 175504A1; See Figure 09-40, REF 9

1шт.

11

139879A1

DECAL

Diesel Fuel; Replaced By 139879A1; See Figure 09-40, REF 1

1шт.

12

321-4470

DECAL

Throttle, Slow/Fast; Replaced By 178662A1; See Figure 09-40, REF 5

1шт.

13

196996A1

ADHESIVE

Warning, If You Service The Machine With The Loader Arms Raised

1шт.

15

196993A1

ADHESIVE

Seat Bar Lowered/Seat Bar Raised

1шт.

17

196990A1

ADHESIVE

Warning, Batteries Contain Acid And Explosive Gas

1шт.

19

139880A1

DECAL

Check Hydraulic Fluid Level; Replaced By 259914A1; See Figure 09-40, REF 2

1шт.

20

196999A1

ADHESIVE

Caution, Always Inspect Coupler - Latch Pin Engagement

1шт.

21

197000A2

DECAL

Important, Case Coupler; Replaces D136744

1шт.

22

197003A1

DECAL

Maintenance Schedule, Model 1840 Uni-Loader

1шт.

26

196997A1

ADHESIVE

Danger, Before Leaving The Seat

1шт.

27

197001A1

DECAL

Warning, Before Leaving The Seat

1шт.

Выбрано товаров: 17
