Запчасти Case IH 1840 (09-40) - DECALS (09) - CHASSIS/ATTACHMENTS

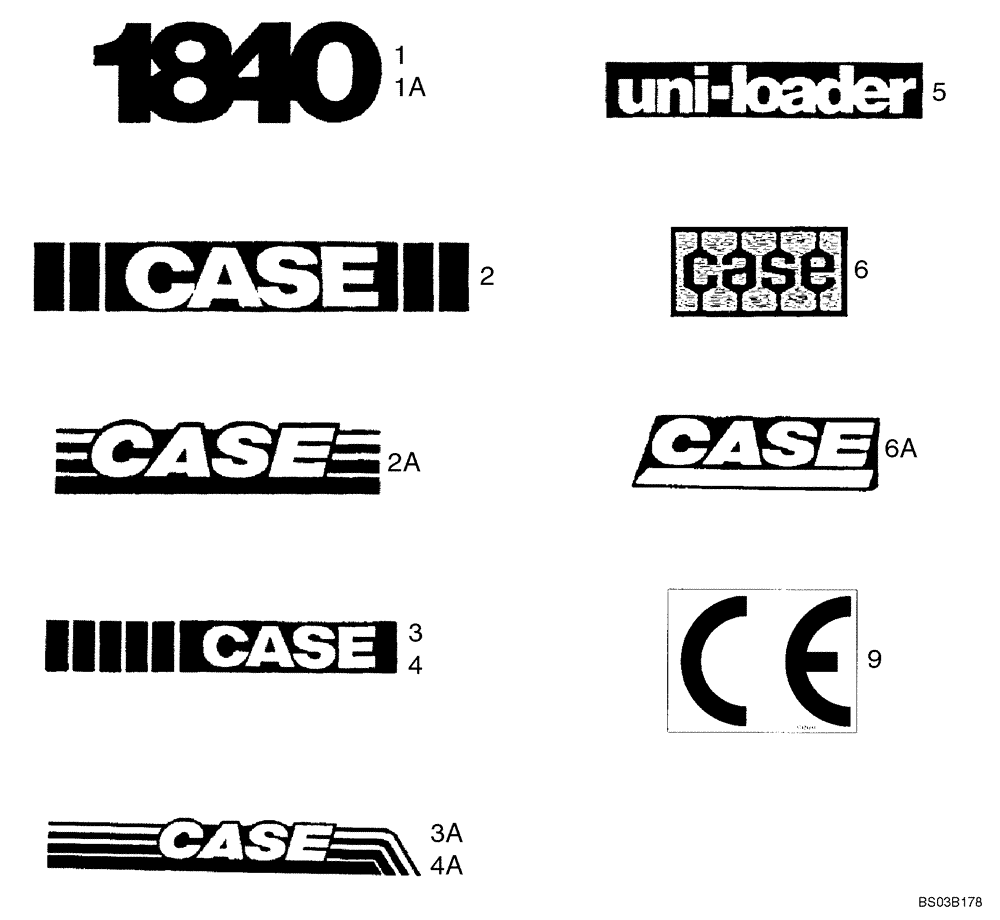

Схема запчастей Case IH 1840 - (09-40) - DECALS (09) - CHASSIS/ATTACHMENTS
5
9
6
1a
2a
4
6a
3
2
4a
1
3a

Артикул

Название

Примечание

Количество

1

H436199

DECAL

Model; Brown

2шт.

1a

179126A1

DECAL

Model; Gray

2шт.

2

H427963

DECAL

Case, With Treads; Rear Door; Brown

1шт.

2a

179182A2

DECAL

Case, With Stripes; Rear Door; Gray; Replaces D124236

1шт.

3

D138196

DECAL

Case, With Treads; Right Hand; Brown

1шт.

3a

179181A2

DECAL

Case, With Stripes; Right Hand; Gray

1шт.

4

D138195

DECAL

Case, With Treads; Left Hand; Brown

1шт.

4a

179180A2

DECAL

Case, With Stripes; Left Hand; Gray; Not Illustrated

1шт.

5

D123964

DECAL

Uni-Loader; Brown

2шт.

6

321-4739

EMBLEM

CASE; Brown

1шт.

6a

186989A1

EMBLEM

CASE; Gray

1шт.

7

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Not Illustrated

2шт.

8

D55216

PAD,2" x 9"

Not Illustrated

2-4шт.

9

176262A1

DECAL

60 mm; CE Symbol; Europe Only

1шт.

10

H439275

SEALING STRIP

76 mm (3 in); Cut From H433994; Not Illustrated

1шт.

Выбрано товаров: 15
