(09-38) - REAR VIEW MIRROR - ITALIAN (D.G.M.)

Запчасти Case IH 1840 (09-38) - REAR VIEW MIRROR - ITALIAN (D.G.M.) (09) - CHASSIS/ATTACHMENTS

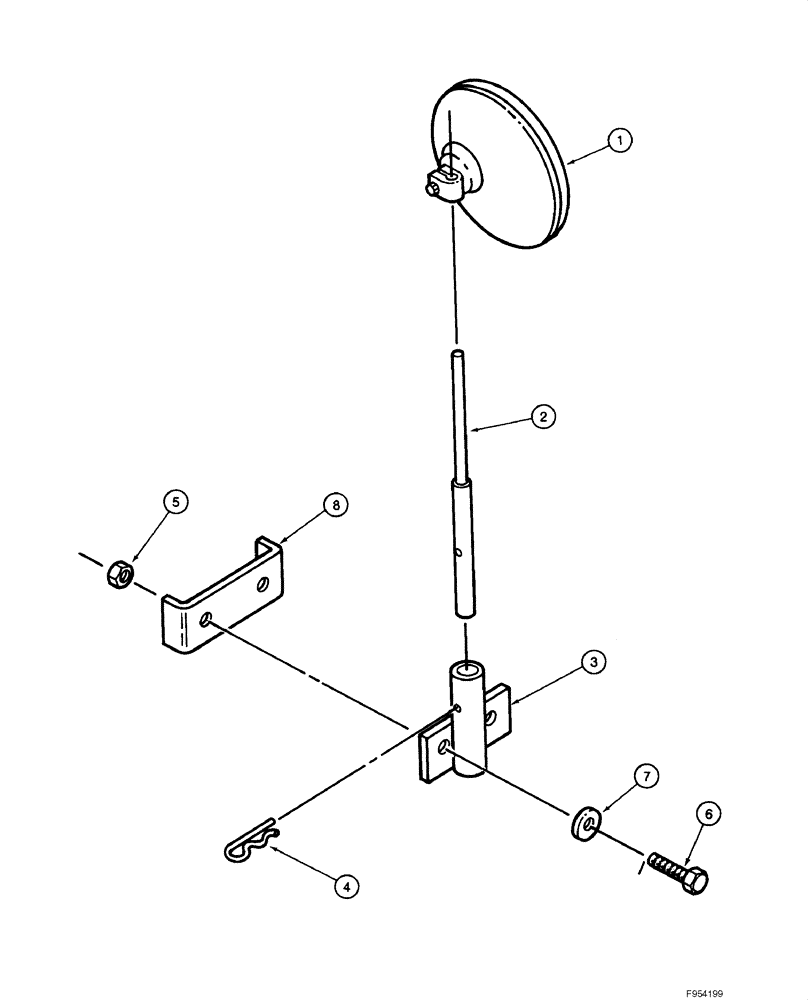

Схема запчастей Case IH 1840 - (09-38) - REAR VIEW MIRROR - ITALIAN (D.G.M.) (09) - CHASSIS/ATTACHMENTS
7
6
2
1
3
4
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

E46543

MIRROR

Rear View

1шт.

1

E99967

REAR VIEW MIRROR

Rear View

1шт.

2

113070A1

BRACKET

Mirror Mounting

1шт.

3

113055A1

BRACKET

Mirror Mounting

1шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

8

113071A1

BRACKET

Mounting

1шт.
