Запчасти Case IH 1840 (09-35) - SPECIAL PARTS FOR GERMANY - TBG APPROVED, JAF0098065 - (09) - CHASSIS/ATTACHMENTS

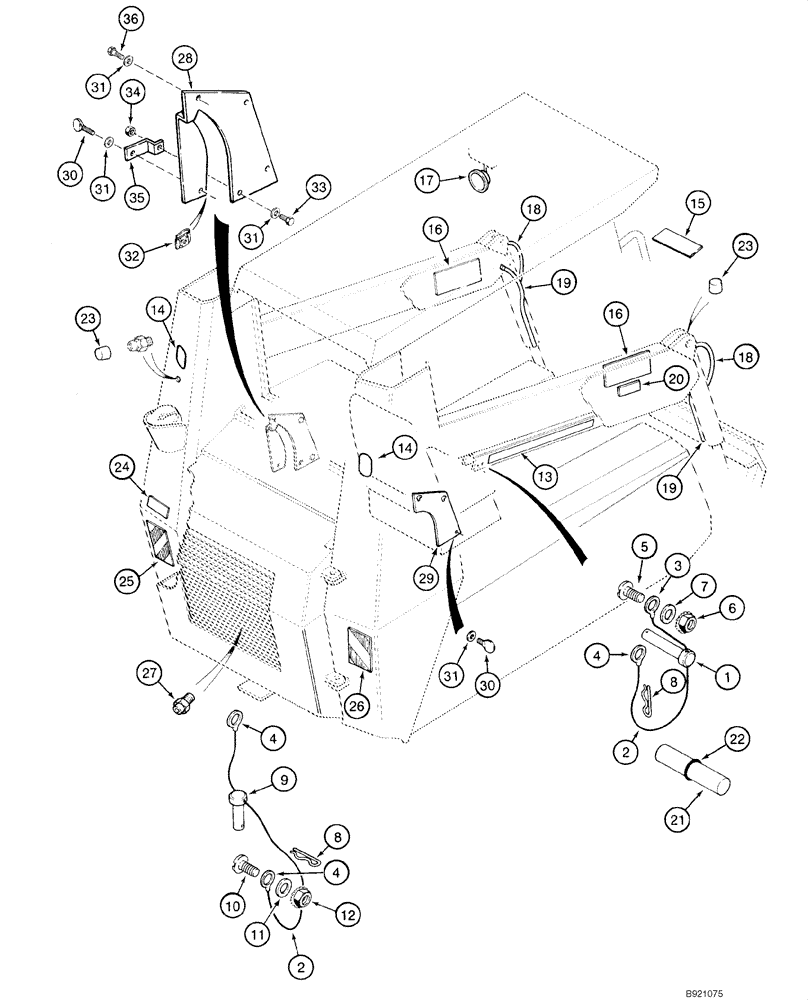

Схема запчастей Case IH 1840 - (09-35) - SPECIAL PARTS FOR GERMANY - TBG APPROVED, JAF0098065 - (09) - CHASSIS/ATTACHMENTS
8
14
1
22
18
2
18
31
33
32
15
30
7
31
4
12
16
16
25
23
5
8
11
31
14
36
28
35
30
2
6
21
19
24
31
26
29
9
3
10
27
20
4
17
23
34
4
19
13

Артикул

Название

Примечание

Количество

1

H439165

PIN,9.5mm OD x 86mm L

Strut Lock

1шт.

2

H439278

ELECTRICAL WIRE

WIRE Strut And Door Pin Lock

2шт.

3

223-56

TERMINAL CONNECTOR,10 - 12

10-12 wire x 3/8 in

1шт.

4

223-54

TERMINAL CONNECTOR,10 - 12

10-12 wire x 1/4 in

3шт.

5

473-13112

SCREW,Slotted Flat Hd, 5/16"-18 x 3/4"

5/16 NC x 3/4 in

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

8

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

2шт.

9

H439276

PIN,12mm OD x 50mm L

Rear Door Lock

1шт.

10

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

1шт.

11

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

12

825-1405

NUT,M5, Cl 8

1шт.

13

H439134

DECAL

600 x 70 mm; Warning

1шт.

14

H439133

DECAL

Grease Fitting Location; German

6шт.

15

D55216

PAD,2" x 9"

1шт.

16

321-6181

DECAL

Warning; Loader Arm; German

2шт.

17

E99967

REAR VIEW MIRROR

Rear View; Wide Angle

1шт.

18

E20503

HOSE ASSY.

15 in (381 mm); Bucket Cylinder; At Closed End

2шт.

19

E20504

HOSE ASSY.

16-15/16 in (430 mm); Bucket Cylinder; At Rod End

2шт.

20

106868A1

DECAL

Warning; Operator Exit

1шт.

21

E20152

BAG-TOOL

BAG W/TOOL KIT

1шт.

22

E20151

STRAP

Tool Bag

1шт.

23

E82545

CAP

16шт.

24

321-2299

DECAL

Engine Access

1шт.

25

E99288

REFLECTOR

Adhesive Type; Left Hand Side

1шт.

26

E99427

REFLECTOR

Adhesive Type; Right Hand Side

1шт.

27

E98294

PLUG

Oil Drain

1шт.

28

H439166

PANEL

Engine; Left Hand

1шт.

29

H439167

PANEL

Engine; Right Hand

1шт.

30

H65847

THUMB SCREW,5/16" - 18 x 3/4"

Engine Panel

4шт.

31

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

9шт.

32

H346650

NUT

5/16 in

7шт.

33

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

34

232-4115

LOCK NUT,5/16"-18, GC

1шт.

35

H439305

BRACKET

Panel

1шт.

36

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

111767A1

DECAL

Hydraulic Cap

1шт.

124607A1

COVER

Key

2шт.

Выбрано товаров: 38
