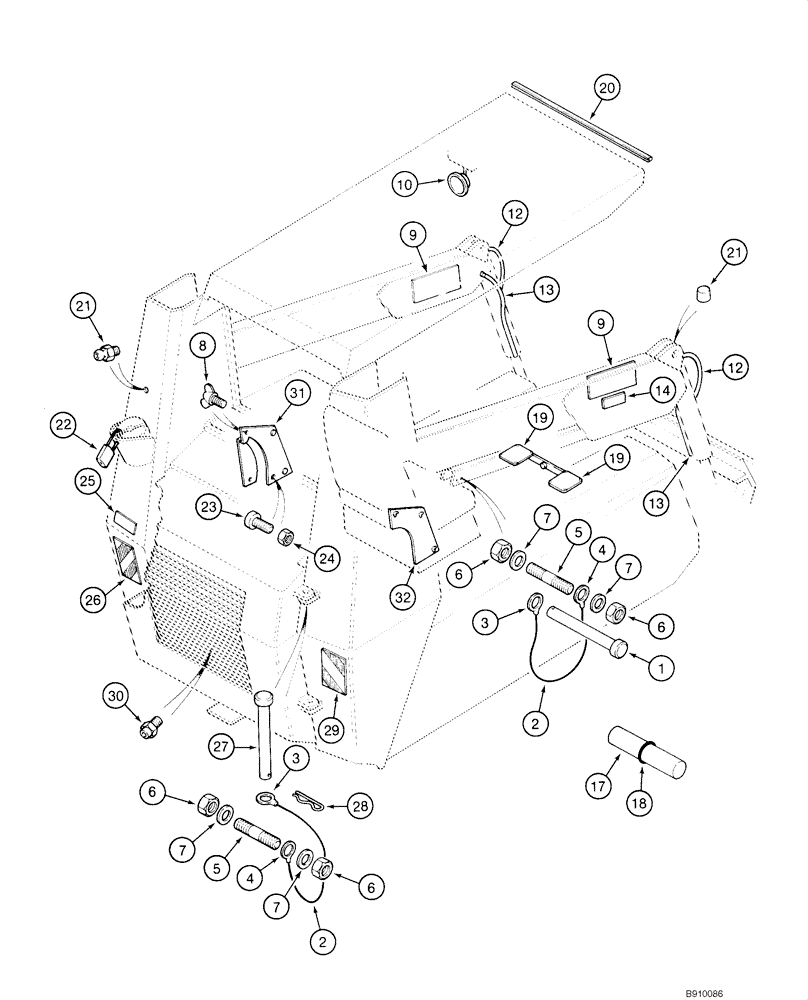

Запчасти Case IH 1840 (09-34) - SPECIAL PARTS FOR GERMANY - TBG APPROVED, - JAF0098065 (09) - CHASSIS/ATTACHMENTS

1

H439165

PIN,9.5mm OD x 86mm L

Strut Lock

1шт.

2

E99861

TUBE

2шт.

3

E98860

SNAP RING

Cable

2шт.

4

E98858

SNAP RING

Cable

2шт.

5

E99004

STUD

6 - 1.0 x 16 mm; Cable To Strut And Rear Door

2шт.

6

825-1406

NUT,M6, Cl 8

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

E21001

FASTENER

Access Door; Replaces E99287

8шт.

9

321-6181

DECAL

Warning; Loader Arm; German

2шт.

10

E99967

REAR VIEW MIRROR

Rear View; Wide Angle

1шт.

12

E20503

HOSE ASSY.

15 in (381 mm); Bucket Cylinder; At Closed End

2шт.

13

E20504

HOSE ASSY.

16-15/16 in (430 mm); Bucket Cylinder; At Rod End

2шт.

14

321-4038

DECAL

Warning; Operator Exit; German; No Longer Available, Order 106868A1, See Figure 09-35, REF 20

1шт.

17

E20152

BAG-TOOL

BAG W/TOOL KIT

1шт.

18

E20151

STRAP

Tool Bag

1шт.

19

E98298

PAD

Non-Slip; Pedal

2шт.

20

E20506

PROTECTION STRIP

Contact; ROPS Roof

1шт.

21

E82545

CAP

10шт.

22

E98654

CAP

Fuel Filler; Incl. Keys; Replaces E20507

1шт.

23

E98853

SCREW

8 - 1.25 x 20 mm

1шт.

24

E98788

LOCK NUT

8 mm - 1.25

1шт.

25

321-2299

DECAL

Engine Access

1шт.

26

E99288

REFLECTOR

Adhesive Type; Left Hand Side

1шт.

27

H439276

PIN,12mm OD x 50mm L

Rear Door Lock

1шт.

28

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

1шт.

29

E99427

REFLECTOR

Adhesive Type; Right Hand Side

1шт.

30

E98294

PLUG

Oil Drain

1шт.

31

E20431

PANEL

Left Hand Door; Engine Access; See Figure 09-32

1шт.

32

E20588

PANEL

Right Hand Door; Engine Access

1шт.
