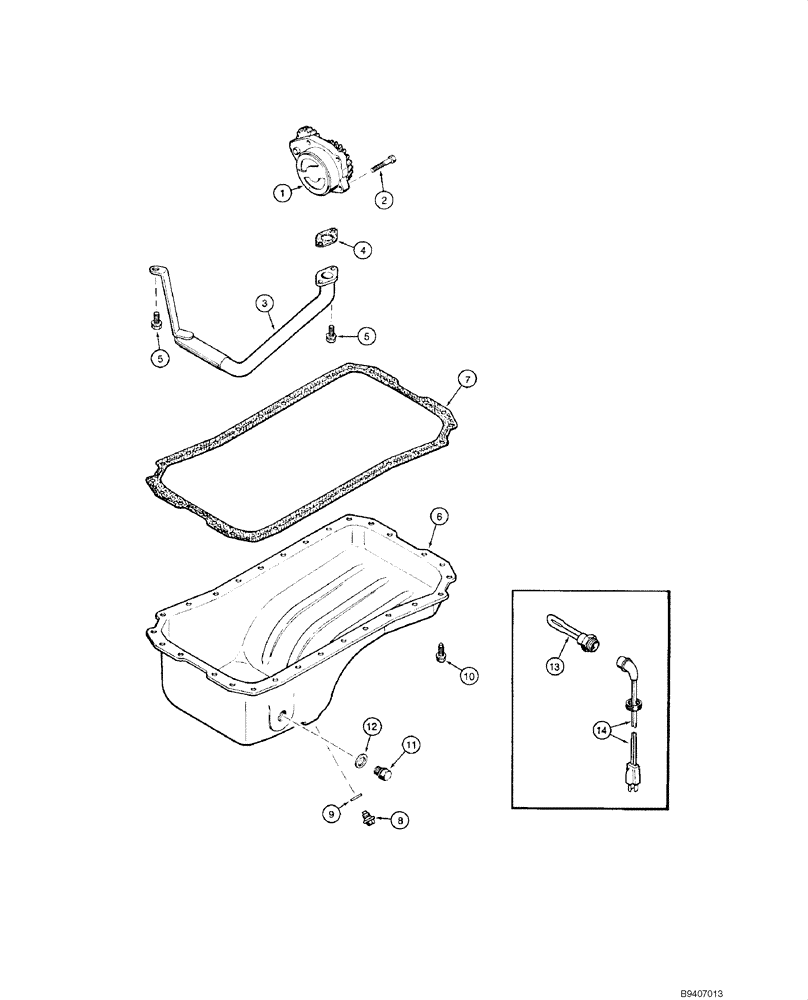

Запчасти Case IH 1840 (02-16) - OIL PUMP AND OIL PAN, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

CASJ937028

PUMP, ENGINE OIL

Replaces J932449

1шт.

1

JR937028

REMAN-ENG OIL PUMP

1840

1шт.

1

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

J900677

BOLT,Hex

8 - 1.25 x 30 mm

4шт.

3

J905206

TUBE,1" OD

Suction

1шт.

4

J938157

GASKET,1.2mm Thk

Oil Suction Tube; Replaces J931349

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

Gasket; Oil Pan; Order A77673

1шт.

8

J924147

PLUG,M18 x 1.5

12 mm - 1.5; Drain

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

8 - 1.25 x 25 mm

28шт.

11

J924148

PLUG,M22 x 1.5

22 mm - 1.5; Heater Hole

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Oil Pan; Incl. REF 4, 7, 9

1шт.

A77490

KIT

Heater, Engine Oil; Incl. 13, 14; Also Order J902425, REF 12

1шт.

13

J904380

UNIT HEATER

Element, 120 volt

1шт.

14

196466A1

ELECTRIC CABLE

Engine Block Heater

1шт.

13

J285916

HEATER

240V 150W; Europe Only

1шт.

14

J905114

ELECTRIC CABLE

1829 mm (72"); Use with J285916

1шт.
