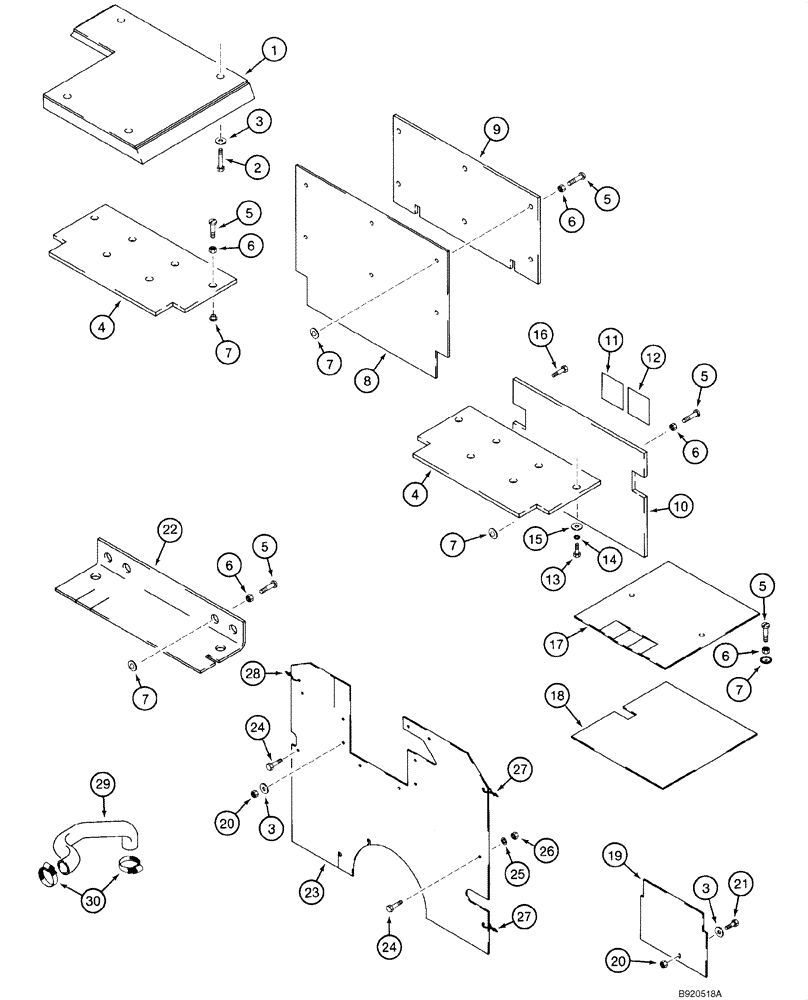

Запчасти Case IH 1840 (09-29B) - NOISE KIT (EUROPE, - JAF0098065), 89DB EEC APPROVED (09) - CHASSIS/ATTACHMENTS

1

102965A1

INSULATOR

Roof

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

3

D136108

WASHER

11шт.

4

109289A1

NOISE PROTECTION

Seat Plate

2шт.

5

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

20шт.

6

825-1405

NUT,M5, Cl 8

18шт.

7

E99641

CAP

End Cover

18шт.

8

109736A1

INSULATOR

Engine; Firewall; Outer

1шт.

9

E99949

PANEL

Engine; Firewall; Inner

1шт.

10

E20172

INSULATOR

Heel Plate

1шт.

11

E20702

DECAL

Operator Ear; 89 LPA; Models With Brown Trim

1шт.

11

178666A1

DECAL

Operator Ear; 89 LPA; Models With Gray Trim

1шт.

12

E20701

DECAL

Bystander; 106 LWA; Models With Brown Trim

1шт.

12

178667A1

DECAL

Bystander; 106 LWA; Models With Gray Trim

1шт.

13

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 NC x 1-3/8 in

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

16

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 NC x 1-1/4 in; Auxiliary Control Valve

2шт.

17

E20167

FLOOR MAT

Floor Plate

1шт.

18

E20173

PANEL

Floor Plate

1шт.

19

109285A1

CURTAIN

Battery Box

1шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

21

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

22

E20096

PANEL

Rear Door; Lower

1шт.

23

109284A2

CURTAIN

Engine

1шт.

24

413-538

BOLT,Hex, 5/16" - 18 x 2-3/8", Gr 5

5/16 NC x 2-3/8 in

2шт.

25

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

29

H437006

HOSE

Radiator; Upper

1шт.

30

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.
