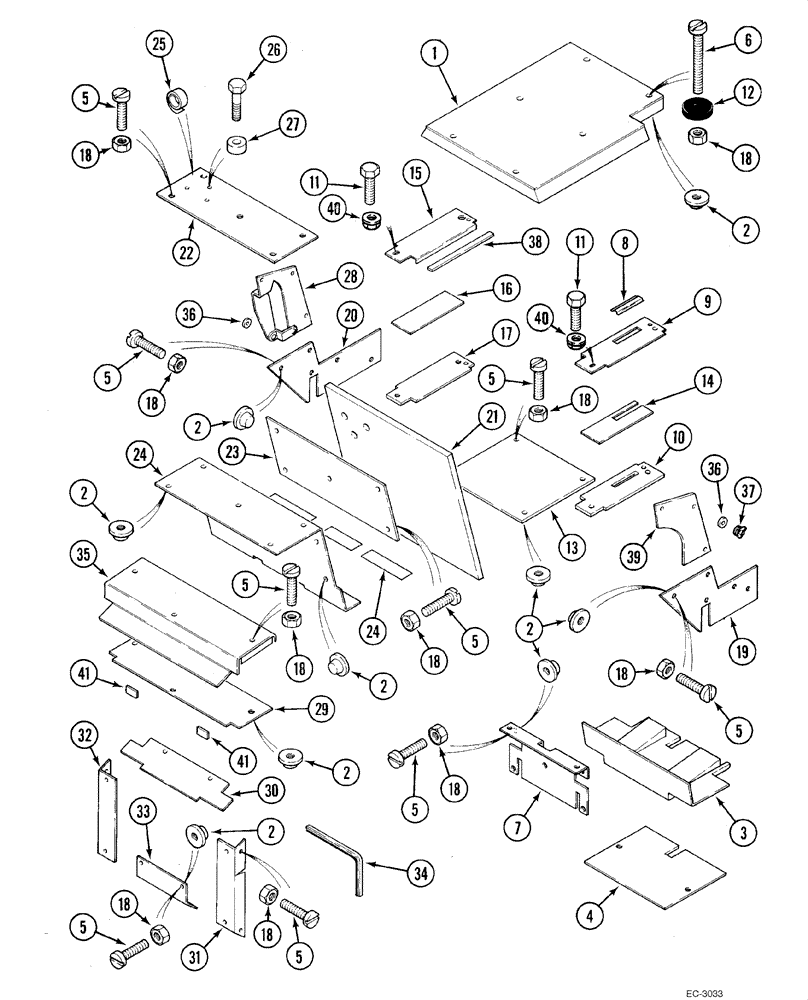

Запчасти Case IH 1840 (09-29) - NOISE KIT (EUROPE, - JAF0098065) (09) - CHASSIS/ATTACHMENTS

1

E20407

ROOF LINING

Cab Roof

1шт.

2

E99641

CAP

End Cover

50шт.

3

E20410

FLOOR MAT

Cab

1шт.

4

E20411

COVER

Noise Reduction

1шт.

5

E20684

SCREW

5 - 0.8 x 25 mm

44шт.

6

E20617

SCREW,Sl Pan Hd, M5 x 60mm, Cl 12.9

5 - 0.8 x 60 mm

6шт.

7

E20691

COVER

Heel Plate

1шт.

8

E99619

STRIP

Side Plate; Throttle Lever Slot

2шт.

9

H435911

PLATE

Right Hand Closure; No Longer Available, Order 121042A1, Figure 09-16, REF 9

1шт.

10

E20416

COVER

Seat; Side Panel; Right Hand; Cut From E20418, REF 13

1шт.

11

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 NC x 1-1/4 in

4шт.

12

103777A1

SEALING WASHER

Replaces E20618

6шт.

13

E20418

COVER

Seat Plate

1шт.

14

E20419

COVER

Seat; Side Plate; Right Hand

1шт.

15

H435912

PLATE

Left Hand Closure

1шт.

16

E20421

COVER

Seat; Side Plate; Left Hand

1шт.

17

E20422

COVER

Seat; Side Plate; Left Hand; Cut From E20418, REF 13

1шт.

18

825-1405

NUT,M5, Cl 8

50шт.

19

E20688

COVER

Fender Side; Right Hand

1шт.

20

E20689

COVER

Fender Side

1шт.

21

E20427

LINING

Cab; Firewall; No Longer Available, Order 133814A2, Figure 09-30, REF 8

1шт.

22

E20428

COVER

Firewall; Engine Side; Upper

1шт.

23

E20429

COVER

Firewall; Engine Side; Lower

1шт.

24

E20430

COVER

Engine; Firewall

1шт.

25

E99648

STRIP

Velcro

1шт.

26

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

3шт.

27

E98716

SPACER

3шт.

28

E20431

PANEL

Engine Access; Left Hand Door

1шт.

29

E20433

COVER

Rear; Top Cover

1шт.

30

E99614

LINING

Rear Door; Top

1шт.

31

E99615

LINING

Rear Door; Right Hand Side

1шт.

32

E99616

LINING

Rear Door; Left Hand Side

1шт.

33

E99617

LINING

Rear Door; Bottom

1шт.

34

E20526

STRIP

730 mm

1шт.

35

E20570

PLATE

Rear Top Cover

1шт.

36

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

37

E99287

FASTENER

Access Panel

7шт.

38

E99618

STRIP

Seat Plate

2шт.

39

E20588

PANEL

Right Hand Door; Engine Access

1шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

41

D127335

CATCH

Magnetic

2шт.
