Запчасти Case IH 1840 (09-27) - REAR WINDOW AND SCREEN CANVAS (EUROPE, - JAF0098065) (09) - CHASSIS/ATTACHMENTS

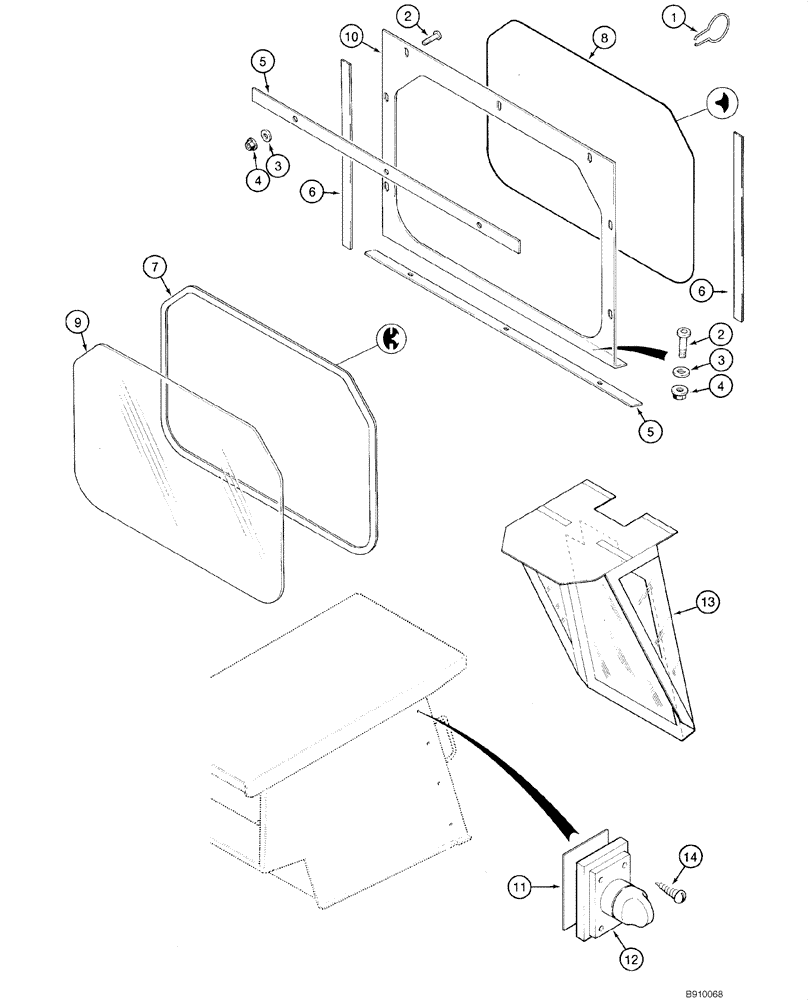

Схема запчастей Case IH 1840 - (09-27) - REAR WINDOW AND SCREEN CANVAS (EUROPE, - JAF0098065) (09) - CHASSIS/ATTACHMENTS
7
5
5
13
6
4
1
14
9
2
12
3
8
11
3
6
10
4

Артикул

Название

Примечание

Количество

1

E99001

RING

Seal Removal

1шт.

2

E98854

SCREW

8 - 1.25 x 25 mm

10шт.

3

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

10шт.

4

1094248R1

NUT

8 mm - 1.25; Replaces E98788

10шт.

5

E20364

PROTECTION STRIP

Frame Seal

2шт.

6

E20365

PROTECTION STRIP

Frame

2шт.

7

E20366

PROTECTION STRIP

Glass To Frame; Cut From RK692078

1шт.

8

E20367

FILLING STRIP

Filter; Glass Moulding; Cut From RK692079

1шт.

9

107145A1

GLASS

Rear

1шт.

10

E20359

PANEL

Rear Window

1шт.

11

E99794

TAPE

1 in wide

11шт.

12

E99845

PLATE

Screen Retainer

11шт.

13

E20669

SCREEN

Canvas

1шт.

14

263-1056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

No. 10-16 x 3/8 in

22шт.

RK692078

DOOR SEAL

Bulk

1шт.

RK692079

SEAL, GLASS

Bulk 1176 in (29870 mm)

1шт.

Выбрано товаров: 16
