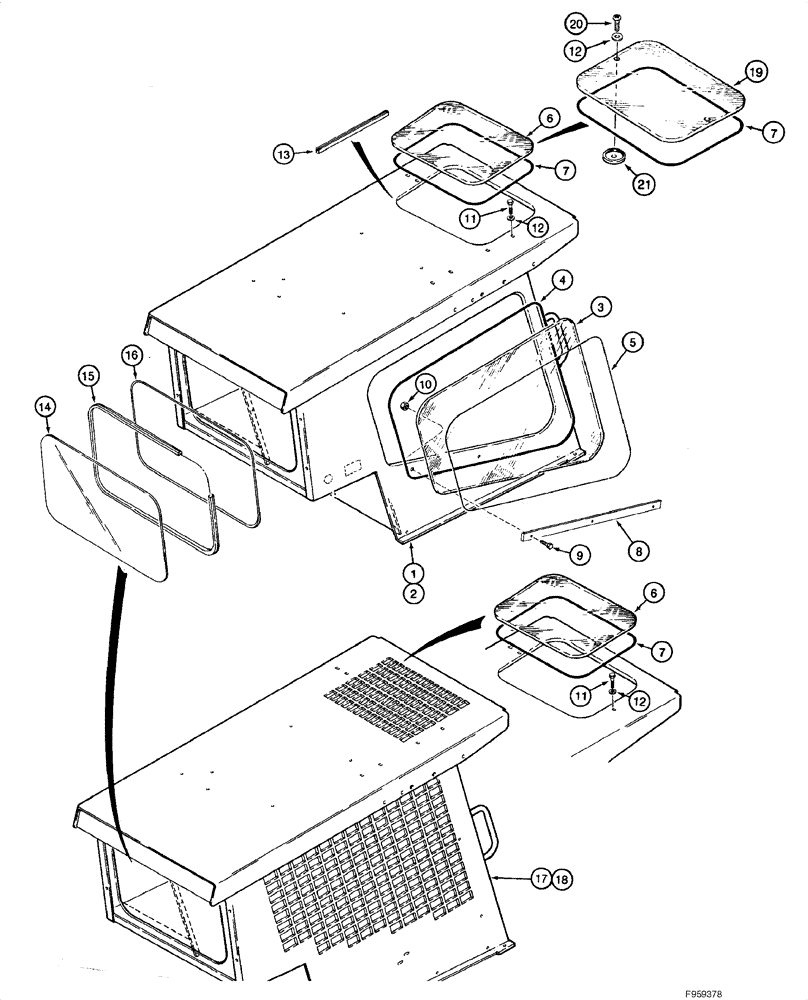

Запчасти Case IH 1840 (09-26) - ROPS AND FOPS/ROPS - GLAZED AND PUNCHED (EUROPE, JAF0098065 - ) (09) - CHASSIS/ATTACHMENTS

1

137966A1

FRAME

ROPS; Glazed; Replaces 105860A1

1шт.

2

H674965

CAB BODY

FOPS/ROPS; Glazed; Models With Dual Seat Bars

1шт.

2

133792A1

CAB

FOPS/ROPS; Glazed; Order From Machinery Price List; Models With Single Seat Bar; Not Illustrated

1шт.

3

107144A1

GLASS

Side

2шт.

4

E20370

RUBBER STRIP

Side Glass To Frame; Cut From RK692078

2шт.

5

E20371

STRIP

Filler; Cut From RK692079

2шт.

6

H439109

GLASS

Roof

1шт.

7

382086A1

SEALING STRIP

Window; Replaces H439254

1шт.

8

H439258

BAR

Stiffener; Side Frame; Glazed Frame

2шт.

9

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

6шт.

10

825-1405

NUT,M5, Cl 8

6шт.

11

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

FOPS/ROPS Frame

1шт.

12

103777A1

SEALING WASHER

FOPS/ROPS Frame

3шт.

13

D60180

STRIP

14-1/2 in (368 mm); Cut From F42827; FOPS/ROPS Frame

2шт.

14

107145A1

GLASS

Rear; If Used

1шт.

117737A1

WINDOW

Rear; For Service Parts, See Figure 09-28

1шт.

15

E20366

PROTECTION STRIP

Glass To Frame; Cut From RK692078

1шт.

16

E20367

FILLING STRIP

Glass Moulding; Cut From RK692079

1шт.

17

105859A1

CAB

ROPS; Punched; Models With Dual Seat Bars

1шт.

17

132853A1

FRAME ASSY

ROPS; Order From Machinery Price List; Punched; Models With Single Seat Bar; If Used; Not Illustrated

1шт.

18

H674959

CAB

FOPS/ROPS; Punched; Models With Dual Seat Bars

1шт.

18

133791A1

CAB

FOPS/ROPS; Punched; Order From Machinery Price List; Models With Single Seat Bar; Not Illustrated

1шт.

19

144266A1

GLASS

Roof; If Used

1шт.

20

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

21

E99641

CAP

End Cover

2шт.

108170A1

SET

Kit, FOPS; To Convert ROPS Frame To ROPS/FOPS

1шт.

137970A1

ROOF

Kit, FOPS; Glazed; Service

1шт.

RK692078

DOOR SEAL

Bulk

1шт.

RK692079

SEAL, GLASS

Bulk, 1176 in (29870 mm)

1шт.

F42827

TRIM,2946.4mm L

Bulk, 116 in (2946 mm)

1шт.
