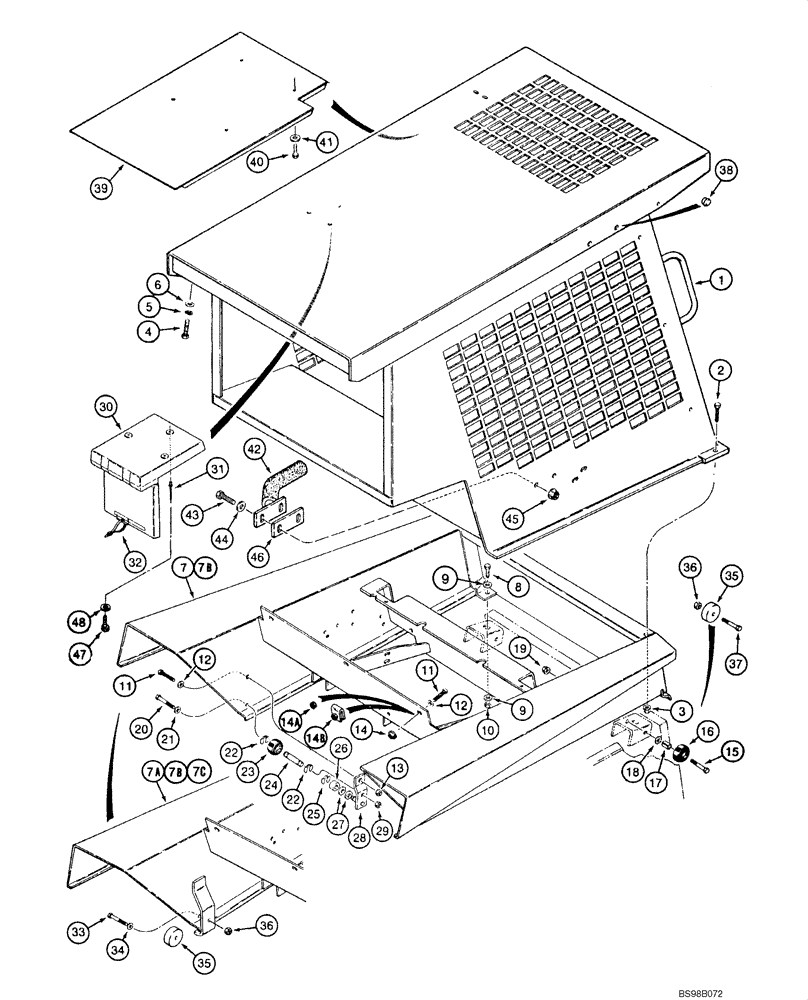

Запчасти Case IH 1840 (09-24) - ROPS (09) - CHASSIS/ATTACHMENTS

1

H673312

FRAME ASSY

ROPS; Punched; North American Models; Models With Dual Seat Bars; - JAF0132225; No Longer Available, Order 132853A1; For European Options, See Figure 09-25, 09-26

1шт.

1

132853A1

FRAME ASSY

ROPS; JAF0132225 - ; North American Models; Models With Single Seat Bar; Order From Machinery Price List

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

7

H673550

BODY

ROPS Frame; - JAF006758

1шт.

7a

H674356

FRAME

ROPS Frame; JAF006758 - JAF0130837; No Longer Available, Order 133420A1

1шт.

7b

133420A1

FRAME

ROPS Frame; JAF0130838 - JAF0150989

1шт.

7c

198510A2

FRAME

ROPS Frame; JAF0150990 -

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

10

232-4118

NUT,1/2"-13, GC

2шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1-5шт.

12

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

3-5шт.

13

230-4215

NUT,5/16"-18, GA

2шт.

14

H346650

NUT

5/16 in; Used With REF 7

3шт.

14a

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Used with Ref 7B

3шт.

14b

H346650

NUT

5/16 in; Used With REF 7A

3шт.

15

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

16

D124083

ROLLER BEARING

ROPS Support; Black Rubber

2шт.

17

D139837

SPACER

Roller

2шт.

18

H426775

WASHER

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

20

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

21

H426775

WASHER

2шт.

22

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

4шт.

23

D124529

SPACER,19.5mm ID x 35mm OD x 12mm Thk

Brake Shaft

2шт.

24

H435394

SPACER

Roller

2шт.

25

D143415

SNAP RING,0.50” ID, Klipring

2шт.

26

D124143

ROLLER

ROPS Support; Rear

2шт.

27

496-81021

WASHER,0.53" ID x 1" OD x 0.18" Thk

17/32 x 1 x 3/16 in

4шт.

28

H673073

BAR

Roller Mounting; Rear

2шт.

29

230-4215

NUT,5/16"-18, GA

2шт.

30

R46464

CASE

Operators Manual; Replaces R38893

1шт.

31

151-522

RIVET,Pop, 3/16" x .575"

3шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

35

H439107

ROLLER

44.8 OD x 22 mm; ROPS Support; White Plastic; Replaces H437701; No Longer Available, Order 237575A1

4шт.

35

237575A1

ROLL

44.8 OD x 19 mm; ROPS Support

4шт.

36

232-4116

NUT,3/8"-16, GC

4шт.

37

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

38

353-405

PLUG,Dome, .562" hole, Nylon

9/16 in; North American Models; Models Without D102001 Lifting Bracket

2шт.

39

H438906

PANEL

ROPS; Brown Models

1шт.

39

179278A3

INSULATOR

ROPS; Models With Gray Trim; Replaces 179278A1, 179278A2

1шт.

40

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

41

D136108

WASHER

4шт.

H674454

SET

Incl. 42 - 46, Instructions

1шт.

42

NSS

NOT SOLD SEPARAT

Armrest; Operator

2шт.

43

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 NC x 1-1/4 in

4шт.

44

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

46

H437790

LARGE PLATE

PLATE, LARGE Mounting

2шт.

47

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

48

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.
