Запчасти Case IH 1840 (09-22) - DELUXE OPERATORS SEAT, CUSHIONS AND SHELL (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

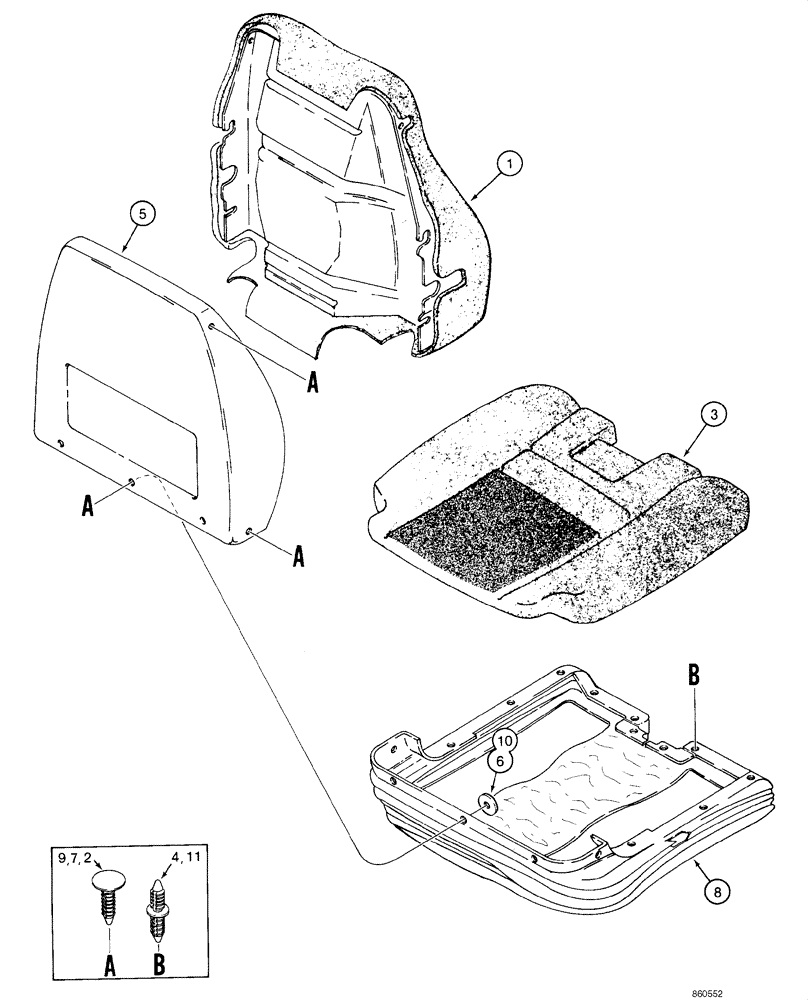

Схема запчастей Case IH 1840 - (09-22) - DELUXE OPERATORS SEAT, CUSHIONS AND SHELL (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS
5
3
1
4, 11
10
9, 7, 2
6
8

Артикул

Название

Примечание

Количество

178764A1

SEAT

Operators; Deluxe; Gray Vinyl; Incl. 1 - 11; Also Incl. Parts On Figure 09-22, 09-22A

1шт.

D129790

SEAT

Operators; Deluxe; Brown Vinyl; Incl. 1 - 11; Also Incl. Parts On Figure 09-22, 09-22A

1шт.

308307A1

SEAT

Operators; Deluxe; Gray; With Operator Presence Switch; Not Illustrated; See Figure 09-23 - 09-23B; Models With Emissions Certifed Engine

1шт.

400681A1

SEAT

Wheat; Replaces 308307A1; See Figure 09-23 - 09-23B

1шт.

N13724

SET OF PARTS

Backrest Cushion; Brown; Incl. 1, 2, Instructions

1шт.

1

NSS

NOT SOLD SEPARAT

Cushion; Backrest

1шт.

2

N13703

CLIP,ELECTRICAL

Backrest Shell

2шт.

N13723

SET OF PARTS

Brown; Incl. 3, 4; Incl. Instructions

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion; Seat

1шт.

4

N13712

CLIP,ELECTRICAL

12шт.

N13729

SET OF PARTS

Shell; Backrest; Incl. 5 - 7, Instructions

1шт.

5

NSS

NOT SOLD SEPARAT

Shell; Backrest

1шт.

6

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

5шт.

7

N13703

CLIP,ELECTRICAL

Backrest Shell

7шт.

N13727

SET

Rubber Cover; Lower Seat; Incl. 8 - 11, Instructions

1шт.

8

NSS

NOT SOLD SEPARAT

Cover; Lower Seat

1шт.

9

N13703

CLIP,ELECTRICAL

Backrest Shell

5шт.

10

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

5шт.

11

N13712

CLIP,ELECTRICAL

Incl. 242306A2

12шт.

242306A2

SWITCH

Operator Presence; Not Illustrated

1шт.

302137A2

HARNESS

Seat; Operator Presence Switch; Not Illustrated; Models With Emissions Certified

1шт.

Выбрано товаров: 21
