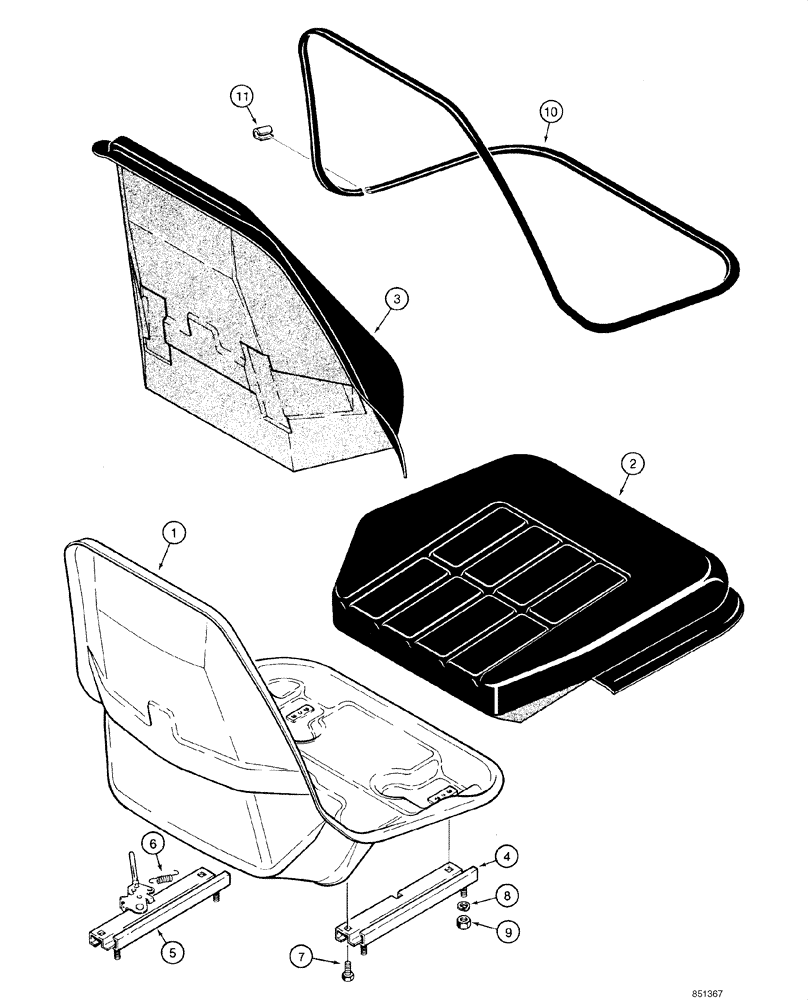

Запчасти Case IH 1840 (09-21) - STANDARD OPERATORS SEAT (EUROPE JAF0098065 - , NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

178763A1

SEAT

Operators; Gray Vinyl; Molded Shell; For Mounting, See Figure 09-16

1шт.

179330A1

SEAT

Operators; Deluxe; With Slide; Black Vinyl

1шт.

D124515

SEAT ASSY.

Operators; Brown Vinyl; Molded Shell; Incl. 1 - 11; For Mounting, See Figure 09-16

1шт.

1

NSS

NOT SOLD SEPARAT

Shell; Seat

1шт.

2

N8462

CUSHION

Seat Cushion; Incl. N7802; Brown Vinyl

1шт.

2

190875A1

CUSHION, SEAT

Seat Cushion; Incl. N7802; Gray Vinyl

1шт.

3

N8461

CUSHION

Backrest Cushion; Incl. N7802; Brown Vinyl

1шт.

3

190874A1

BACKREST COVER

Backrest Cushion; Incl. N7802; Gray Vinyl

1шт.

4

N13607

ADJUSTER

Seat; Right Hand

1шт.

N13606

ADJUSTER

Seat; Left Hand; Adjustment Side; Incl. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Slide; Seat

1шт.

6

D56889

SPRING

Adjustment Lever

1шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16 NC x 1/2 in; If Used

4шт.

7

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

If used

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

N14614

GASKET

Trim; Edging Strip; Cushion To Shell

1шт.

11

NSS

NOT SOLD SEPARAT

Clip; Order N7802, See Below

1шт.

308306A1

SEAT

Gray Vinyl; Molded Shell; With Operator Presence Switch; Not Illustrated; Used With 302137A2 Harness; Component Parts Not Available At Time Of Printing; Models With Emissions Certified Engine

1шт.

242306A2

SWITCH

Operator Presence; Not Illustrated

1шт.

302137A2

HARNESS

Seat; Operator Presence Switch; Not Illustrated; Models With Emissions Certified Engine

1шт.

345-44

ADHESIVE

3M No. 74, 23 oz; Spray Can; Not Illustrated; Purchase Locally

1шт.

N7802

CLIP

Kit; Incl. REF 11; Also Incl. (6) Narrow Clips

1шт.
