Запчасти Case IH 1840 (09-18) - SEAT, MOUNTING (DELUXE) - SEAT BELTS (MODELS WITHOUT EMISSIONS CERTIFIED ENGINE) (09) - CHASSIS/ATTACHMENTS

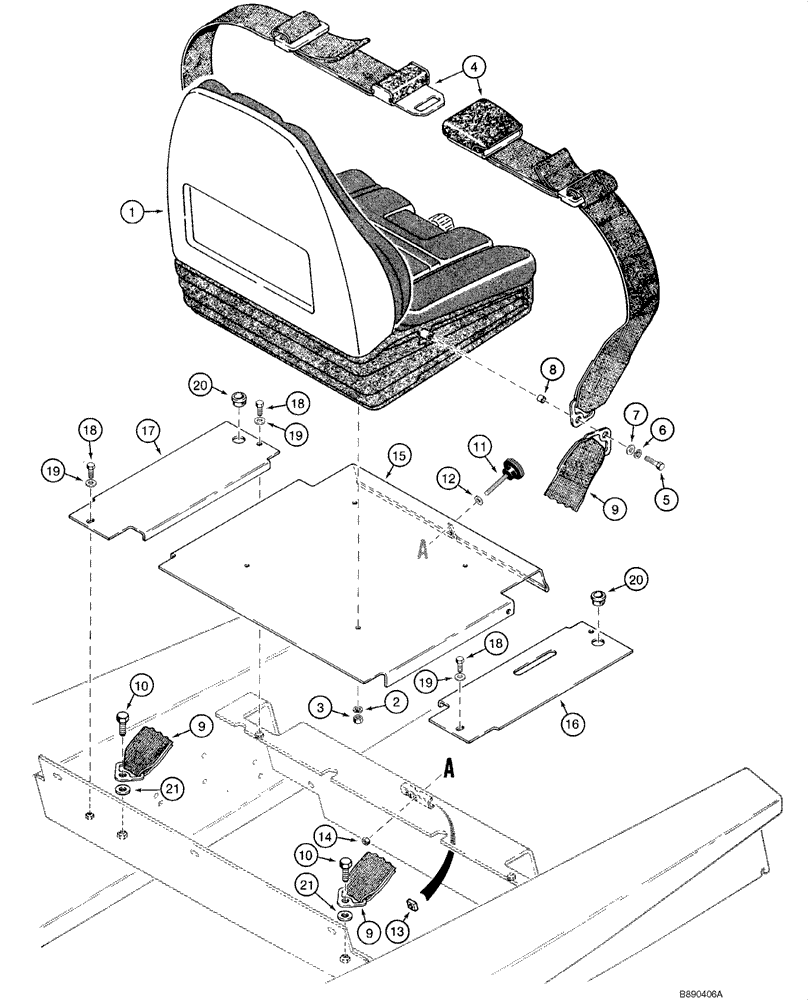

Схема запчастей Case IH 1840 - (09-18) - SEAT, MOUNTING (DELUXE) - SEAT BELTS (MODELS WITHOUT EMISSIONS CERTIFIED ENGINE) (09) - CHASSIS/ATTACHMENTS
9
19
13
9
20
18
10
10
16
5
14
4
2
7
15
19
9
6
11
20
17
1
8
18
3
18
19
21
12
21

Артикул

Название

Примечание

Количество

1

D129790

SEAT

Operators; Deluxe; Brown Vinyl; See Figure 09-22, 09-22A

1шт.

1

178764A1

SEAT

Operators; Deluxe; Gray Vinyl; See Figure 09-22, 09-22A

1шт.

2

492-11031

LOCK WASHER,5/16"

4шт.

3

425-105

NUT,5/16"-18, G5

4шт.

4

H438265

SAFETY BELT

Non-retractable

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

8

D34242

SPACER

Seat, Belt Mounting

2шт.

9

D127382

SAFETY BELT

238 mm (9-3/8 in);, Serial Range: Support-Seat

2шт.

10

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

11

D133068

KNOB

Seat Adjusting

1шт.

12

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

1шт.

13

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

14

232-4116

NUT,3/8"-16, GC

1шт.

15

H435910

PLATE

Seat Mounting; No Longer Used, Order 295896A1, See Figure 09-19, REF 7

1шт.

16

H435911

PLATE

Right Hand Closure

1шт.

16

121042A1

COVER

Right Hand Closure

1шт.

17

H435912

PLATE

Left Hand Closure; - JAF0100497; Used On Models With Dual Seat Bar

1шт.

17

121043A1

COVER

Left Hand Closure; Used On Models With Dual Seat Bar; JAF0100497 -

1шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

19

H426775

WASHER

4шт.

20

F64486

GROMMET

3/4 in ID; Closure Panels; Used On Models With Dual Seat Bar

2шт.

21

495-21069

WASHER,5/8"

11/16 x 1-3/4 x 9/64 in

2шт.

22

133620A1

COVER

Right Hand Closure; Used On Models With Single Seat Bar; Not Illustrated

1шт.

23

133621A1

COVER

Left Hand Closure; Used On Models With Single Seat Bar; Not Illustrated

1шт.

Выбрано товаров: 26
